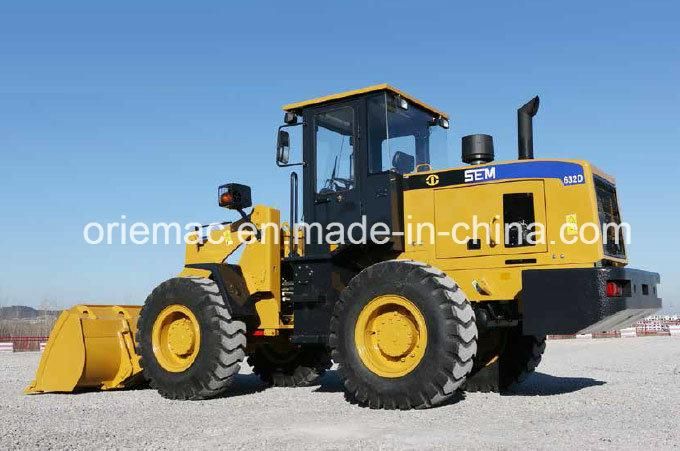

Sem 632D Wheel Loader 3ton Sem632D Caterpillar Technology Loader

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：SEM632D
  • Type：Small Loader
  • Operating Weight：10000kg
  • Bucket Capacity：1.8cbm
  • Engine：Deutz
  • Wheelbase：2630mm
  • Transport Package：Nude Package
  • Specification：3ton
  • Trademark：SEM
  • Origin：China
  • HS Code：84295100
  • Production Capacity：300units,Month

Description

Rated Load(kg)3000Operating Weight(kg)9700Bucket Capacity(m³)1.53-2.50Wheelbase(mm)2630Overall Dimensions (mm)(L*W*H)7162*2354*3051Turning Radius(mm)5869Max. Breakout Force(KN)120Max. Tractive  Force(KN)97


TransmissionmodelTR100Transmission typefixed shaft power shift transmissiongear shiftF4/R2torque converter typeunipolar three element centripetal

Drive axleMain  drive typesingle screw speed reducerwheel reduction typeprimary planetary reducerswing angle(°)12


Diesel enginemodelWP6G125E333rated power(KW)92rated speed(r/min)2000displacement(L)6.7


Hydraulic systemboom lift time(s)4.6Hydraulic cycle time (Total)(s)8.2working pressure(MPa)16.5

Brake system Service BrakeAir assisted oil disc type four wheel brakeParking Brake internal expansion


TireModel17.5-25typelow pressure wide base diagonal tirelayer12pattern typeL3
