• Model NO.：BMS
• Trademark：hanjiu
• Origin：China
• HS Code：841229100
• Production Capacity：500000

Main Specifications:

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6



FlangeE22-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3BMSE44-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3F66-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6W4-Ø13.5 Wheel-flange Ø160,pilot Ø125×8E2B2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4SP4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3

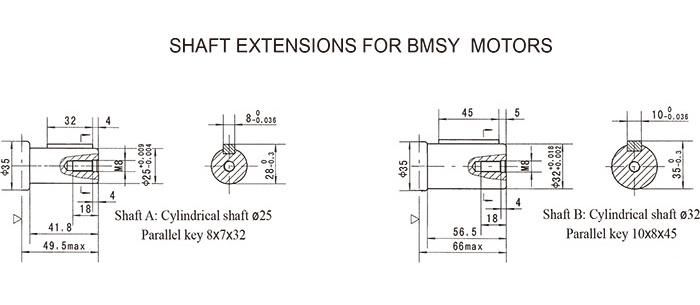

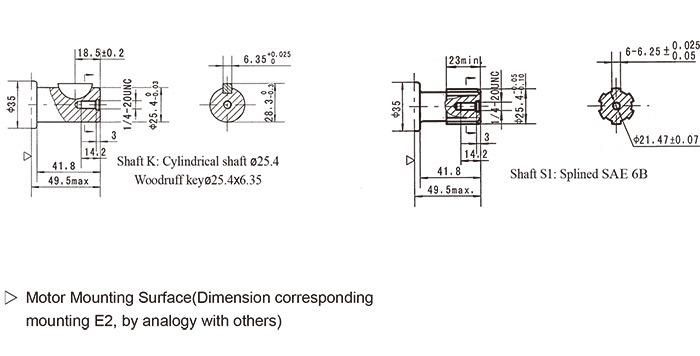

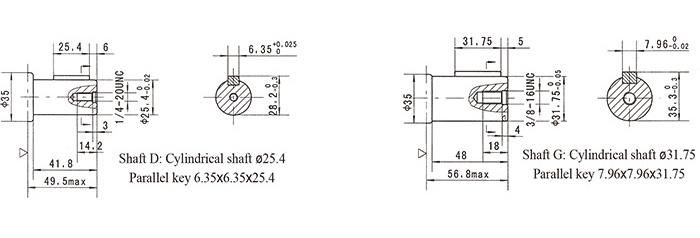

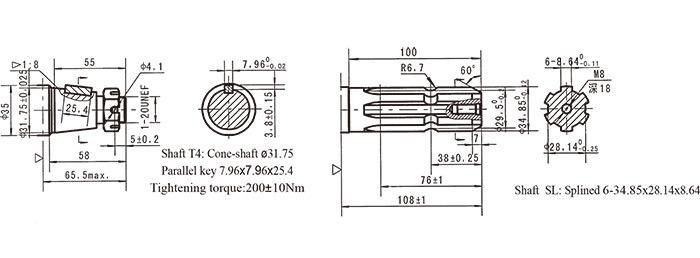

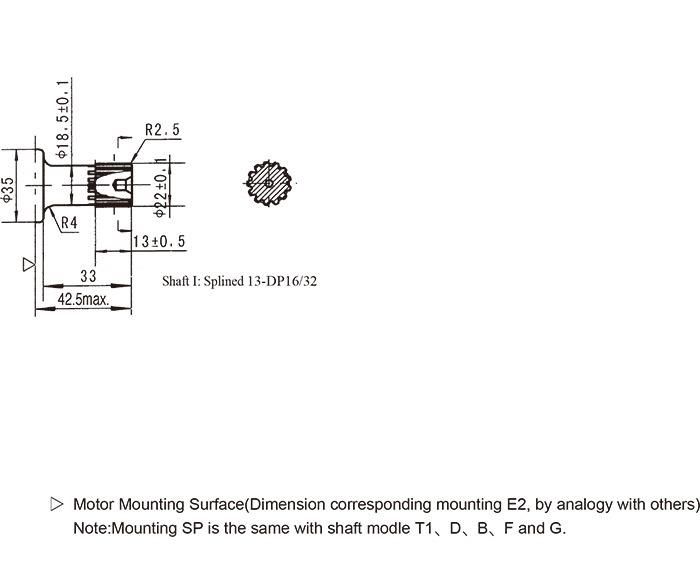

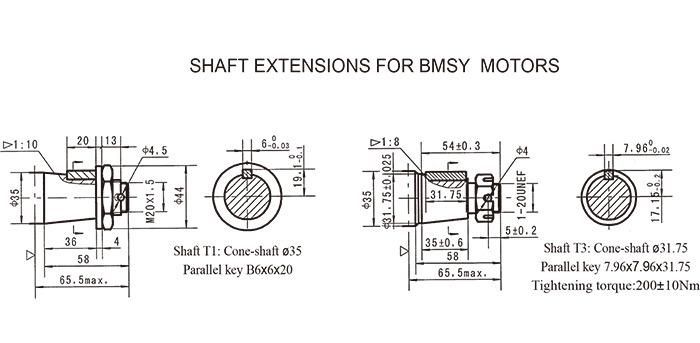

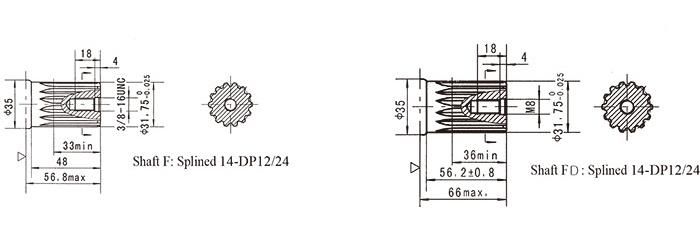

Output ShaftAShaft Ø25 , parallel key 8×7×32BMSBShaft Ø32 , parallel key 10×8×45DShaft Ø25.4 , parallel key6.35×6.35×25.4GShaft Ø31.75,parallel key 7.96×7.96×31.75FShaft Ø31.75,splined tooth 14-DP12/24FDLong Shaft Ø31.75,splined tooth 14-DP12/24SLshaft Ø34.85,Splined key 6-34.85×28.14×8.64T1Cone-shaft Ø35 ,parallel key B6×6×20T3Cone-shaftØ31.75,parallel key 7.96×7.96×31.75S1Shaft Ø25.4 ,splined tooth SAE 6BISub-shaft Ø22,splined tooth 13-DP16/32





3. Application



Gerotor Hydraulic Motor BMS Series Suitable for applications such as



• Conveyors



• Metal working machines

• Road building machines

• Mining machinery

• Food industries

• Agricultural machines

• Special vehicles



Shijiazhuang Hanjiu Technology Co., Ltd. is a professional manufacturer of BM series cycloidal hydraulic motors and BZZ steering gears. Our factory has dozens of highly qualified and professional engineers and technicians, and introduced many advanced machines in 2010. The production facilities are large-scale factories in northern China and produce more than 300,000 units each year.
  Our factory specializes in designing and producing any type of motor and steering gear required by our customers, from large to small, from low to high displacement. And can replace Danfoss, Eaton, M + S series models. Products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery and other fields.
  My factory takes honesty first and quality first as its tenet. From the employees' posts to the raw materials, to the factory, from parts processing and assembly advice to product leaving, there is a relatively complete product quality system. And passed CE certification. Our factory is committed to establishing an internationally renowned brand and looks forward to long-term cooperation with more demanders of hydraulic products.
