• Model NO.：SABM
• Structure：Spiral Type
• Productivity：150m²,h
• Feeding Height：1400mm
• Vibrating Amplitude：1.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Orange
• After-Sales Service Provided：Engineers Available
• Warranty：One Year
• Application：Concrete Placing
• Diesel Model：Cummins
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474390000
• Production Capacity：10000PCS,Month

Model No.HG32DHG32Radius of placing31.8 m31.7 mHydraulic folded arms1st section : 8.95m
2nd section: 7.6m
3rd section: 7.65m
4th section:7.6m1st section : 14.5m
2nd section: 9.2m
3rd section: 8.0m
 Boom slewing range1st section :-4.2°~+82.5°
2nd section: 0°~180°
3rd section: 0°~180°
4th section : 0°~180°1st section : -4.2°~+82.5°
2nd section: 0°~180°
3rd section: 0°~180°
 Slewing range365°Power of motor22kW15kWPressure of hydraulic system28Mpa28MpaType of hydraulic oilESSO NUTO H46/48Mode of operation
 1.cable remote control
2.radio remote controlWind speedPlacing: ≤60 km/h
Climbing: ≤28 km/hClimbingWorking Press: 25MPa
Climbing Speed : 0.56 m/minDelivery Pipe DimensionΦ133mm x 4.5(thickness)Working temperature0~48ºCWorking Power380V/ 50HZ

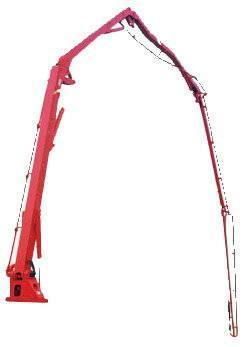

2 Features of Mobile Hydraulic Concrete Distributor

1 Compact structure, easily moved, highly movable and flexible
2 Three foldable arms,360 degree swing, without confined placing areas
3 Without being fixed while working
4 Easy operation and low cost maintenance
5 Fully hydraulic system, highly stable and reliable
6 Separate modular parts for easy and fast installation with light weight

3 Technical Parameters of Mobile Hydraulic Concrete DistributorITEMUNITMODELSAPLB13SAPLB15SAPLB17SAPLB18Max. placing radiusm13151718Machine heightm3.92.63.23.75Slewing range°360Slewing speedr/min0.3-0.8Motor powerKw445.55.5/Hydraulic system pressureMPa24Supporting legs spanm3.15×3.154×44.6×4.65×51st ArmLengthmm3700600066607660Articulation°-2-84.40-70-4-65-4-652nd ArmLengthmm4520500057305730Articulation°0-1803rd ArmLengthmm4780400046104610Articulation°0-180Length of end hosem5"×3Inner diameter of delivery pipelinemmDN125Counter weight frame slewing radiusmm2720281031503930Working Ambient TemperatureºC-15-50Cleaning mode for delivery pipeline-Water Cleaning / Dry CleaningWeightMachine weightKg2700323050006700Counter weightKg2×9002×11002×11002×1100Driving mode-Completely Hydraulic SystemControl mode-Manual / Radio Remote Control
Benefits & Features
1 One button stabilization technology
The press of a button brings the boom to a smooth and immediate stop.
2 Smart boom system
Advanced technology to increase overall efficiency and reduce operator fatigue.
3 Boom anti-vibration technology
Minimizes chatter during pumping, to allow steady delivery.
4 Swing control technology
Rotary braking delivers precise swing operations.
5 Highly wear-resistant parts
Improved service life and reduced operating cost.
6 Protection technology
Features such as boom overload protection and hydraulic oil level monitoring are used to prevent damage.
7 Energy-saving technology
