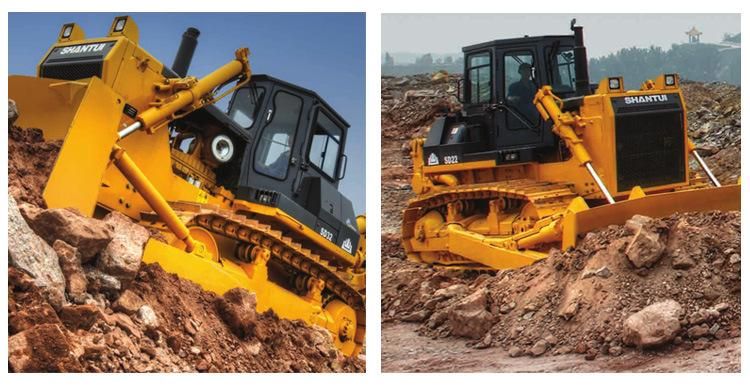

80HP 130HP 16HP 220HP 230HP 320HP 420HP Bulldozer
Shanghai Super-Above Industry Holdings Co., Ltd.- Transmission：Power Transmission
- Walking Mode：Crawler
Base Info
- Model NO.：SABD5
- Load and Unload Method：Rotary
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Rated Power：235kw,2000rpm
- Piston Displacement：14.01L
- Width of Track Shoes：560mm
- Pitch：228.6mm
- Operating Weight：4520 Kg

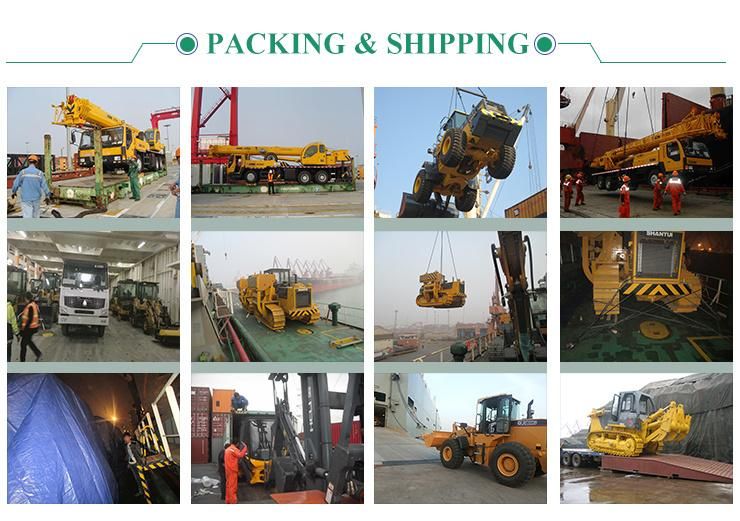

- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8429119000
- Production Capacity：10000PC,Year
Description
Power transmitting systemTorque converter 3-element, 1 stage, 1 phase Transmission Planetary gear,multi-disc clutch,power shift,forced lubrication Main drive Spiral bevel gear, splash lubrication,single-stage speed reduction Steering clutch Wet, Multi-disc, spring loaded, hydraulic separated,hydraulic control Steering brake Wet, floating band type, foot brake with hydraulic booster Final drive 2-stage speed reduction of spur gear, splash lubrication blade type Straight-tilt Angle Semi-U blade Dozing capacity(m3) 10 6 11.9 Blade height x width (mm) 1590 x 4310 1140 x 5000 1710 x 4130 Max. Drop below ground(mm) 560 630 560 Max. Tilt adjustment(mm) 735 500 1000 Operating weight(kg) 4520 4932 4924 Efficiency(m3/h) 580 350 690 Gear 1st 2nd 3rd Foward(km/h) 0~3.6 0~6.6 0~11.5 Reverse(km/h) 0~4.4 0~7.8 0~13.5
FEATURES & APPLICATION
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal operations.
The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the rapid and
flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions for roads,
farms, water conservancy projects, municipal projects, and energy projects.
