• Model NO.：SABP
• Structure：Spiral Type
• Productivity：180m²,h
• Feeding Height：1400mm
• Vibrating Amplitude：2.4mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Solenoid Directional Control Valve：Germany Rexrot
• Balance Valve：Italian Oil Control
• Control Type：Cable Remote Control
• After-Sales Service Provided：Engineers Available
• Transport Package：Sea Worthy Packing
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474390000
• Production Capacity：10000PC,Year

ModelHG32Delivery pipe dimension (outside diameter × thickness) (mm × mm)Φ133×4Delivery hose dimension (inside diameter × length) (mm)5" ×3000Radius of placing boom (m)32Stationary height (to the joint between the end of the boom and Swivel table) (m)23.97Four hydraulic foldable arms
 1st section arm14.5m2nd section arm9.2m 3rd section arm8.0m4th section arm/Boom articulation
 1st section arm-4.2°~+82.5°2nd section arm0°~180° 3rd section arm0°~180°4th section arm0°~180°Slewing range  (°)360Power of motor  (kW)15Pressure of hydraulic system  (MPa)28Type of hydraulic oil ESSO NUTO H46Interval of climbing frame (m)Climbing3.0~4.2 Placing concrete6.0~8.4 Resting Mode of operation
 1. cable remote control
2. radio remote control
 Power380V/50Hzwind speedPlacing concrete≤60 km/hclimbing≤28 km/hworking temperature0~48

Lightweight  Industrial manual concrete pump

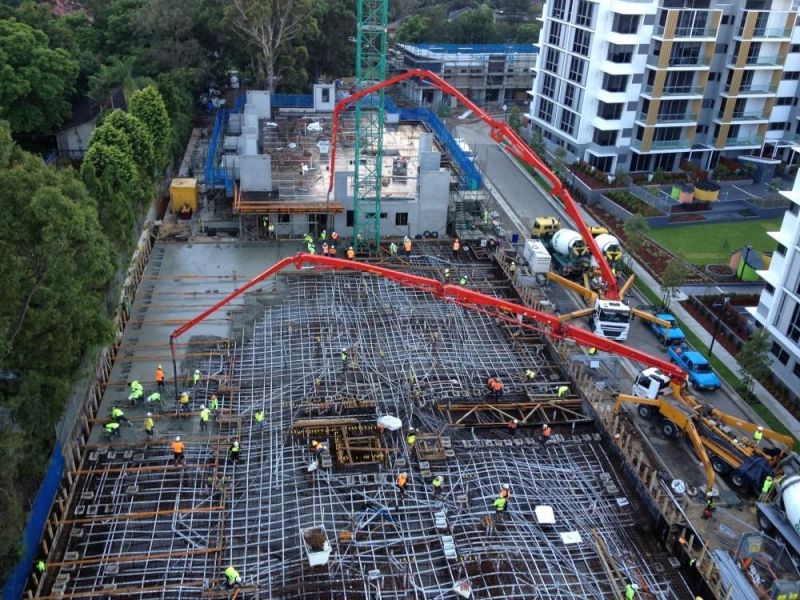

1 Introduction of SAPLB Hydraulic Mobile Hydraulic Concrete Distributor
SAPLB mobile hydraulic concrete placing booms mainly include 13m, 15m, 17m and 18m driven by fully hydraulic system. It does not need to be
fixed while working and could be moved to another place by tower crane on site, highly movable and flexible. It is very suitable and widely used for
the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites
without being influenced by the size and shape of floors.

2 Features of Mobile Hydraulic Concrete Distributor
1 Compact structure, easily moved, highly movable and flexible
2 Three foldable arms,360 degree swing, without confined placing areas
3 Without being fixed while working
4 Easy operation and low cost maintenance
5 Fully hydraulic system, highly stable and reliable
6 Separate modular parts for easy and fast installation with light weight

3 Technical Parameters of Mobile Hydraulic Concrete DistributorITEMUNITMODELSAPLB13SAPLB15SAPLB17SAPLB18Max. placing radiusm13151718Machine heightm3.92.63.23.75Slewing range°360Slewing speedr/min0.3-0.8Motor powerKw445.55.5/Hydraulic system pressureMPa24Supporting legs spanm3.15×3.154×44.6×4.65×51st ArmLengthmm3700600066607660Articulation°-2-84.40-70-4-65-4-652nd ArmLengthmm4520500057305730Articulation°0-1803rd ArmLengthmm4780400046104610Articulation°0-180Length of end hosem5"×3Inner diameter of delivery pipelinemmDN125Counter weight frame slewing radiusmm2720281031503930Working Ambient TemperatureºC-15-50Cleaning mode for delivery pipeline-Water Cleaning / Dry CleaningWeightMachine weightKg2700323050006700Counter weightKg2×9002×11002×11002×1100Driving mode-Completely Hydraulic SystemControl mode-Manual / Radio Remote Control
