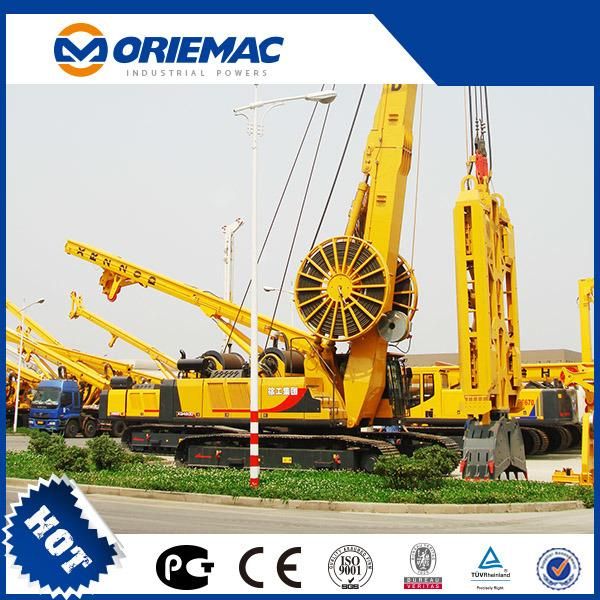

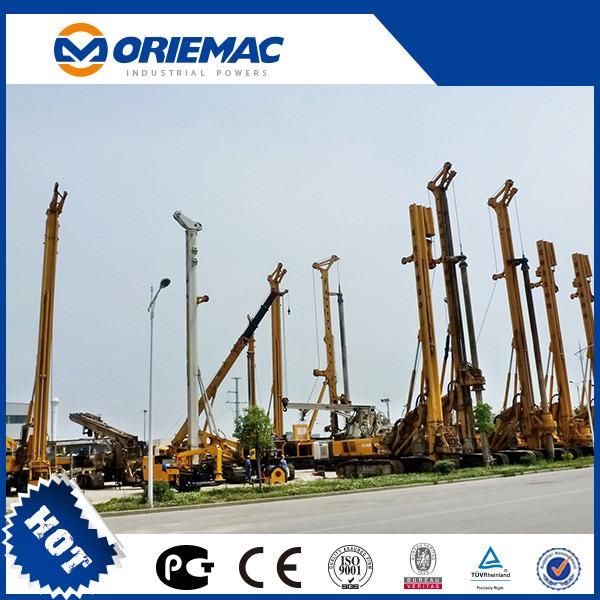

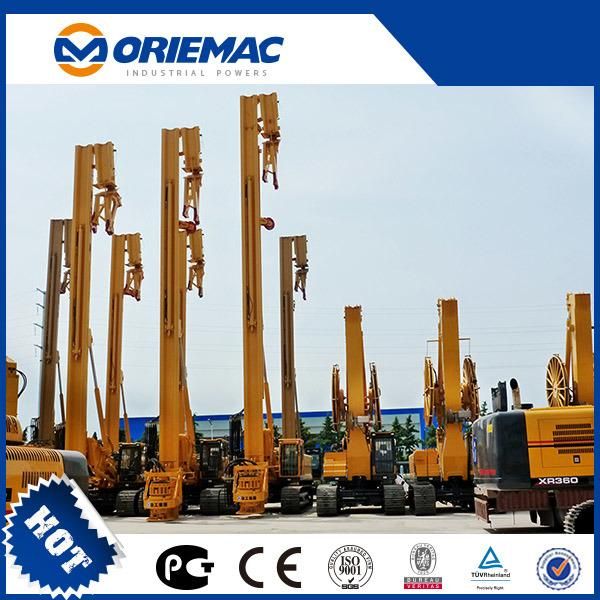

Oriemac Brand New Xr120d Rotary Drilling Rig
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：112
- Noise：Without Noise
Base Info
- Model NO.：XR120D
- Certification：CE, ISO 9001:2008
- Condition：New
- Transport Package：Nude Package, Suitable for Shipment
- Specification：5600 (L) x 2300 (W) x 1400(H)
- Trademark：Oriemac
- Origin：Jiangsu
- HS Code：84306919
- Production Capacity：1000
Description
SPECIFICATIONS FOR XR120D ROTARY DRILLING RIG MACHINE
EngineEngine Brand Engine Type B5.9-C Rated Power kW 112 Rotary Drive Max output torque kN . m 120 Rotary speed r/min 6 ~ 30 Max Drilling Diameter mm 1300 Max Drilling Depth m 44 Pull-Down Cylinder Max pull-down piston push kN 120 Max pull-down piston pull kN 120 Max pull-down piston stroke m 3.5 Main Winch Max Pulling force kN 100 Max line speed m/min 70 Auxiliary Winch Max Pulling force kN 45 Max line speed m/min 70 Mast Rake Side ± 30 Forwards ± 80 Backwards ± 150 Undercarrige Max traveling speed km/h 3.2 Max grade ability % 40 Min Clearance mm 450 Track shoe width mm 700 Distance between tracks mm 3400 Hydraulic System Working pressure Mpa 32 Overall Drilling Weight t 40 Dimension Working condition mm 7175 x 3400 x 16800 Transportation condition mm 12580 x 3400 x 3360
