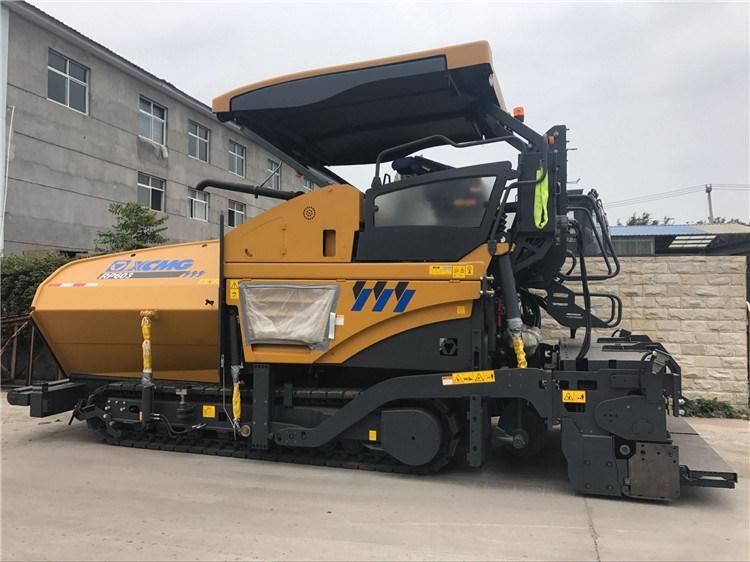

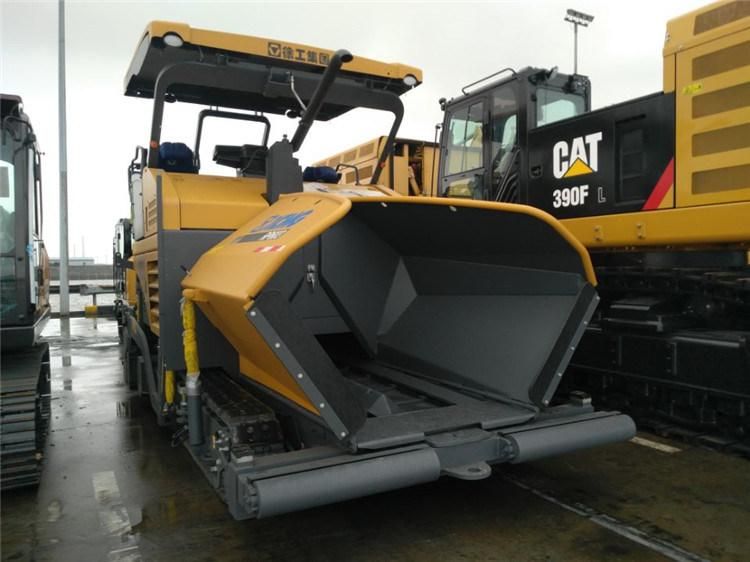

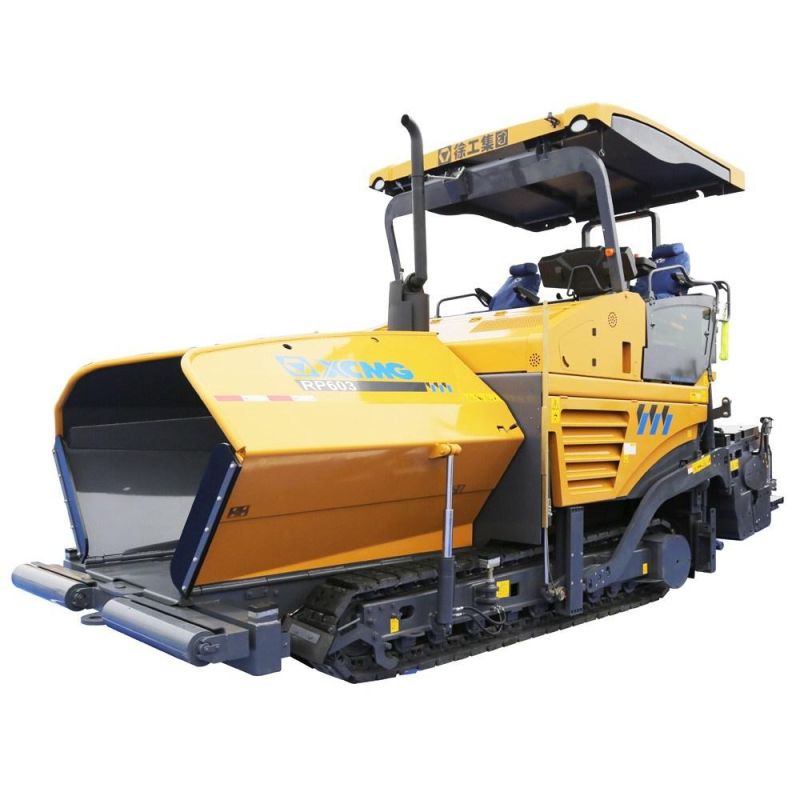

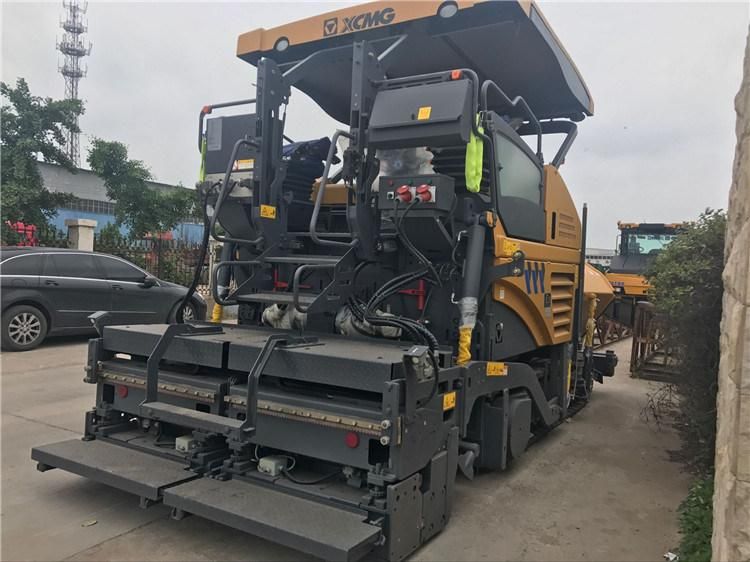

6m Width Asphalt Concrete Slip Roller Road Paver RP603

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Type：Paver
Object：Asphalt Concrete Pavement
Moving Type：Semi-Fixed
Mixing Method：Continuous Drum
Automatic Grade：Semi-Automatic
Product Capacity：<40t,h

Base Info

Model NO.：RP603
Certification：ISO9001: 2000, CE
Condition：New
Basic Paving Width：2.5m
Max Paving Width：6.0m
Max Paving Thickness：0-20m,Min
Travel Speed：0-3.0km,H
Theoretical Productivity Capacity：400t,H
Hopper Capacity：14t
Gradeability：20%
Machine Weight：18.5-19.2t
Overall Dimensions：6680*2500*4000
Transport Package：Nude
Specification：128kw
Origin：Jiangsu China
HS Code：84292090
Production Capacity：1000 Units Per Month

Description

ItemUnitRP603Basic paving widthm2.5Max. paving widthm6Max. paving thicknessmm300Paving speedm/min0~20Travel speedkm/h0~3.0Theoretical productivityt/h400Hopper capacityt13Gradeability%20Pavement evennessmm/3m3Cross slope error%±0.02Crown adjustment range%0~3Diesel engine model SC7H175Diesel engine powerkw128Diesel engine speedr/min2000Diesel oil tank capacityL290Overall weightt18.5-19.2Dimensionmm6680×2500×4000Vibration frequencyHz/Screed heating mode Electrical heatingMaterial level control mode Automatic Control by Ultrasonic SensorAutomatic Leveling Control Simulation controlItemUnitScreed modelE475(RP603)TypeVibration, electrical heatingStretch modeHydraulic stretchWidth range2.5-6.0mVibrating tamper rotate speed0-1500r/minVibration frequency4mm 6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603

6m Width Asphalt Concrete Slip Roller Road Paver RP603
