- Model NO.：424B2
- Type：Small Loader
- Transport Package：Nude Package
- Specification：8000* 2200* 3350mm
- Trademark：CAT
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：5000PCS,Year
Basic Info.
Model NO.
424B2
Type
Small Loader
Transport Package
Nude Package
Specification
8000* 2200* 3350mm
Trademark
CAT
Origin
Shandong, China
HS Code
84295100
Production Capacity
5000PCS/Year
Product Description
424B2 Caterpillar Backhoe Loader Price for SaleProduct DescriptionCaterpillar has a well proven history in the construction equipment industry and has been producing the highest quality machines for 90 years, making progress possible and driving positive and sustainable change on every continent. For over 35 years, from the A Series to the new F2 Series we have produced Backhoe Loaders that are designed with the operator in mind, providing reliability, power and a quality operator environment. The Cat 424B2 Backhoe Loader continues this tradition, providing a machine to help you grow your business.
Technical Parameters| Power - Net | 66.0 kW |
| Net Power - 2,200 rpm - ISO 9249 | 66.0 kW |
| Note (2) | No derating required up to 2286 m altitude. Auto derate protects hydraulic and transmission systems. |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Displacement | 4.4 l |
| Torque Rise - 1,200 rpm - Net | 38% |
| Model | Cat® C4.4 Mechanical Turbocharged and Inter-Cooled |
| Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 68.5 kW |
| Maximum Torque - 1,400 rpm | 394.0 N·m |
| Emissions | Bharat Stage III emission standards. |
| Bore | 105.0 mm |
| Stroke | 127.0 mm |
WEIGHTS
| Operating Weight - Nominal | 7990.0 kg |
| Operating Weight - Maximum | 8760.0 kg |
WEIGHTS*
| Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 0.0 kg |
| Operating Weight - ROPS Capacity - Maximum | 8760.0 kg |
| Note | *Machine Configuration - standard engine, standard stick hoe, standard cab with A/C, AWD standard shift transmission, 0.96 m3 MP loader bucket, 610 mm standard duty hoe bucket, 12.5/80-18 and 16.9-28 tires, no counterweight, 80 kg operator and full fuel tank. |
| Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 115.0 kg |
| Counterweights - Medium | 240.0 kg |
| Counterweights - Base | 115.0 kg |
| Operating Weight - Estimated | 7990.0 kg |
HYDRAULIC SYSTEM
| Maximum Pump Capacity | 132.0 l/min |
| System Pressure - Backhoe | 250.0 bar |
| System Pressure - Loader | 250.0 bar |
| Type | Closed Center |
| Pump Type | Variable Flow, Axial Piston |
STEERING
| AWD Cylinder, One (1) Double Acting - Stroke | 120.0 mm |
| Turning Circle - AWD (inner wheel not braked) - Outside Front Wheels | 8.18 m |
| AWD Cylinder, One (1) Double Acting - Bore | 65.0 mm |
| Turning Circle - AWD (inner wheel not braked) - Outside Widest Loader Bucket | 10.97 m |
| AWD Cylinder, One (1) Double Acting - Rod Diameter | 36.0 mm |
| Type | Front Wheel |
| Power Steering | Hydrostatic |
SERVICE REFILL CAPACITIES
| Rear Axle | 14.5 l |
| Hydraulic Tank | 40.0 l |
| Transmission - Power Shuttle - AWD | 15.0 l |
| Engine Oil - With Filter | 8.8 l |
| Cooling System | 22.0 l |
| Hydraulic System | 106.0 l |
| Fuel Tank | 160.0 l |
| Rear Axle - Planetaries | 1.5 l |
| Front Axle (AWD) | 11.0 l |
| Front Axle (AWD) - Planetaries | 0.7 l |
TRANSMISSION
| Power Shuttle Transmission - Forward 3rd | 20.7 km/h |
| Power Shuttle Transmission - Reverse 2nd | 9.0 km/h |
| Power Shuttle Transmission - Reverse 3rd | 20.7 km/h |
| Note | Travel speeds of Four Wheel Drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
| Power Shuttle Transmission - Forward 1st | 5.5 km/h |
| Power Shuttle Transmission - Reverse 1st | 5.5 km/h |
| Power Shuttle Transmission - Forward 2nd | 9.0 km/h |
| Power Shuttle Transmission - Forward 4th | 40.0 km/h |
| Power Shuttle Transmission - Reverse 4th | 40.0 km/h |
AXLES - ALL WHEEL DRIVE (AWD)
| Features (1) | Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives. |
| Features (2) | AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance. |
| Features (3) | AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double-acting steering cylinder with 52° steering angle for increased maneuverability. |
BRAKES
| Type | Fully enclosed boosted, hydraulic, multiple discs. |
| Features (3) | Self-adjusting. |
| Features (1) | Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. |
| Features (2) | Completely enclosed and sealed. |
| Features (4) | Dual foot-operated boosted brake pedals can be interlocked for roading. |
| Features (5) | Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console. |
| Features (6) | Meets ISO 3450:2011 and CMVR requirements. |
AXLE RATINGS
| Rear Axle - Static | 19120.0 kg |
| Front Axle (AWD) - Dynamic | 9177.0 kg |
| Front Axle (AWD) - Static | 22943.0 kg |
| Rear Axle - Dynamic | 7648.0 kg |
LOADER BUCKET DIMENSIONS AND PERFORMANCE: GP - 1.05 M3
| Dump Height at Maximum Angle | 2733.0 mm |
| Width | 2262.0 mm |
| Bucket Weight - Excluding Teeth and Forks | 428.0 kg |
| Maximum Bucket Rollback at Ground Level | 38° |
| Dump Angle at Full Height | 46° |
| Lift Capacity at Maximum Height | 3610.0 kg |
| Maximum Hinge Pin Height | 3447.0 mm |
| Maximum Operating Height | 4368.0 mm |
| Tilt Breakout Force | 53.92 kN |
| Tipping Load - Breakout Point | 7012.0 kg |
| Grill to Bucket Cutting Edge, Carry Position | 1482.0 mm |
| Capacity | 1.05 m³ |
| Dump Reach at Maximum Angle | 900.0 mm |
| Digging Depth | 88.0 mm |
| Maximum Grading Angle | 113º |
| Lift Breakout Force | 54.46 kN |
MACHINE DIMENSIONS - MP - 0.96 M3
| Height - Top of Cab/Canopy | 2869.0 mm |
| Overall Length - In Roading Position | 5682.0 mm |
| Overall Width - Excluding Loader Bucket | 2346.0 mm |
| Rear Axle - Centerline to Front Grill | 2708.0 mm |
| Wheelbase - AWD | 2200.0 mm |
| Overall Transportation Height - 4.3 m | 3757.0 mm |
| Overall Transportation Length | 5675.0 mm |
| Height - Top of Exhaust Stack | 2716.0 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m3 GP loader bucket and standard equipment unless otherwise specified. |
LOADER BUCKET DIMENSIONS AND PERFORMANCE: MP - 0.96 M3
| Dump Reach at Maximum Angle | 825.0 mm |
| Tilt Breakout Force | 60.48 kN |
| Digging Depth | 147.0 mm |
| Lift Breakout Force | 54.0 kN |
| Maximum Hinge Pin Height | 3447.0 mm |
| Grill to Bucket Cutting Edge, Carry Position | 1450.0 mm |
| Dump Height at Maximum Angle | 2764.0 mm |
| Maximum Operating Height | 4368.0 mm |
| Dump Angle at Full Height | 46° |
| Lift Capacity at Maximum Height | 3475.0 kg |
| Capacity | 0.96 m³ |
| Tipping Load - Breakout Point | 7110.0 kg |
| Width | 2262.0 mm |
| Maximum Bucket Rollback at Ground Level | 39° |
| Bucket Weight - Excluding Teeth and Forks | 611.0 kg |
| Maximum Grading Angle | 116º |
BACKHOE DIMENSIONS AND PERFORMANCE - STANDARD STICK - 4.3 M
| Swing Arc | 180° |
| Digging Depth - 600 mm Flat Bottom | 4094.0 mm |
| Stick Dig Force | 35.29 kN |
| Digging Depth, Manufacturer's Maximum | 4709.0 mm |
| Loading Reach | 1477.0 mm |
| Loading Height | 4031.0 mm |
| Bucket Rotation | 205° |
| Digging Depth - 2440 mm Flat Bottom | 3743.0 mm |
| Reach from Swing Pivot at Ground Line | 5609.0 mm |
| Bucket Dig Force | 57.22 kN |
| Digging Depth, 600 mm Flat Bottom, Manufacturer's | 4670.0 mm |
| Maximum Operating Height | 5719.0 mm |
| Digging Depth - SAE Maximum | 4119.0 mm |
| Stabilizer Overall Width | 2242.0 mm |
MACHINE DIMENSIONS - GP - 1.05 M3
| Overall Length - In Roading Position | 5726.0 mm |
| Height - Top of Exhaust Stack | 2716.0 mm |
| Overall Width - Excluding Loader Bucket | 2346.0 mm |
| Overall Transportation Length | 5678.0 mm |
| Rear Axle - Centerline to Front Grill | 2708.0 mm |
| Height - Top of Cab/Canopy | 2869.0 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m3 GP loader bucket and standard equipment unless otherwise specified. |
| Wheelbase - AWD | 2200.0 mm |
| Overall Transportation Height - 4.3 m | 3757.0 mm |
NOISE LEVEL
| Inside Cab | 80.0 dB(A) |
| Outside Cab | 104.0 dB(A) |

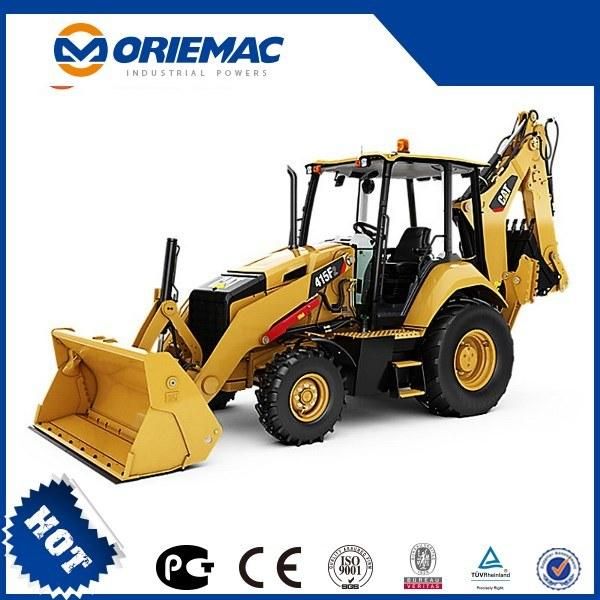

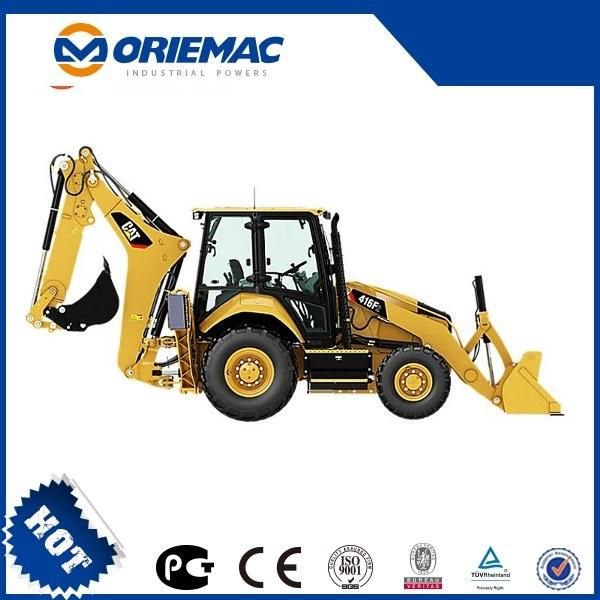

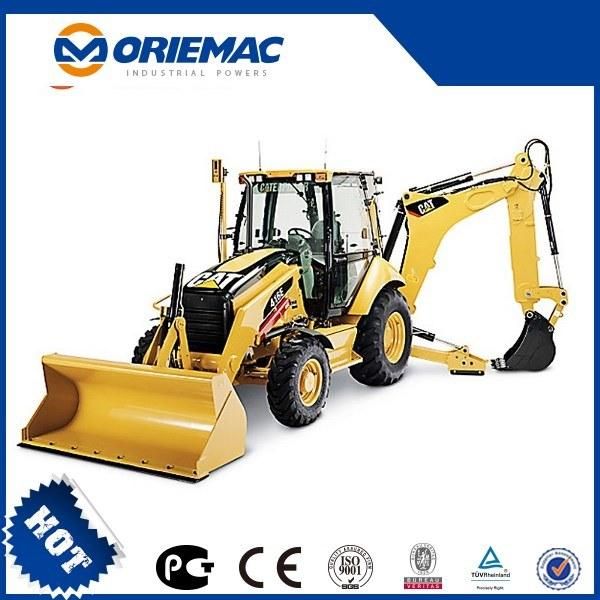

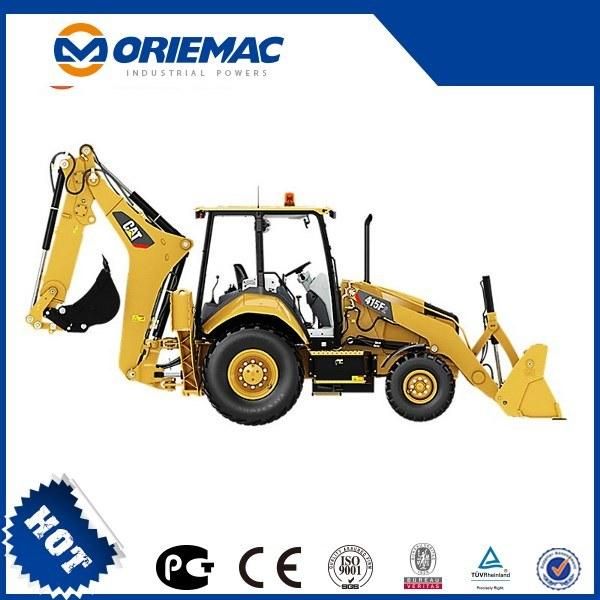

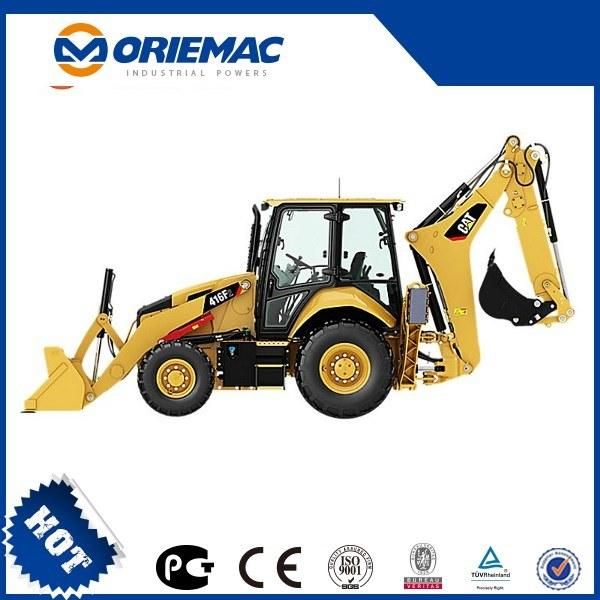

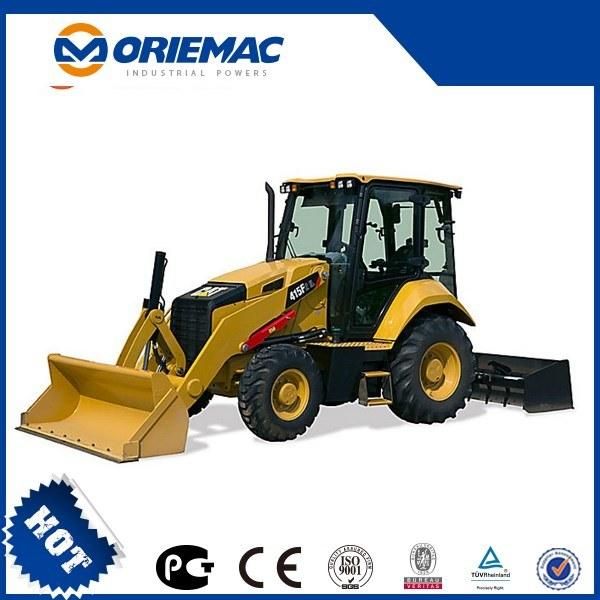

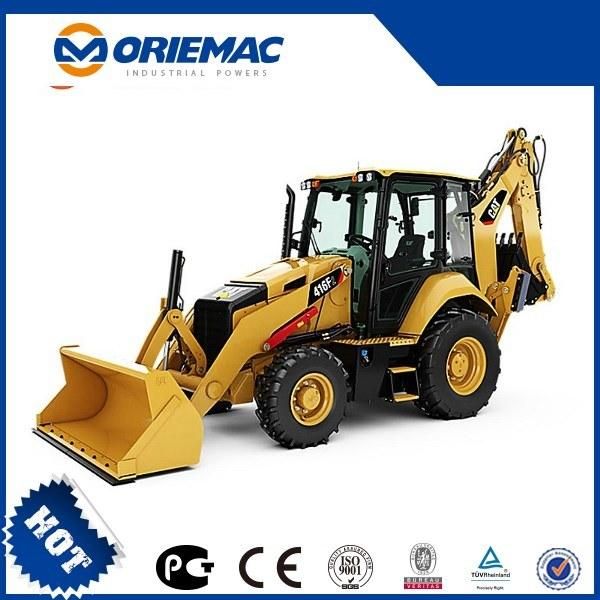

Product Pictures
