• Model NO.：Ycr60d
• Certification：CE, ISO 9001:2008
• Condition：New
• Rated Power：86,2200kw,Rpm
• Traction Force：104kn
• Rotary Speed：0-35rpm
• Track Width：2600mm
• Transport Package：Nude
• Specification：13695*3200*3460mm
• Trademark：YUCHAI
• Origin：China
• HS Code：8427209000
• Production Capacity：100units,Month

Overview Product Description

Product Parameters

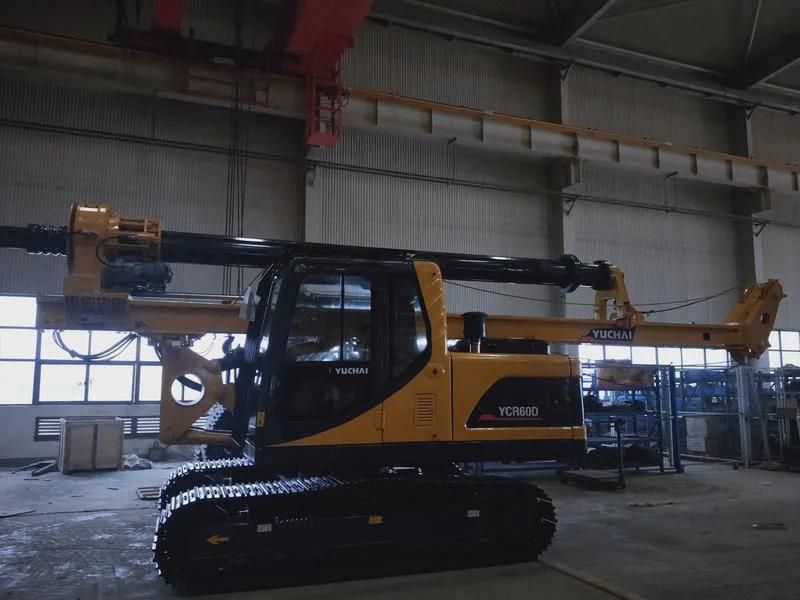

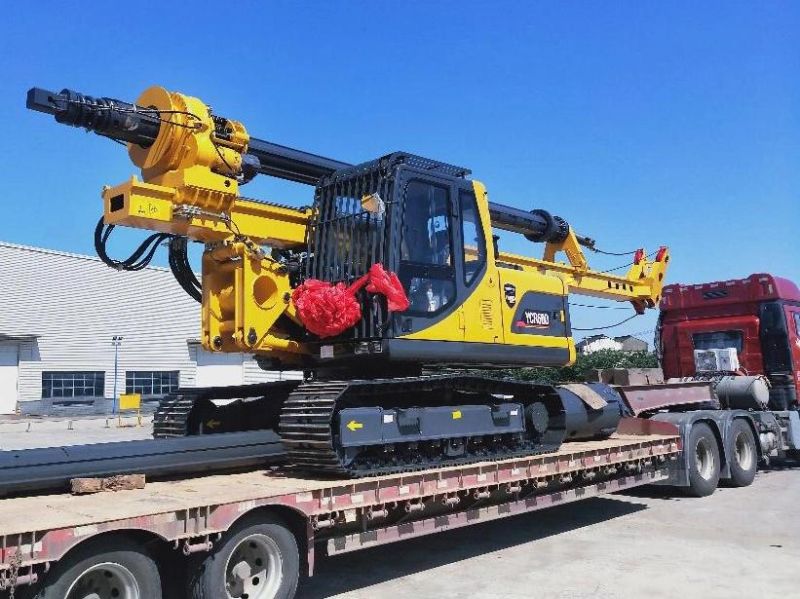

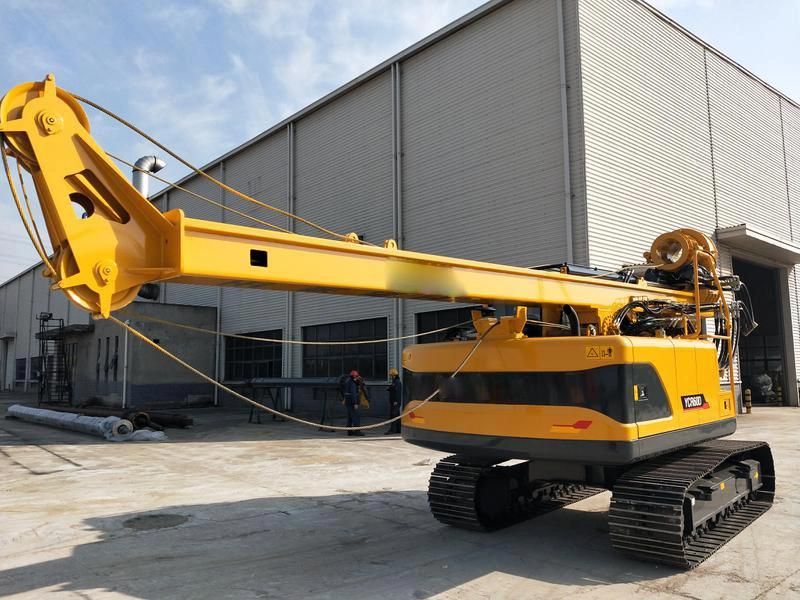

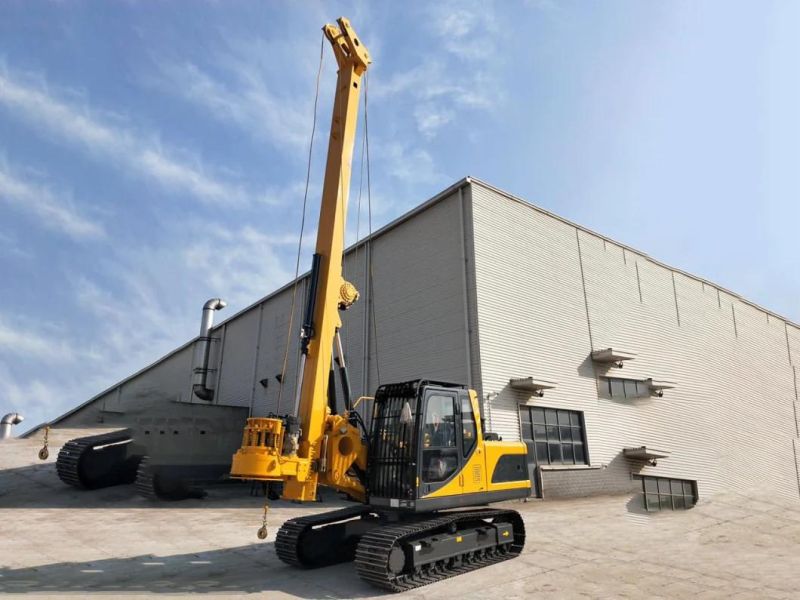

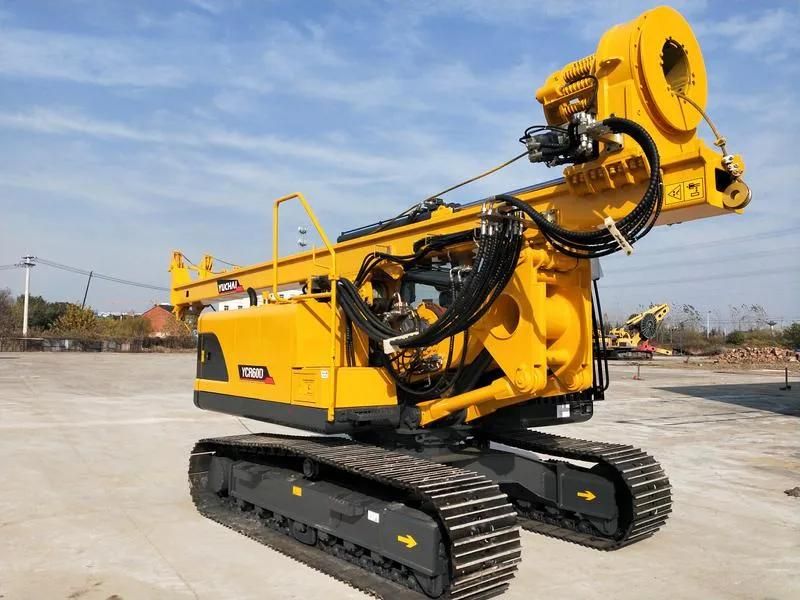

item)(Parameters)(Chasis)Engine typeQSF3.8-115/ Power/ revolution86kW/2200rpm()Deployment speed (margin)2600mmTrack shoe width600mmTraction104KN(Power head)The maximum out torque60kN·mPower head revolution0~35rpmThe maximum pressure increased55kNThe maximum pullout force80kNPressurizing oil cylinder stroke1500mm(Winch)(Main winch)Lifting force of the first layer70kNThe maximum lifting speed59m/minSteel wire diameter∅18mmAuxiliary winchLifting force of the first layer15kNThe maximum lifting speed50m/minSteel wire diameter∅12mm(Mast)Front inclination angle of mast5°Left and right inclinations of mast±4°(Hydraulic pump)The maximum working pressure of system32MPa(Hole depth and diameter)The maximum drilling diameter1.2mThe maximum drilling depth28m/22m(4/3)Weight at working state20 t()15.7t()19tDrill pipe(The standard configuration)∅299-4x7.6 m(optional configuration )∅299-3x7.6 m Detailed Photos
