• Model NO.：SAMB2
• Structure：Spiral Type
• Productivity：180m²,h
• Feeding Height：1400mm
• Vibrating Amplitude：2.4mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Solenoid Directional Control Valve：Germany Rexrot
• Balance Valve：Italian Oil Control
• Control Type：Cable Remote Control
• After-Sales Service Provided：Engineers Available
• Transport Package：Sea Worthy Packing
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8474390000
• Production Capacity：10000PC,Year

ModelHG32Delivery pipe dimension (outside diameter × thickness) (mm × mm)Φ133×4Delivery hose dimension (inside diameter × length) (mm)5" ×3000Radius of placing boom (m)32Stationary height (to the joint between the end of the boom and Swivel table) (m)23.97Four hydraulic foldable arms
 1st section arm14.5m2nd section arm9.2m 3rd section arm8.0m4th section arm/Boom articulation
 1st section arm-4.2°~+82.5°2nd section arm0°~180° 3rd section arm0°~180°4th section arm0°~180°Slewing range  (°)360Power of motor  (kW)15Pressure of hydraulic system  (MPa)28Type of hydraulic oil ESSO NUTO H46Interval of climbing frame (m)Climbing3.0~4.2 Placing concrete6.0~8.4 Resting Mode of operation
 1. cable remote control
2. radio remote control
 Power380V/50Hzwind speedPlacing concrete≤60 km/hclimbing≤28 km/hworking temperature0~48

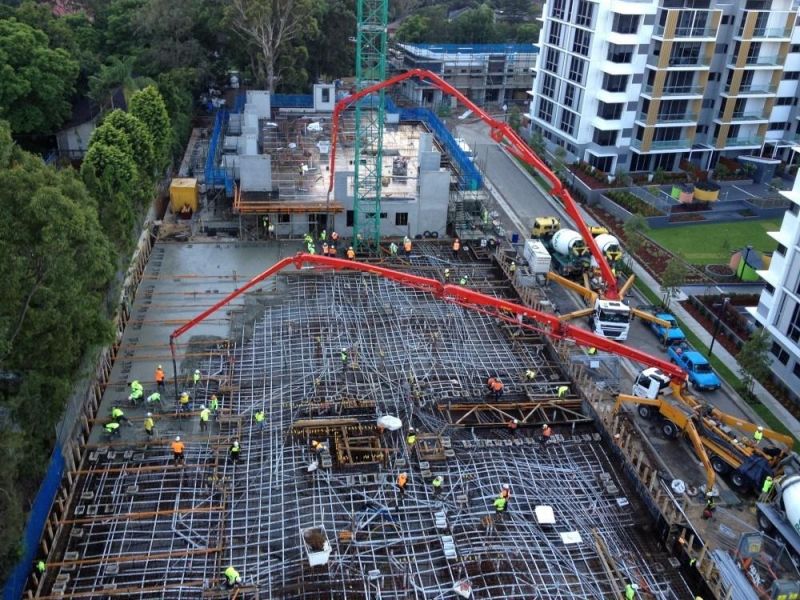

1 Introduction of SAPLB Hydraulic Mobile Hydraulic Concrete Distributor
SAPLB mobile hydraulic concrete placing booms mainly include 13m, 15m, 17m and 18m driven by fully hydraulic system. It does not need to be
fixed while working and could be moved to another place by tower crane on site, highly movable and flexible. It is very suitable and widely used for
the construction of form walls, pipes, columns, piles, other vertical structures, different floors without confined placing areas and complicated jobsites
without being influenced by the size and shape of floors.

2 Benefits & Features of Mobile Hydraulic Concrete Distributor
1 One button stabilization technology
The press of a button brings the boom to a smooth and immediate stop.
2 Smart boom system
Advanced technology to increase overall efficiency and reduce operator fatigue.
3 Boom anti-vibration technology
Minimizes chatter during pumping, to allow steady delivery.
4 Swing control technology
Rotary braking delivers precise swing operations.
5 Highly wear-resistant parts
Improved service life and reduced operating cost.
6 Protection technology
Features such as boom overload protection and hydraulic oil level monitoring are used to prevent damage.
7 Energy-saving technology
Increased pumping efficiency equals reduced fuel consumption.
