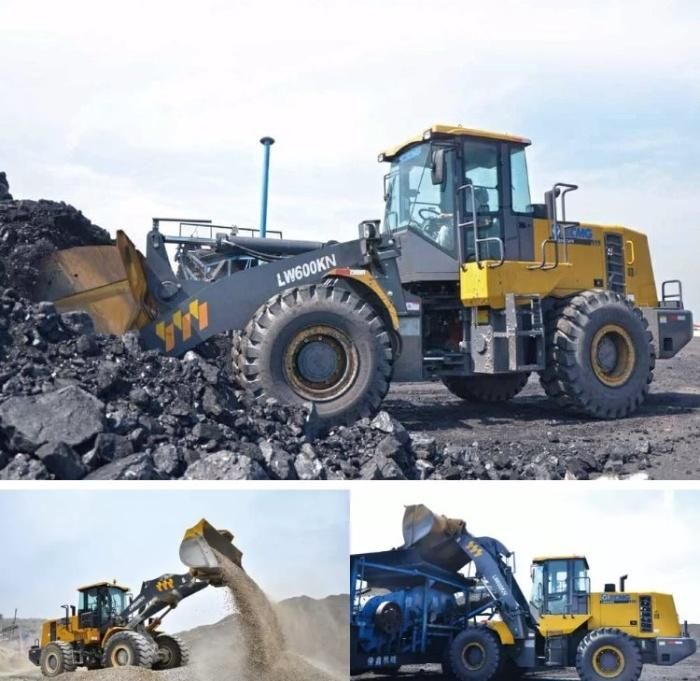

• Model NO.：LW600KN Wheel Loader
• Transmission：Hydraulic - Mechanical Transmission
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Application：Material Loading
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：>515kw
• Color：Orange
• Bucket Capacity：3.0-4.5cbm
• Dump Clearance at Maximum Lift：3170-3750mm
• Reach at Maximum Lift：1200-1360mm
• Wheel Base：3350mm
• Tread：2265mm
• Max.Breakout Force：205kn
• Max.Horse Power：174kn
• Min. Turning Radius Over Tyres：6005mm
• Overall Machine Dimension：8505X3220X3515mm
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8429510000
• Production Capacity：1000PC,Year

Steering system

Type

Articulated hydraulic steering

Max. turning angle

lift and right 36.5±1°

Min turning radius(mm)

5862

Brake system

Brake type

Air-break brake

Tires

Standard tires

17.5-25

Standard bucket

Width

2300

Advantages of wheel loader
1.The super-strong heavy-duty structural parts, enhanced drive system, andglobally supplied critical parts can carry the torsion and impact loads underdiversified working conditions.

2.The high energy-conservation and high-efficiency hydraulic system is applied to realize higher fuel utilization efficiencyand more powerful working capacity.

3.The strong breakout force of 205kn ensure that the machine could adapt to various tough condition.  The high-efficiency linkage system features fast motions, high breakoutforce, and powerful lifting capacity.

4.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

5.The large rock bucket with capacity of 3-4.5m³ is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
