Construction Machinery 30 Ton Big Crawler Excavator for Sale
Shanghai Super-Above Industry Holdings Co., Ltd.- Usage：Special Excavator
- Bucket：Grab Shovel
Base Info
- Model NO.：SACE4
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：1.0~1.5m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Maximum Digging Depth：9595mm
- Operating Weight：30800 Kg
- No. of Cylinders：6
- Output Power：169,2050 Kw, R,Min
- Torque/Speed：895,1250 N.M
- Displacement：6.7 L
- Fuel Tank Capacity：520 L
- Oil Capacity：20 L
- Ground Pressure：60 Kpa
- Bucket Digging Force：198 Kn
- Width of Crawler：600 mm
- Transport Package：Sea Worthy Packing
- Specification：CE
- Trademark：Super-above
- Origin：Shanghai
- HS Code：8429521200
- Production Capacity：1000PCS,Year
Description
Main parameters and price as below, customerized equipment according to your work condition is acceptable.Description Unit Parameter value Operating weight kg 30800 Bucket capacity cbm 1.2-1.6 Model Engine QSB7 No. of cylinders --- 6 Output power kW/ r/min 169/2050 torque/speed N.m 895/1250 Displacement L 6.7 Travel speed(H/L) km/h 5.2/3.1 Gradeability % 70 Rotary speed r/min 9.8 Ground pressure kPa 60 Bucket digging force kN 198 Arm digging force kN 138 Main pump -- K5V140DTP Rated flow of main pump L/min 2×140 Main safety valve pressure MPa 34.3/37 Pressure of the pilot system MPa 3.9 Fuel tank capacity L 520 Hydraulic tank capacity L 270 Engine oil capacity L 20 Overall length mm 10645 Overall width mm 3190 Overall height mm 3410 Width of platform mm 3050 Length of crawler mm 4944 Overall width of chassis mm 3190 Width of crawler mm 600
Features & Applications
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal
operations.
The wet type of steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the
rapid and flexible steering controls by joysticks.

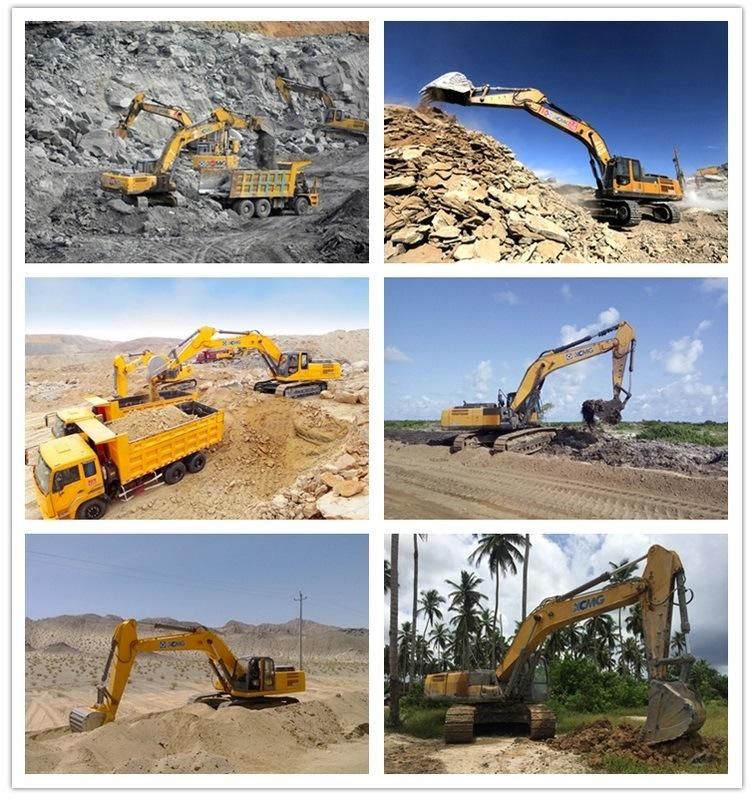

It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions
for roads, farms, water conservancy projects, municipal projects, and energy projects.
Features & Applications
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal
operations.
The wet type of steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the
rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions
for roads, farms, water conservancy projects, municipal projects, and energy projects.
