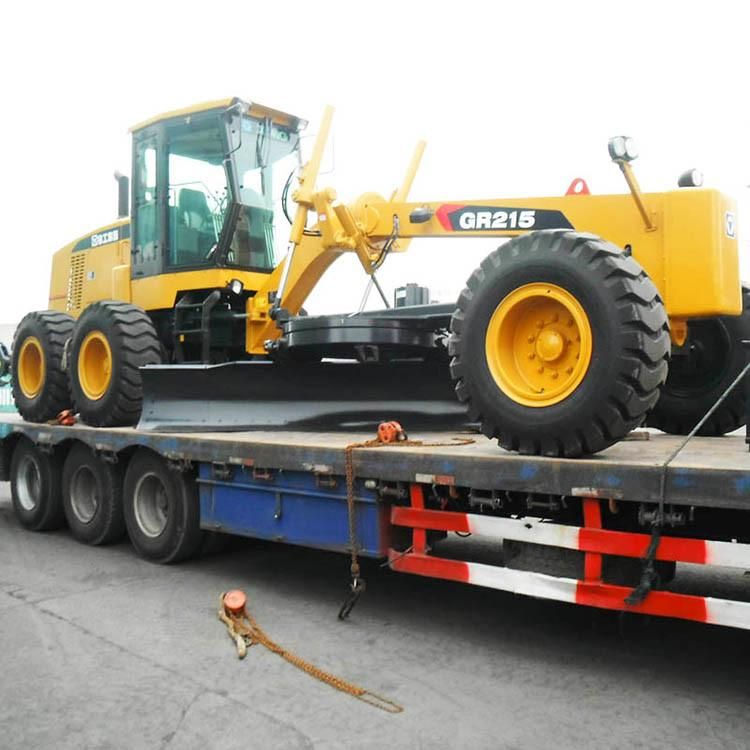

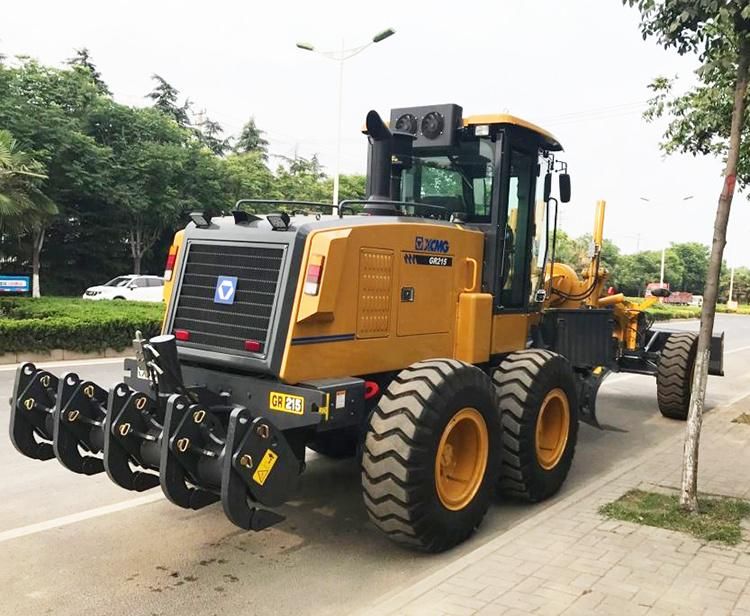

XCMG 215HP Roadr Grader Gr215 New Motor Grader Price

XCMG E-Commerce Inc.
  • Certification：ISO, CE
  • Condition：New
  • Rated Power/Speed：160(2200r,Min)
  • Ground Clearance：430mm
  • Maximum Gradeability：30%
  • Transport Package：Comply with Export Packaging Requirements

Base Info

  • Model NO.：GR215
  • Specification：9180x2625x3420mm
  • Trademark：XCMG
  • Origin：Jiangsu, China
  • Production Capacity：10000 Unit,Units Per Year

Description

ItemGR215Basic parametersEngine model6CTA8.3-C215Rated power/speed160kW/2200rpmOverall dimension (standard)8970x2625x3420Total weight (standard)16500 kgTire specification17.5-25Ground clearance (front axle)430mmSpace of front and rear axles6219 mmSpace of middle and rear wheels1538 mmPerformance
parametersForward velocity5,8,11,19,23,38km/hReverse speed5,11,23km/hTractive effort f=0.7587 kNMaximum gradeability20%Tire inflation pressure260kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±50°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium boxforwards15°, Reverse15°Maximum steering angle of frame±27°Minimum turning radius7.3mScrape knifeMaximum lift height450mmMaximum cutting depth500mmMaximum tilt angle90°Cutting angle28°-70°Angle of revolution360°Length & chord height4270x610mmOil filling amountCoolant50LFuel tank280LEngine24LTransmission38LEquilibrium box46LCoolant28LHydraulic oil110LProduct ShowXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader Price XCMG 215HP Roadr Grader Gr215 New Motor Grader PriceRelated Products To Choose Online Service Team Company ProfileXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader PriceXCMG 215HP Roadr Grader Gr215 New Motor Grader Price
