Brand New Grader XCMG 135HP Motor Grader Gr135 China Grader

XCMG E-Commerce Inc.
  • Certification：ISO
  • Condition：New
  • Applicable Industries：Construction Works
  • Unique Selling Point：Long Lifetime
  • Hydraulic Cylinder Brand：Top Brand
  • Dimension(L*W*H)：8015*2380*3050 mm

Base Info

  • Model NO.：GR135
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Warranty：1 Year
  • Hydraulic Valve Brand：Top Brand
  • Hydraulic Pump Brand：Top Brand
  • Forward Speed(Km/H)：42
  • Reverse Speed(Km/H)：30
  • Engine Brand：Cummins
  • Trademark：XCMG
  • Origin：Jiangsu, China
  • Production Capacity：10000 Unit,Units Per Year

Description

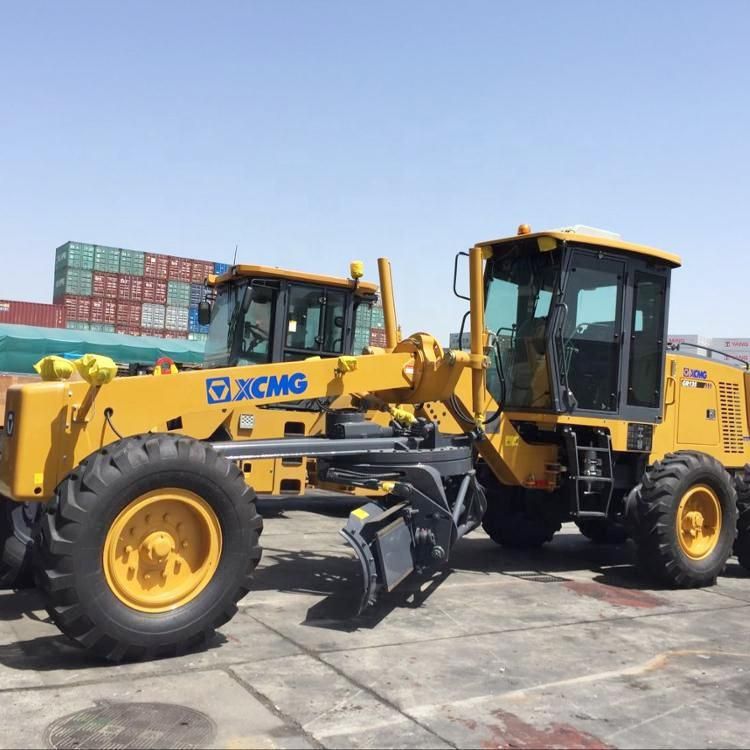

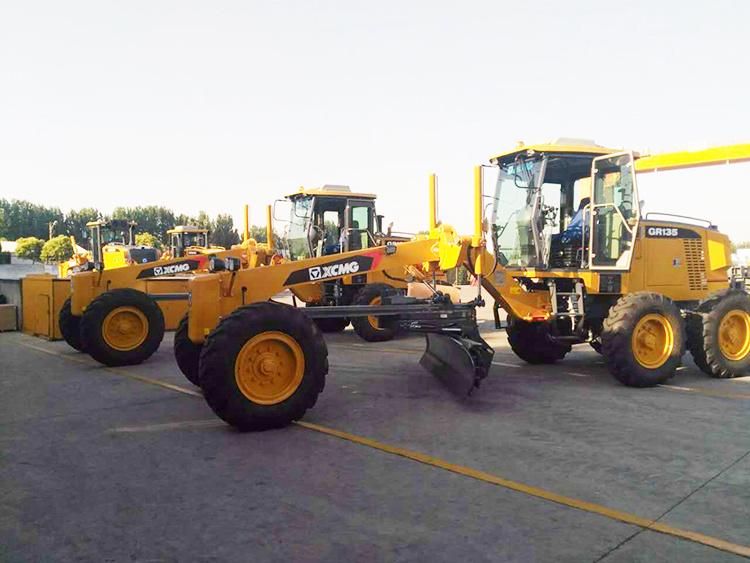

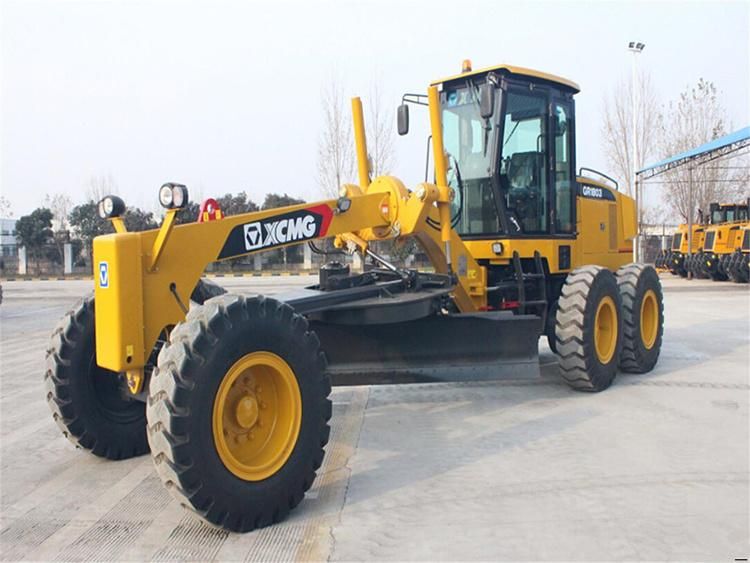

ItemGR135Basic parametersEngine model6BT5.9-C130-IIRated power/speed97(2200r/min)Overall dimension (standard)8015X2380X3050Total weight (standard)11000kgTire specification13.00-24Ground clearance (front axle)515mmTread2020mmSpace of front and rear axles5780 mmPerformance parametersForward velocity5,8,13,20,30,42km/hReverse speed5,13,30km/hTractive effort f=0.7561.3kNMaximum gradeability20%Tire inflation pressure300kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±49°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±16°Maximum steering angle of frame±27°Minimum turning radius6.6mScrape knifeMaximum lift height410mmMaximum cutting depth515mmMaximum tilt angle90°Cutting angle54°-90°Angle of revolution360°Length & chord height3660x610mmOil filling amountCoolant50LFuel tank280LEngine18LTransmission26LHydraulic oil96LDrive axle28LBalancing box46 LProduct ShowBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China Grader Brand New Grader XCMG 135HP Motor Grader Gr135 China GraderRelated Products To Choose Online Service Team Company ProfileBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China GraderBrand New Grader XCMG 135HP Motor Grader Gr135 China Grader
