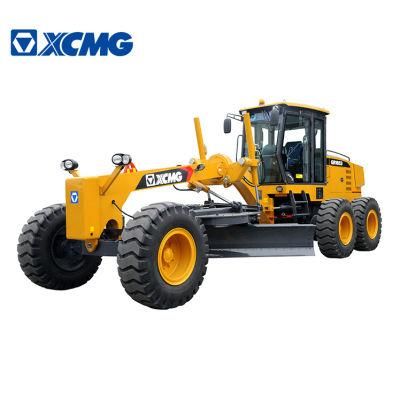

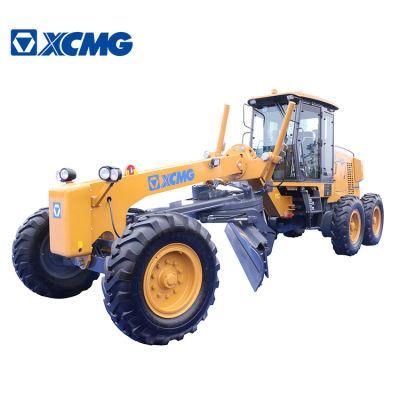

XCMG Official Motor Grader 215HP Road Graders Gr215avii
XCMG E-Commerce Inc.- Certification：ISO, CE
- Condition：New
- Rated Power/Speed：160(2200r,Min)
- Ground Clearance：430mm
- Maximum Gradeability：30%
- Transport Package：Comply with Export Packaging Requirements
Base Info
- Model NO.：GR215AVII
- Specification：9180x2625x3420mm
- Trademark：XCMG
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Year
Description
ItemGR215AVII Basic parameters Engine model 6CTA8.3-C215 Rated power/speed 160kW/2200rpm Overall dimension (standard) 9180x2625x3420 Total weight (standard) 16100 kg Tire specification 17.5-25 Ground clearance (front axle) 430mm Tread 2156mm Space of front and rear axles 6219 mm Space of middle and rear wheels 1538 mm Performance parameters Forward velocity 5/8/11/19/23/38km/h Reverse speed 5/11/23km/h Tractive effort f=0.75 ≥118 kN Maximum gradeability ≥30% Tire inflation pressure 260kPa Working system pressure 18MPa Transmission pressure 1.3-1.8Mpa Working parameters Maximum steering angle of front wheel ±50° Maximum slant angle of front wheel ±17° Maximum oscillating angle of front axle ±15° Maximum oscillating angle of equilibrium box ±15° Maximum steering angle of frame ±27° Minimum turning radius 7.3m Scrape knife Maximum lift height 450mm Maximum cutting depth 500mm Maximum tilt angle 90° Cutting angle 28°-70° Angle of revolution 360° Length & chord height 4270x610mm Oil filling amount Coolant 50L Fuel tank 280L Engine 24L Transmission 38L Balancing box 46L Drive axle 28L

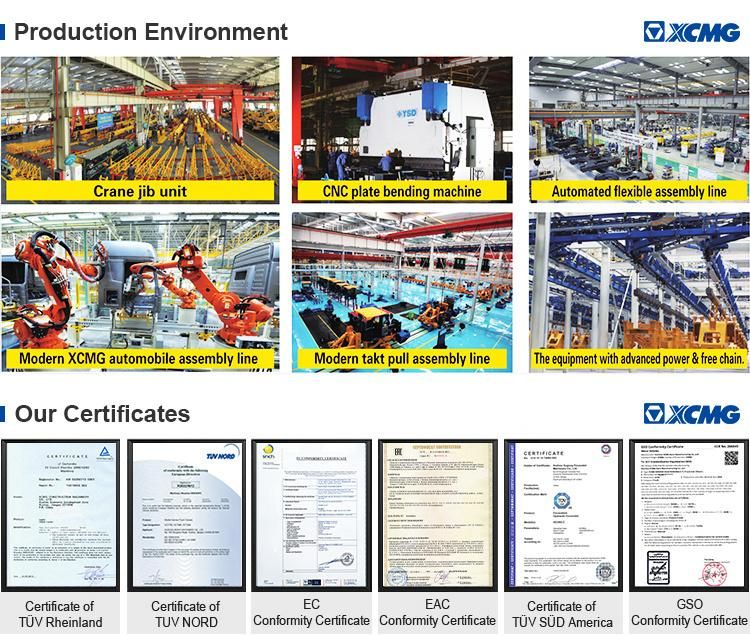

Company Profile
