• Model NO.：HH10A
• Rate Load(Kg)：1ton
• Bucket Capacity(M3)：0.5
• Wheel Distance(mm)：1320
• Axle-Base(mm)：1940
• Min Base to The Ground(mm)：230
• Dump Clearanle(mm)：2350
• Distance Acc.to The Height(mm)：800
• Time of Raise(S)：4
• Hydraylic Cycle Time(S)：9
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Yellow
• Transport Package：1 Unit Can Fit One 20′gp, 3 Units Into 40hq
• Specification：4750*1600*2530
• Trademark：CHHGC
• Origin：Henan, China (Mainland)
• HS Code：8429105
• Production Capacity：200 Units Per Month

Basic Info.

Model NO. HH10A Rate Load(Kg) 1ton Bucket Capacity(M3) 0.5 Wheel Distance(mm) 1320 Axle-Base(mm) 1940 Min Base to The Ground(mm) 230 Dump Clearanle(mm) 2350 Distance Acc.to The Height(mm) 800 Time of Raise(S) 4 Hydraylic Cycle Time(S) 9 Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Yellow Transport Package 1 Unit Can Fit One 20′gp, 3 Units Into 40hq Specification 4750*1600*2530 Trademark CHHGC Origin Henan, China (Mainland) HS Code 8429105 Production Capacity 200 Units Per Month

Product Description

CE Approved 1000kg Rated Load Mini Wheel Loader Small Front End Loader



Features

1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.



Specification



Item	HH10A
Rate load(kg)	1000
Bucket capacity(m³)	0.5
Wheel distance(mm)	1320
Axle-base(mm)	1940
Loader clearance radius(mm)	4700
Min base to the ground(mm)	230
Dump clearanle(mm)	2350
distance acc. to the height(mm)	800
Time of raise(s)	4
Hydraylic cycle time(s)	9
Turns to pick the strength most greatly(KN)	32
Drive mode	Four-wheel drive
Operating weight(kg)	2700
(mm)Overall dimensions (Length*width*height)	4750*1600*2530
Engine Model	CHANGCHAI390
Engine Rated poweer(kw)	20
horsepower(hp)	27
Engine rated output(rpm)	2200

Attachments:

Quick hitch, Pallet fork, Snow blade, VSnow blade, snow bucket, Grapple fork, grasping for wood, screening bucket, oil drum kits, Four in one bucket, snow chains (set).

Attachments option:

Grapple, grasping for wood, screening bucket, oil drum kits, Four in one bucket, snow chains(set), snow blower, A/C, etc.

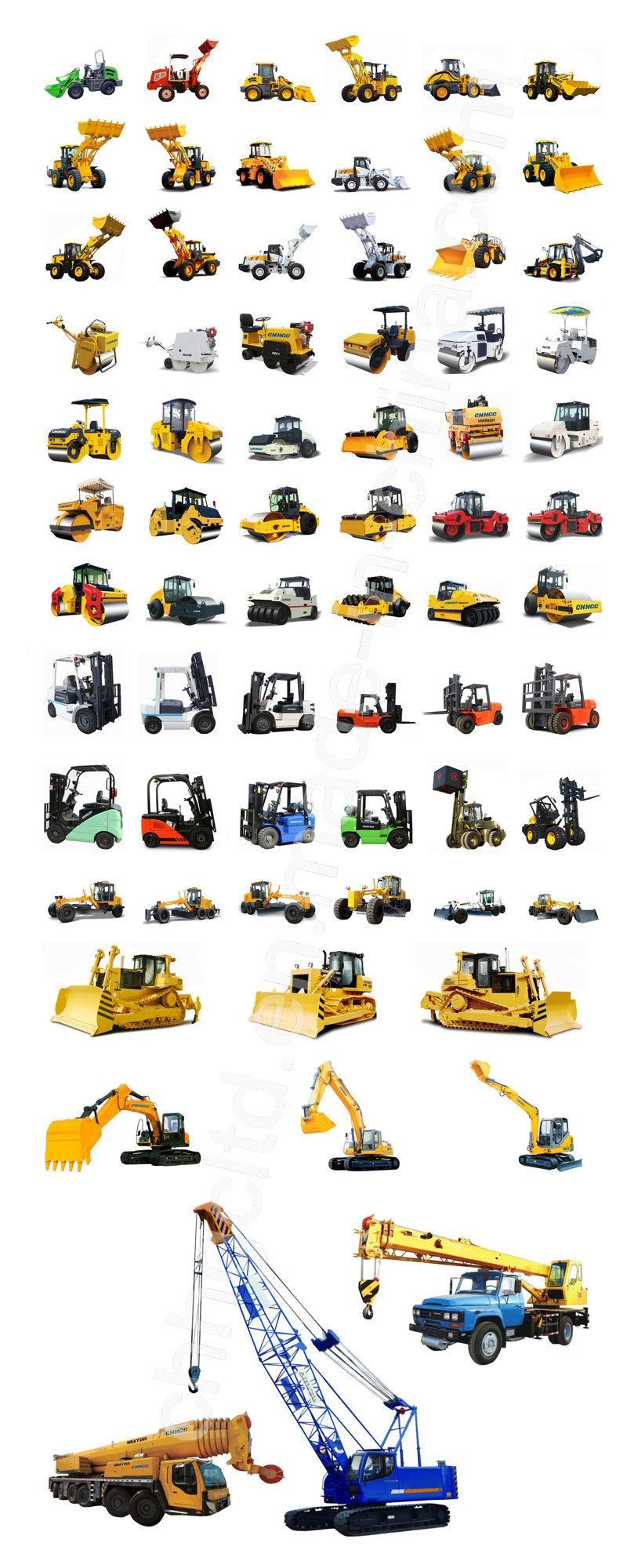

Our Products

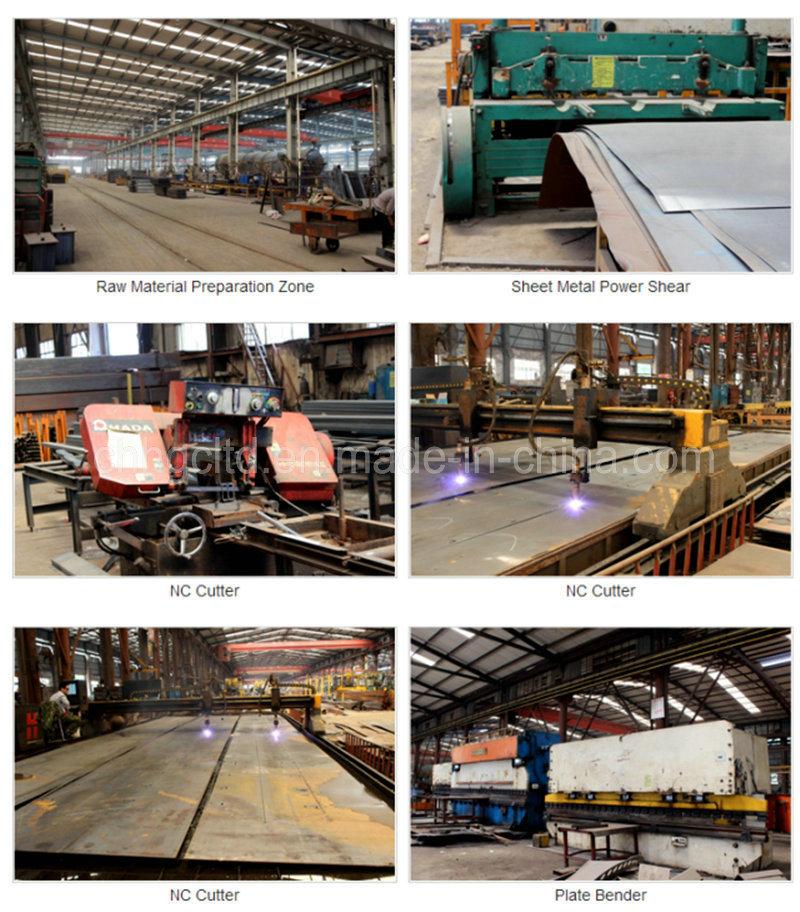

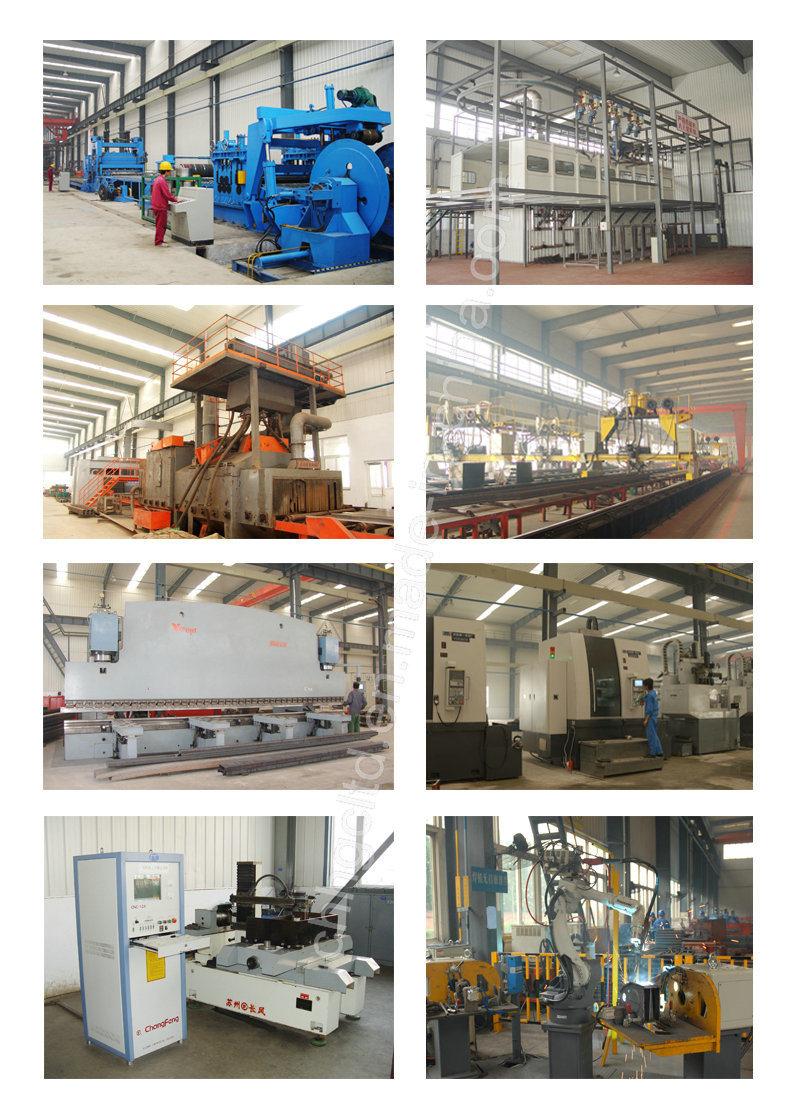

Workshop


Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
