• Model NO.：HH620
• Rate Load(Kg)：2tons
• Bucket Capacity(M3)：1.5
• Wheel Distance(mm)：1470
• Axle-Base(mm)：2160
• Min Base to The Ground(mm)：340
• Dump Clearanle(mm)：3500
• Distance Acc.to The Height(mm)：1140
• Time of Raise(S)：6
• Hydraylic Cycle Time(S)：10
• Engine Power：<74kw
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Color：Yellow
• Usage：Universal Type
• Transport Package：1 Unit 1t 2t 3t 5t Wheel Loader Fit in One 20′gp
• Specification：5630*2100*2850
• Trademark：CHHGC
• Origin：Henan, China (Mainland)
• HS Code：8429105
• Production Capacity：100 Units Per Month

Basic Info.

Model NO. HH620 Rate Load(Kg) 2tons Bucket Capacity(M3) 1.5 Wheel Distance(mm) 1470 Axle-Base(mm) 2160 Min Base to The Ground(mm) 340 Dump Clearanle(mm) 3500 Distance Acc.to The Height(mm) 1140 Time of Raise(S) 6 Hydraylic Cycle Time(S) 10 Engine Power <74kw Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Color Yellow Usage Universal Type Transport Package 1 Unit 1t 2t 3t 5t Wheel Loader Fit in One 20′gp Specification 5630*2100*2850 Trademark CHHGC Origin Henan, China (Mainland) HS Code 8429105 Production Capacity 100 Units Per Month

Product Description

CE/EPA Approved 2 Tons 1.5m3 Bucket 4 Wheel Drive Hydraulic Transmission System Front End Wheel Loader


Description

2T Rated load
Certificate: CE,ISO
Hydro-mechanical transmission
Joystick valvle
Cummins engine for option


Characteristics

1.The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.


Specifications

Item	HH620
Rate load(kg)	2000
Bucket capacity(m³)	1.5
Wheel distance(mm)	1470
Axle-base(mm)	2160
Loader clearance radius(mm)	5200
Min base to the ground(mm)	340
Dump clearanle(mm)	3500
distance acc.to the height(mm)	1140
Time of raise(s)	6
Hydraylic cycle time(s)	10
Turns to pick the strength most greatly(KN)	37.75
Drive mode	Four-wheel drive
Operating weight(kg)	5310
(mm)Overall dimensions (Length*width*height)	5630*2100*2850
Engine Model	XICHAI4DX11-64/Luotuo4108G
Engine Rated poweer(kw)	48/60
horsepower(hp)	122
Engine rated output(rpm)	2400

Our Products


Features

1. The wheel loader uses the branded diesel engine as power, so it has the advantages of easy start, less oil consumption, strong power and environmental protection.

2. Using the dedicated engineering axles, the machine can make improvement for integral mechanical gearboxes, dual steering cylinders and so on, and can facilitate the operation.

3. The wheel loader uses the branded big-flow hydraulic pumps and steering gear. The hoisting arms, direction change and so on take less time and the work efficiency is greatly increased through its matching with the diesel engine.

4. With 24V battery (dual battery), the wheel loader will have an easy start in winter.

5. Its branded and high-quality rubber tire is far better for long-time operations in various environments.

6. The wheel loader employs the high-articulated structure (the distance between upper and lower hinge plates is short and the turning radius is small) to further stabilize the driving operation.

7. Featuring unique appearance, the cab of the wheel loader has a large operating space and wide vision so the machine achieves much safer operation.

8. The wheel loader has anoverhauled cover that is easy for maintenance.

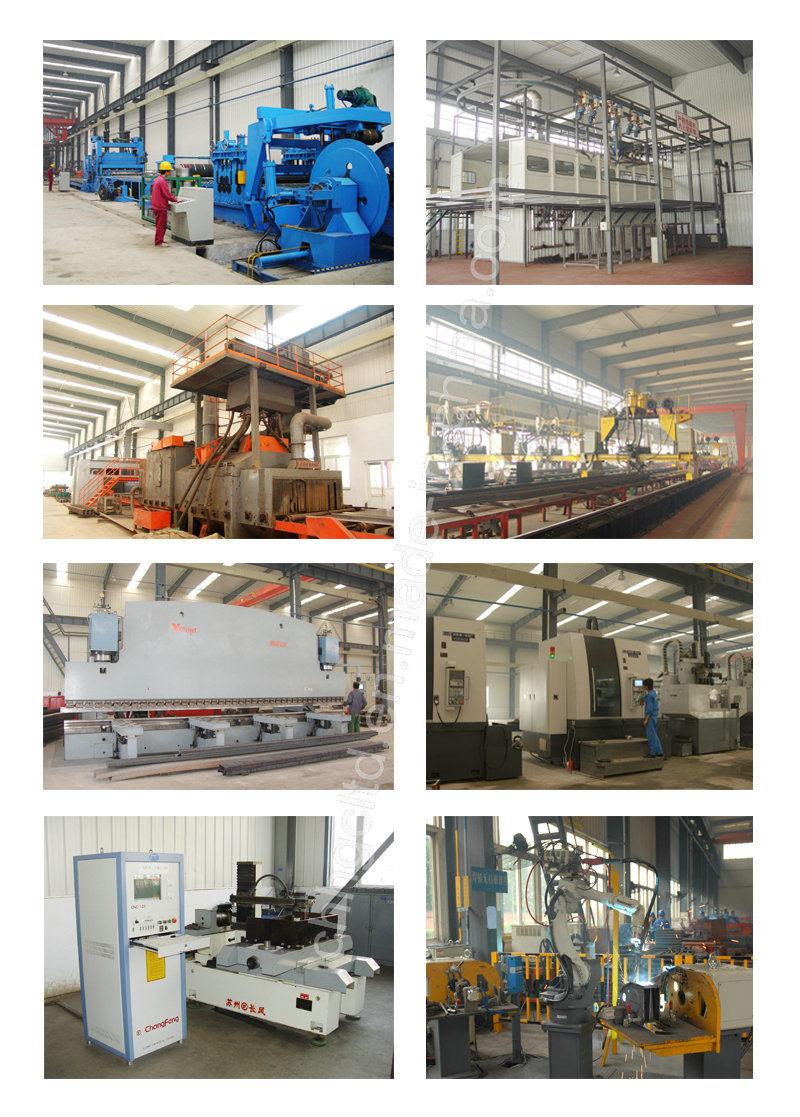

Workshop



Why us?

1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers;
2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service


Packaging and Shipping

1. All the wheel loaders will be made anti rust before shipment
2. Different shipping method for different situation, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking service


Our Services

1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty earth-moving machinery in China.
7.Warranty period is 1-year or 2000 working hours against Bill of Lading.
8.ROPS cab


FAQ

1. How about the products range do you produce ?

We are specilized in producing wheel loaders cover 0.8ton to 5tons. Model: CHHGC608,CHHGC610,CHHGC620,CHHGC630,HH10,ect. producing forklift with 2tons, 3tons, 4tons, 5tons, load capacity.

2. Which brand engine do you have for ?

We company choose good quality engine for , Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.

3. What advantages of your products and company?

1.)adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2.) ROPS cabin, double-layer thick cab, more strong and resistant
3.) adjusting steering wheel and adjusting seat, more comforable drive environment for driver
4.) All of our products passed the strict test before sale to customers
