• Model NO.：sd16
• Condition：New
• Color：Yellow
• Transport Package：Nude Packing, Suitable for Shipment
• Specification：5410*3388*3032mm
• Trademark：shantui
• Origin：China
• Production Capacity：100,Month

  Categories:

Bulldozer

Model

SD16

name

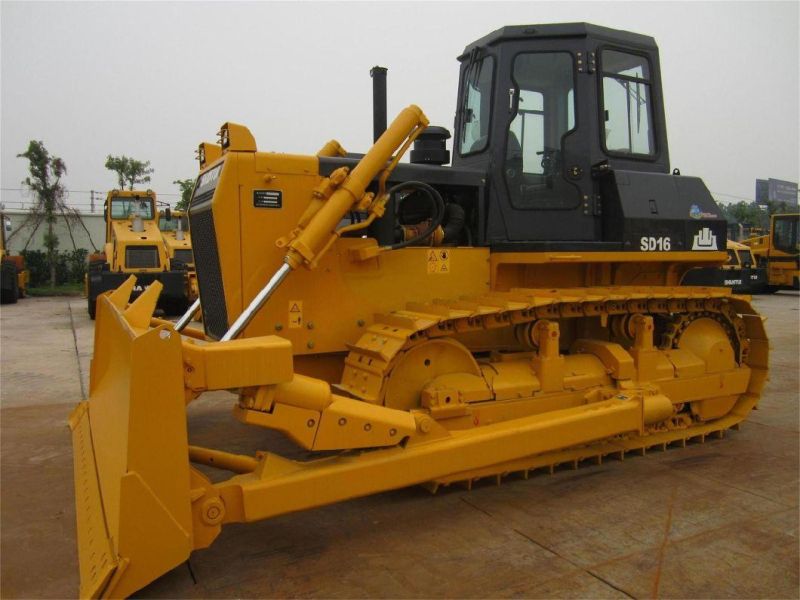

SD16 bulldozer

clicks:

418

Engine

Shangchai C6121ZG70B/Steyr WD10G175E15

Weight

17t

Specification Blade Type

Straight-tilt

Angle

U-type

Min.ground clearance(mm)

400

400

400

Ground pressure(MPa)

0.067

0.067

0.067

Min.turning radius(m)

4.7

4.5

4.9

Gradeability(°)

30

30

30

Track gauge(mm)

1880

1880

1880

Dozing capacity(m3)

4.5

4.4

5.0

Efficiency(Theoretical value in 40m)(m3 /h)

225

225

250

Blade width(mm)

3388

3970

3556

Blade height(mm)

1149

1090

1120

Max.drop below ground (mm)

540

540

530

Max.tilt adjustment(mm)

400

-

400

 ENGINE
Model........................…....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower....................120kW
Rated revolution.........................1850r/min
Cylinder number-bore×stroke................6-126×130mm
Piston displacement...............…...9.726L
Min.fuel consumption.....................214g/KW.h
Max. torque.....................…....764N.m

TRAVEL SPEED

1st

2nd

3rd

Foward(km/h)

0-3.29

0-5.28

0-9.63

Reverse(km/h)

0-4.28

0-7.59

0-12.53

UNDERCARRIAGE SYSTEM
Type................................Splayed beam suspended structure of equalizer
Carrier rollers(each side)...............….2
Track rollers(each side)..................6
Track type.................................Assembled,single-grouser
Width of track shoes..................…..510mm
Pitch...............................203.2mm
OVERALL DIMENSION
Straight-tilt 5410×3388×3032mm
