• Model NO.：sd22
• Condition：New
• Color：Yellow
• Transport Package：Nude Package Shipped by RO-RO or Bulk Shipment
• Specification：5750*3725*3395mm
• Trademark：shantui
• Origin：China

ITEMUNITSD22L×W×H (Ripper not included)mm5750×3725×3395Operating weight (Ripper not included)t23.4Engine-NT855-C280S10Rated powerkW/rpm162/1800Gradeability°30Blade type-Straight tilt blade U-blade
 Semi-U blade  Angle bladeBlade widthmmStraight tilt blade 3725×1315
U blade 3800×1343
Semi-U blade 3725×1374
Angle blade 4365×1055Dozing capacitym3Straight tilt blade 6.4
U blade 7.5
Semi-U blade 7.0
Angle blade 4.7Ma× drop below ground of blademm540Lift height of blademm1210Ripper type Single ripper   Three-shank ripperRipping depth of rippermmSingle ripper 695
Three-shank ripper 666Lifting height of rippermmSingle ripper515
Three-shank ripper 555Number of carriers (each side)-2Number of track rollers (each side)-6Number of track shoes (each side)-38Width of track shoemm560Track gaugemm2000Ground length and ground pressuremm/MPa2730-0.077Pitchmm216Forward speedkm/h0-3.60-6.50-11.2Reverse speed
km/h0-4.30-7.70-13.2



Features

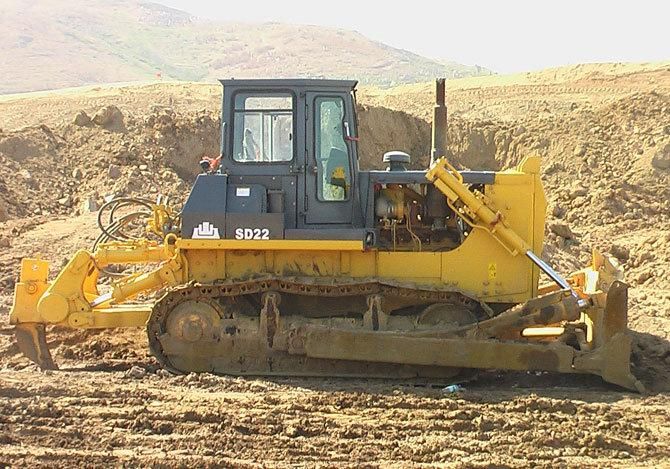

The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life.  It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation.

The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system.  With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
