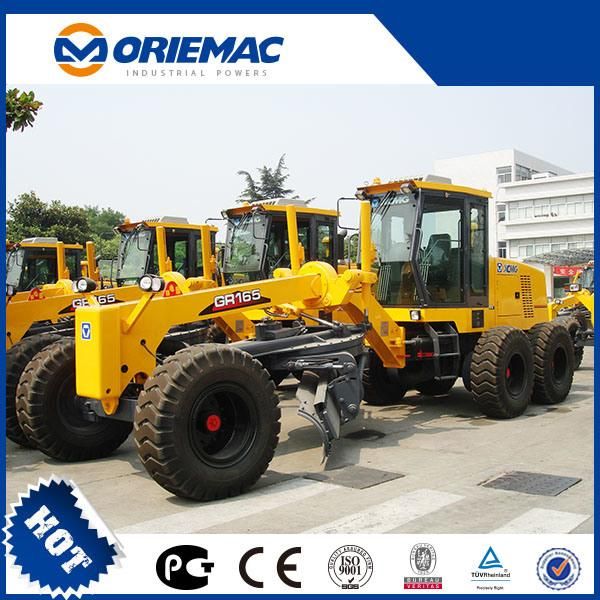

• Model NO.：GR165
• Rated Power/Speed：224kw,2100rpm
• Dimension(Lxwxh)：10500×3100×3550mm
• Operating Weight(Standard)：26000kg
• Tractive Force：140kn
• Max. Gradeability：30%
• Tire Inflation Pressure：350 Kpa
• Transport Package：Nude
• Specification：8225x3016x3515
• Trademark：XCMC
• Origin：China
• Production Capacity：350units,Month

Basic specification

Engine modelQSL9Rated power/speed  224kW/2100rpmDimension(LxWxH)10500×3100×3550mmOperating weight(Standard)26000kg

Performance specification

Travelling speed ,forward5,8,11,19,23,40 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)140KNMax. gradeability30%Tire inflation pressure350 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation8.0mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4920×787mm
Product Show
