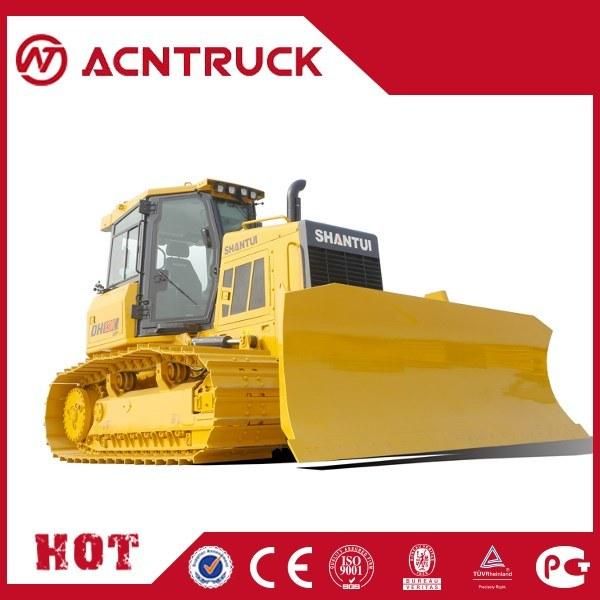

Shantui Bulldozer SD22f Forest 220HP
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：SD22F 220hp
- Condition：New
- Color：Yellow
- Blade Capacity：4.3m3
- Blade Type：Su
- Blade Width：3180mm
- Blade Height：1240mm
- Rated Power：131kw
- Max.Blade Digging Depth：430mm
- Engine：Weichai
- Operating Weight：13700kg
- Ripper Type：Three-Shank Ripper
- Transport Package：Nude
- Specification：13700kg
- Trademark：SHANTUI
- Origin：Shandong, China
- Production Capacity：100units,Week
Description
ITEM
UNIT
SD13
L×W×H (Ripper not included)
mm
4492×3185×2950
Operating weight (Ripper not included)
t
13.7
Engine
-
Shangchai SC8D143G2B1
Rated power
kW/rpm
95.5/1900
Gradeability
°
30
Blade type
-
Straight tilt blade Angle blade
Blade width
mm
Straight tilt blade 3185×1090 Angle blade 3475×915
Dozing capacity
m3
Straight tilt blade 3.7 Angle blade 3.4
Ma× drop below ground of blade
mm
590
Lift height of blade
mm
930
Ripper type
-
Three-shank ripper
Ripping depth of ripper
mm
467
Lifting height of ripper
mm
559
Number of carriers (each side)
-
2
Number of track rollers (each side)
-
6
Number of track shoes (each side)
-
38
Width of track shoe
mm
460
Track gauge
mm
1880
Ground length and ground pressure
mm/MPa
2365-0.063
Pitch
mm
190
Forward speed
km/h
0-3.2
0-5.9
0-9.8
Reverse speed
km/h
0-3.9
0-7.1
