Oriemac Brand New 135kw Hydraulic Motor Grader Gr180 for Sale in Africa
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year or 2000 Working Hours
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：GR180
- Walking Mode：Crawler
- Type：Large Grader
- Rated Power/Speed：142kw,2100rpm
- Dimension(Lxwxh)：8900X2625X3420mm
- Operating Weight(Standard)：15400kg
- Tractive Force：140kn
- Max. Gradeability：30%
- Tire Inflation Pressure：350 Kpa
- Engine Model：6CTA8.3-C190-II
- Transport Package：Nude
- Specification：8225x3016x3515mm
- Trademark：ORIEMAC
- Origin：China
- Production Capacity：350units,Month
Description
Basic Info.
Model NO. GR180 Walking Mode Crawler Type Large Grader Rated Power/Speed 142kw/2100rpm Dimension(Lxwxh) 8900X2625X3420mm Operating Weight(Standard) 15400kg Tractive Force 140kn Max. Gradeability 30% Tire Inflation Pressure 350 Kpa Engine Model 6CTA8.3-C190-II Transport Package Nude Specification 8225x3016x3515mm Trademark ORIEMAC Origin China Production Capacity 350units/MonthProduct Description
ORIEMAC Brand New 135kw Hydraulic Motor Grader GR180 for Sale in AfricaORIEMAC180hp asphalt soil motor graders GR180 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.
GR180 motor graders is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
GR180 motor graders advantages and highlights:
1. Famous brand Engine, ZF Technology Gearbox, and ORIEMAC Drive Axle make the drive system power matching more reasonable and reliable.
2. Double-circuit hydraulic brake system makes the brake more reliable and stable.
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
4. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.
5.Various options expand the machine's performance and working range.
Product Specifications
| Item | GR180 | ||
| Basic parameters | Engine model | 6CTA8.3-C190-II | |
| Rated power/speed | 142kW/2200rpm | ||
| Overall dimension (standard) | 8900x2625x3420 | ||
| Total weight (standard) | 15400 kg | ||
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | 430mm | ||
| Tread | 2156mm | ||
| Space of front and rear axles | 6219 mm | ||
| Space of middle and rear wheels | 1538 mm | ||
| Performance parameters | Forward velocity | 5 /8 /11/ 19/ 23 /38 km/h | |
| Reverse speed | 5/ 11/ 23km/h | ||
| Tractive effort f=0.75 | ≥79 kN | ||
| Maximum gradeability | ≥25% | ||
| Tire inflation pressure | 260kPa | ||
| Working system pressure | 18MPa | ||
| Transmission pressure | 1.3-1.8Mpa | ||
| Working parameters | Maximum steering angle of front wheel | ±50° | |
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | ±15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | 7.3m | ||
| Scrape knife | Maximum lift height | 450mm | |
| Maximum cutting depth | 500mm | ||
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°-70° | ||
| Angle of revolution | 360° | ||
| Length & chord height | 3965x610mm | ||
| Oil filling amount | Coolant | 50L | |
| Fuel tank | 280L | ||
| Engine | 24L | ||
| Transmission | 38L | ||
| Balancing box | 46L | ||
| Drive axle | 28L |

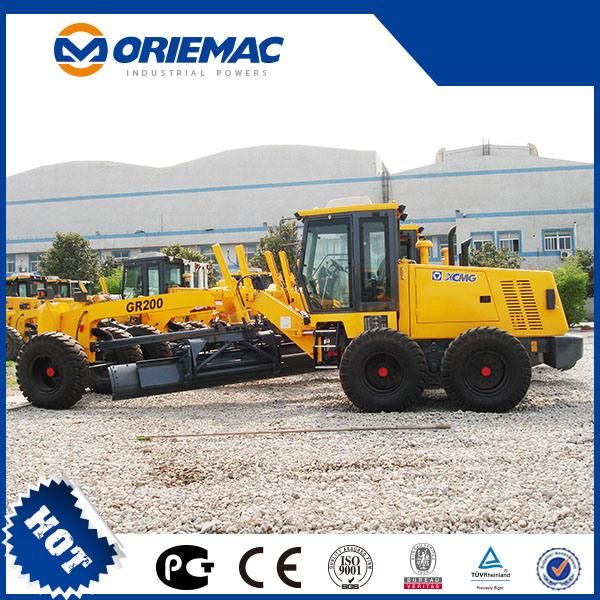

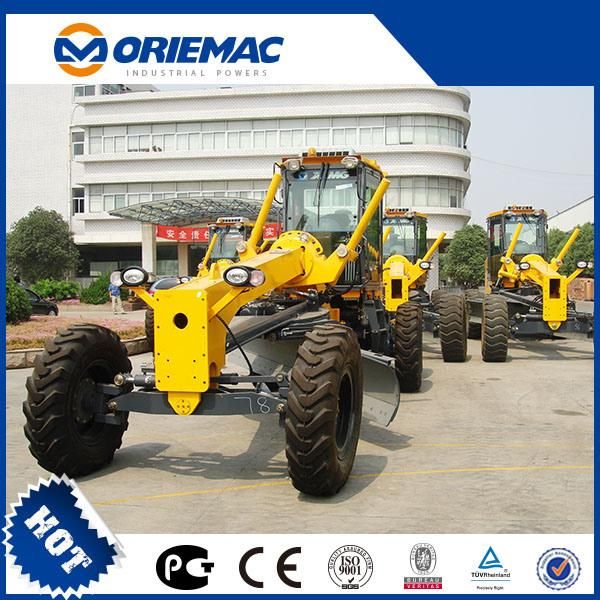

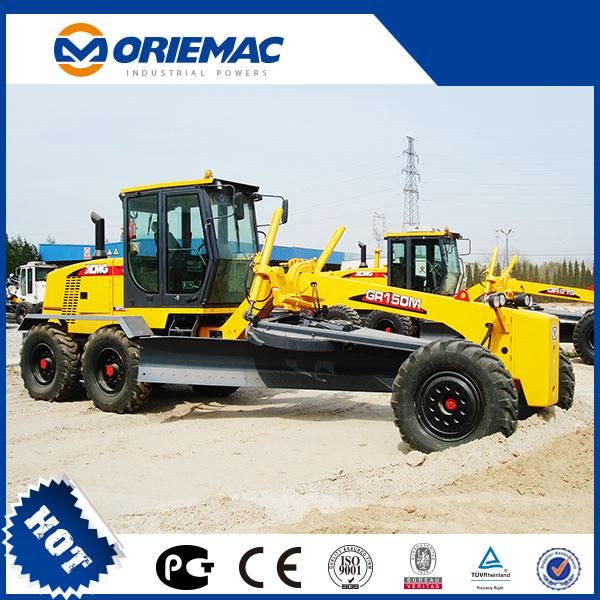

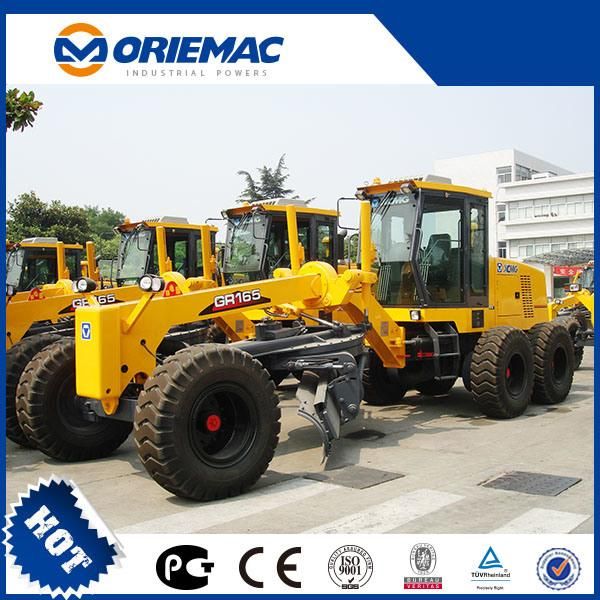

Product Show
