• Model NO.：CDM856
• Type：Medium-sized Loader
• Transport Package：Nude Package
• Specification：9650mm*2990mm*3200mm
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：50000

Overall Data
Steering System
Bucket Capacity (m3)
3.0
Type
Hydraulic Load Sensing System
Rated Payload(kg)
5000
Cylinders-bore×Stroke(mm)
2-100×324
Operating Weight(kg)
17300±300
Steering Pump
Gear Pump
Traction Force(kN)
155±3
System Pressure(MPa)
15
Breakout Force(kN)
170±3
Flow Rate(L/min/rpm)
176/2200
L×W×H(mm)
8050×3034×3530
Steering Angle
±35°
Travel Speeds (km/h):
Hydraulic System

I
II


Lift Cylinders-bore×Stroke(mm)
2-180×721
Forward
11.5
36.0


Tilt Cylinder-bore×Stroke(mm)
1-200×563
Reverse
16.0



Model of Implement Pump
Gear Pump
Engine
        WD10G220E21 DF CUMMINS 6CTAA8.3-C215
Flow Rate(L/min/rpm)
220/2200
Rated Power(kW·hp/rpm)
162·(220)/2200160·(215)/2200
System Pressure(MPa)
16
Peak Torque(Nm/rpm)
860/1400-1600908/1500
Pilot Control System Pressure(MPa)
2.5
Starting Voltage(V)
24
Hydraulic Cycle Time, Rated Load in Bucket(In second):
Drive Train
Raise(Loaded)
Dump
Lower(Empty)
Total
Torque Converter
Single-stage, Duo-turbine, 4-element
6.0
1.0
4.0
11.0
Torque Ratio
4.0
Electrical System
Transmission
Planetary Powershift Transmission
System Voltage(V)
24
Gear
2F/1R
Battery (2 in series)(Ah)
2-120
Pressure of Transmission(MPa)
1.2~1.5
Lamp Voltage(V)
24
Main Reducer
Spiral Bevel, 1-stage Reduction
Service Refill Capacity
Final Reducer
Planetary Reduction
Fuel Tank(L)
285
Tire
23.5-25 L-3 16PR TT
Hydraulic Tank(L)
270
Brake System
Crankshaft(L)
20
Service Brake
Duo Circuit Caliper,Dry Brake
Transmission(L)
45
Setting Pressure (MPa)
0.70-0.78
Front Axle(L) /Rear Axle(L)
25/25
Parking Brake
Air Actuated Caliper Brake
Air Conditioning System
Emergency Brake
Air Actuated Caliper Brake
Heating Capacity(W)
5800 (±10%)

Cooling Capacity(W)
4500 (±10%

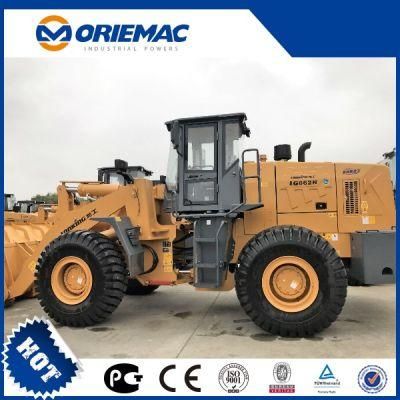

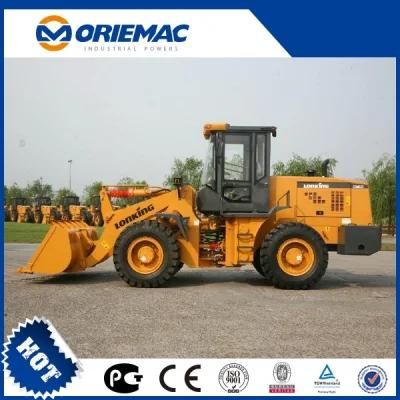

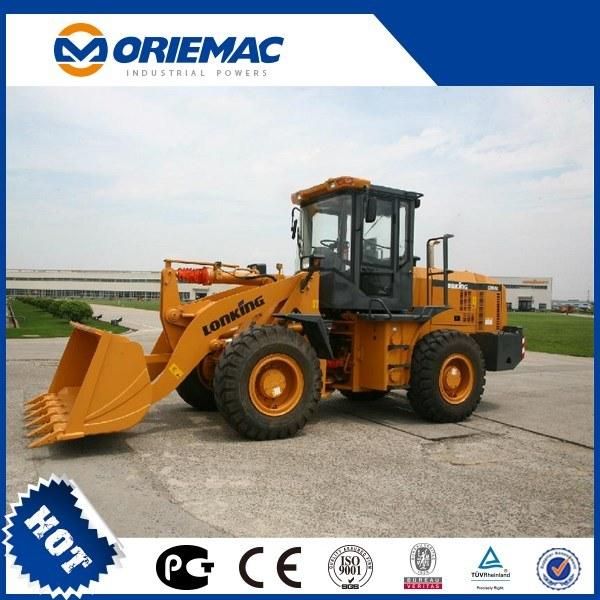

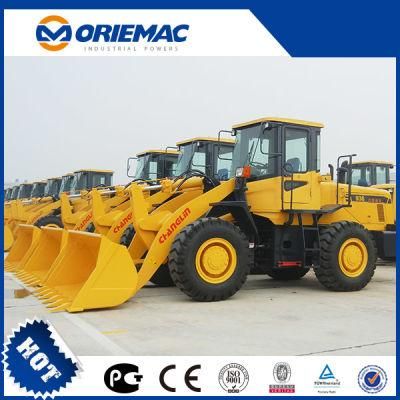

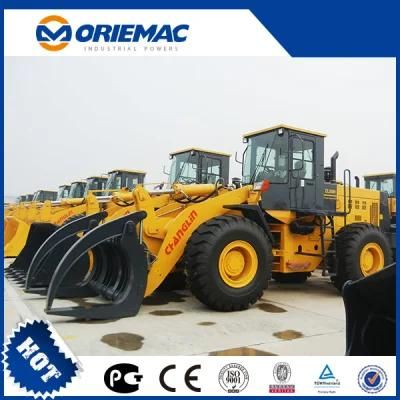

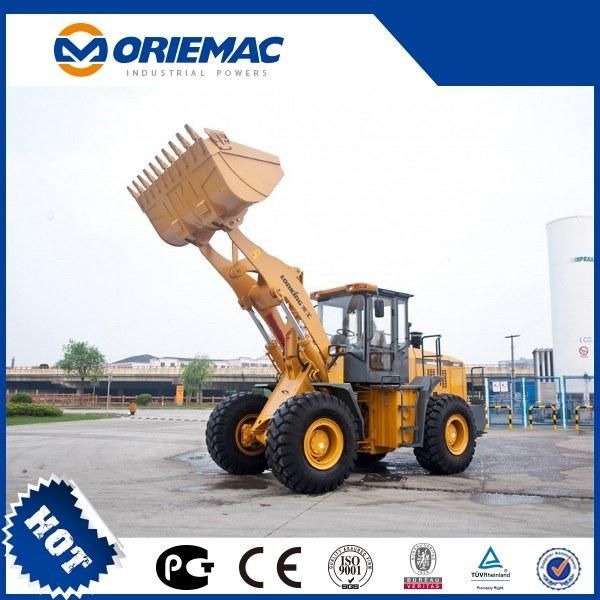

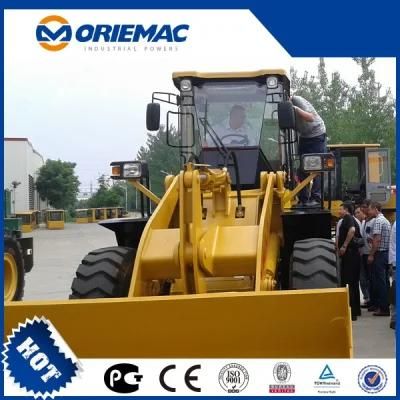

Photo Show
