• Model NO.：CDM812D
• Type：Medium-sized Loader
• Transport Package：Nude Package
• Specification：9650mm*2990mm*3200mm
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：50000

Overall DataBucket Capacity (m3)0.55Rated Payload (kg)1200Operating Weight (kg)4200Traction Force (kN)31Breakout Force (kN) Max. Travel Speeds (km /h):36 III Forward8.320.8 Reverse7.719.0 EngineChangchai 490BRated Power (kW/rpm)38/2400Rated Torque (Nm/rpm) Starting Voltage (V)173/1800 24Drive TrainTorque ConverterSingle-stage, Single-turbine, 3-elementTorque Ratio3.7TransmissionFixed Shaft Hydraulic Shift Spur GearGear2F/2RPressure of Transmission (MPa)1.2-1.5Main ReducerSpiral Bevel Gear Single-stage ReductionFinal ReducerPlanetary ReductionTire11.00-16Brake SystemService BrakeAir Drive, Four Wheel Brake (Dry)Setting Pressure (MPa) Parking & Emergency Brake0.78 Flexible Shaft Controlled CaliperQingzhou Transmission Feicheng Axle Standard BucketLight-duty Grapple (ZZ)

 Steering SystemTypeHydraulic Load Sensor SystemCylinders-BorexStroke (mm)2-63X280Steering PumpShared With Working PumpSystem Pressure (MPa)14Steering Angle±35°Hydraulic SystemLift Cylinders-BorexStroke (mm)2-80X610Tilt Cylinder-BorexStroke(mm)1-100X450Working PumpGear PumpFlow Rate (L/min/RPM)120/2400System Pressure (MPa)16Hydraulic Cycle Time, Rated Load in Bucket (In Second):Raise(Loaded)DumpLower(Empty)Total4.51.22.27.9Electrical SystemSystem Voltage (V)24Battery(2 in series) (Ah)180Lamp Voltage (V)24Service Refill CapacityFuel Tank (L)80Hydraulic Tank (L)80Transmission (L)16Front Axle (L) / Rear Axle (L)8/8

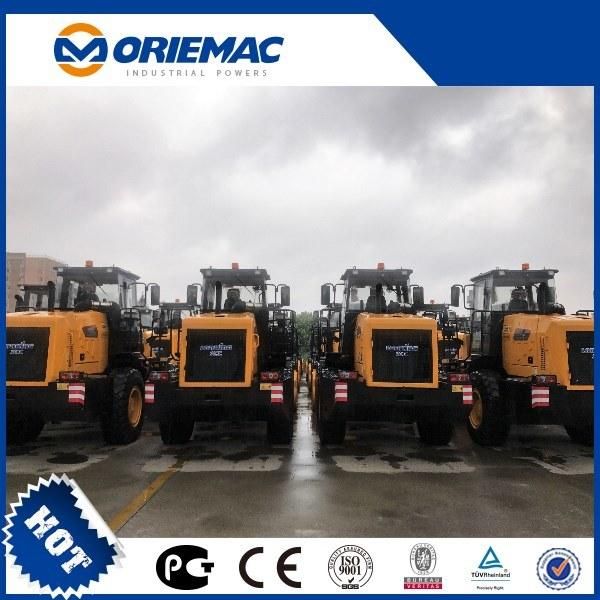

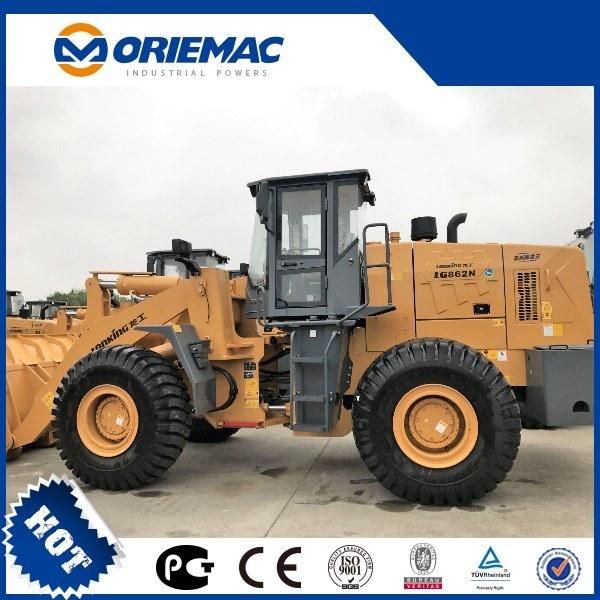

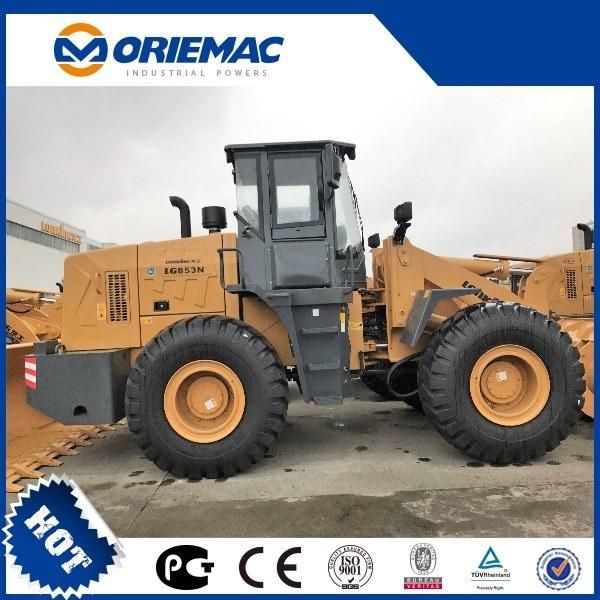

Photo Show

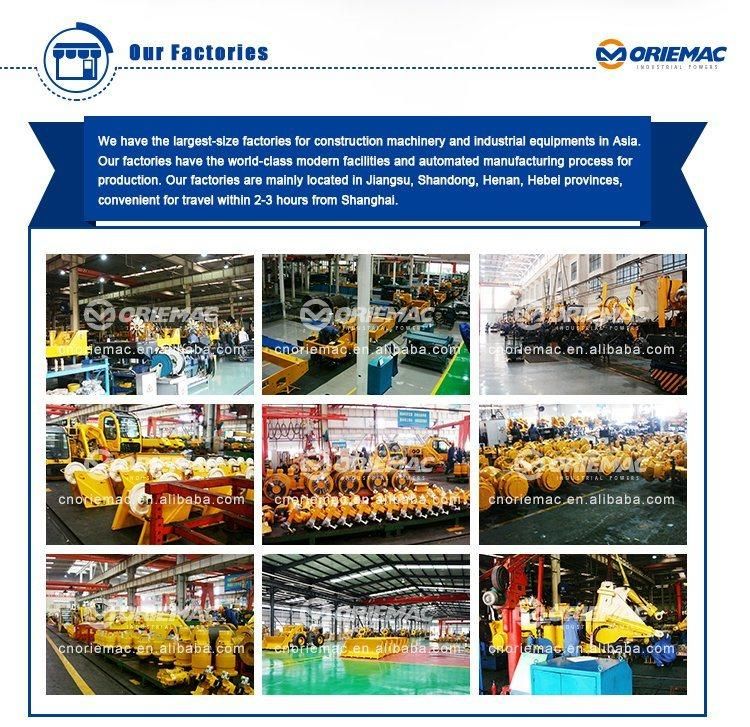

About Company
