• Model NO.：CDM816D
• Type：Medium-sized Loader
• Transport Package：Nude Package
• Specification：9650mm*2990mm*3200mm
• Trademark：ORIEMAC
• Origin：China
• Production Capacity：50000

 Steering SystemBucket Capacity (m 3 )0.95TypeHydraulic Load Sensor SystemRated Payload (kg)1600Cylinders-BorexStroke (mm)2-63X280Operating Weight (kg)5500Steering PumpShared With Working PumpTraction Force (kN)50System Pressure (MPa)14Breakout Force (kN) Max. Travel Speeds (km /h):52Steering Angle±35° III Hydraulic SystemForward7.420.8 Lift Cylinders-BorexStroke (mm)2-90X589Reverse7.220.4 Tilt Cylinder-BorexStroke(mm)1-100X387EngineYTO YT4A2-24Working PumpGear PumpRated Power (kW/rpm)55/2400Flow Rate (L/min/RPM)120/2400Rated Torque (Nm/rpm)235/1680-1800System Pressure (MPa)16Starting Voltage (V)24  Drive TrainHydraulic Cycle Time, Rated Load in Bucket (In Second):Torque ConverterSingle-stage, Single-turbine, 3-elementRaise(Loaded)DumpLower(Empty)TotalTorque Ratio3.74.90.83.79.4TransmissionFixed Shaft Hydraulic Shift Spur GearElectrical SystemGear2F/2RSystem Voltage (V)24Pressure of Transmission (MPa)1.2-1.5Battery(2 in series) (Ah)180Main ReducerSpiral Bevel Gear Single-stage ReductionLamp Voltage (V)24Final ReducerPlanetary ReductionService Refill CapacityTire16/70-20Fuel Tank (L)80Brake SystemHydraulic Tank (L)80Service BrakeAir Drive, Four Wheel Brake (Dry)Transmission (L)14Setting Pressure (MPa) Parking & Emergency Brake0.78 Flexible Shaft Controlled CaliperFront Axle (L) / Rear Axle (L)12/12 Air Conditioning System (Optional)  Heating Capacity (W)5800(±10%)Cooling Capacity (W)4500(±10%)

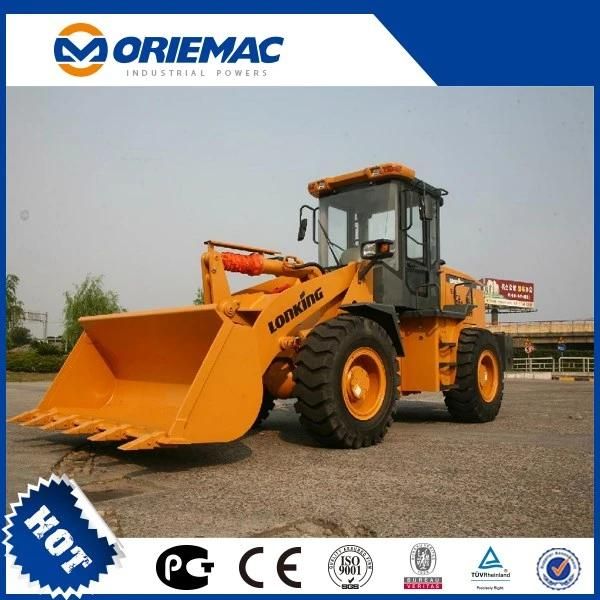

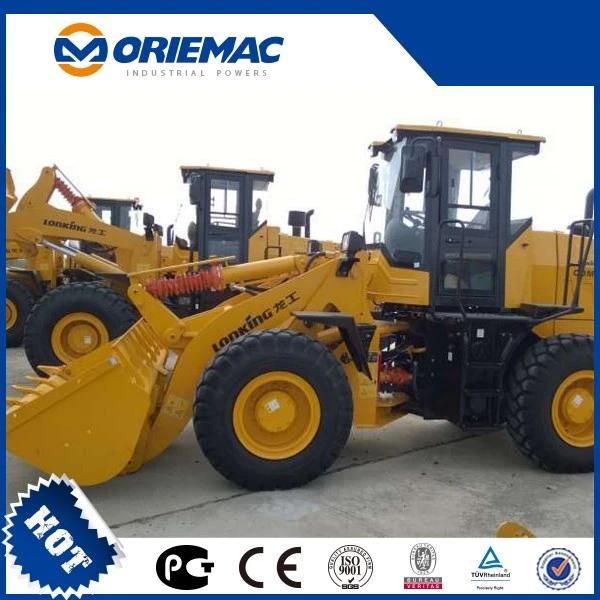

Photo Show

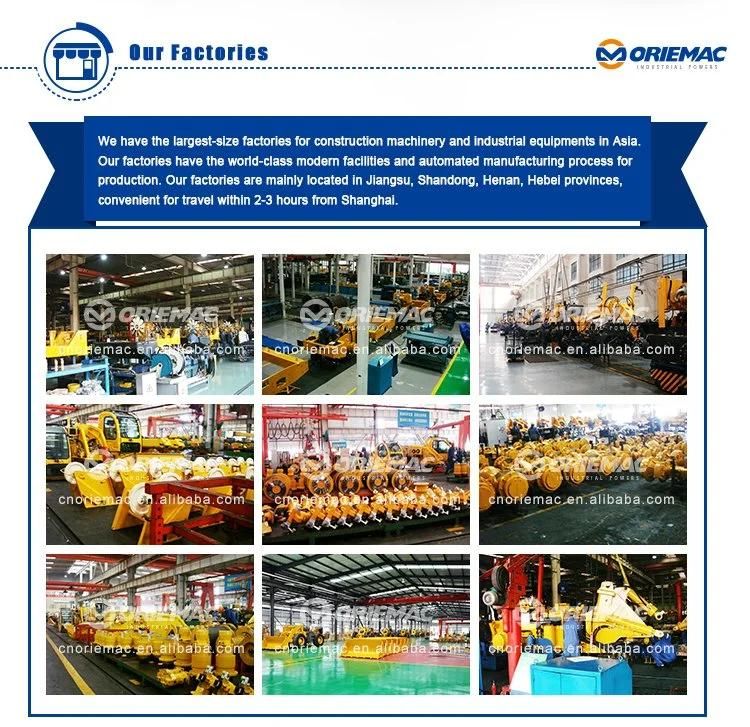

About Company
