Ce/ISO/SGS Trailer Concrete Pumping Equipment Supplies

Zhengzhou Lead Equipment Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Productivity：3-8m3 ,H
  • Certification：ISO9001: 2000, CE
  • Condition：New

Base Info

  • Model NO.：LCP8,80-30D
  • Color：Yellow
  • Pump Work Pressure：38 Bar
  • Cylinder Diameter：100mm
  • Cylinder Stroke：550mm
  • Concrete Slump：7 -15cm
  • Acceptable Max. Aggregate Size：20mm
  • Conveying Hose Inner Diameter：100,80,50mm
  • Net Weight：1650kg
  • Transport Package：Standard Export Packing or as Your Request
  • Specification：2200*1250*1600mm
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：8413400000
  • Production Capacity：1000 Set,Year

Description

Model

LCP8/80-30D

Rated Output

3-8m3 /h (LS)

Pump work pressure

38 Bar

Acceptable Max. Aggregate Size

20mm

Cylinder diameter

100mm

Cylinder Stroke

550mm

Pump Valve

S Valve

Max. Horizontal Conveying Distance

200m

Max. Vertical Conveying Distance

100m

Concrete Slump

7 -15cm

Conveying Hose Inner Diameter

100/80/50mm

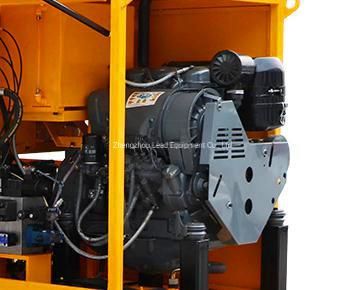

Diesel engine

30kw@1800rpm 4-cylinder, air cooling

Dimension(L × W × H)

3000*1600*1900mm

Net Weight

1650kg

Features:
Variable output(LS)

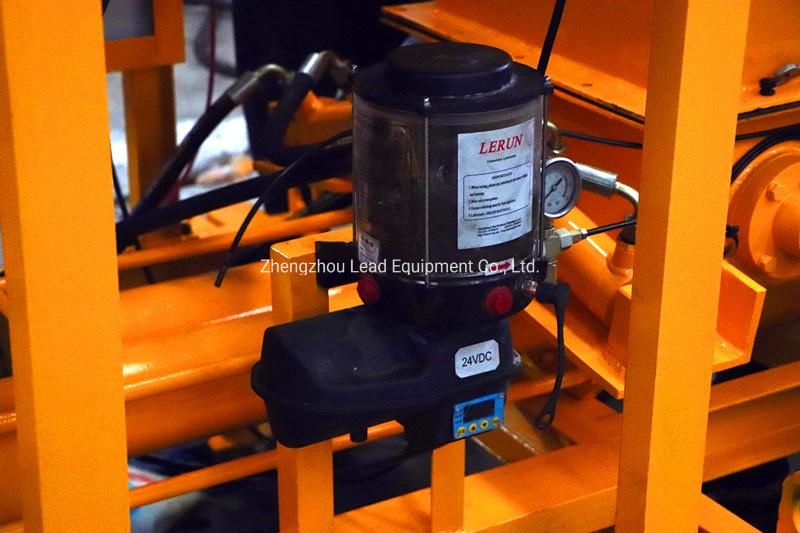

Automatic LubricationCe/ISO/SGS Trailer Concrete Pumping Equipment SuppliesCe/ISO/SGS Trailer Concrete Pumping Equipment SuppliesCe/ISO/SGS Trailer Concrete Pumping Equipment SuppliesCe/ISO/SGS Trailer Concrete Pumping Equipment SuppliesCe/ISO/SGS Trailer Concrete Pumping Equipment Supplies
