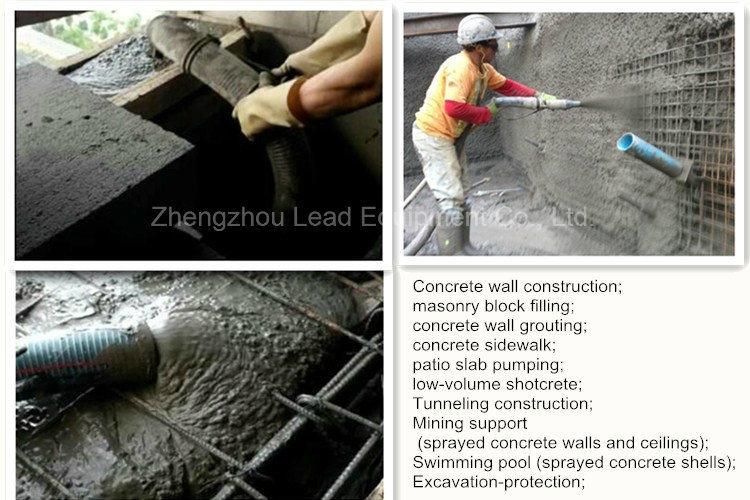

Easy Operation Diesel Mini Concrete Pump for Masonry Block Filling
Zhengzhou Lead Equipment Co., Ltd.- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Productivity：3-8m3 ,H
- Certification：ISO9001: 2000, CE
- Condition：New
Base Info
- Model NO.：LCP8,80-30D
- Color：Yellow
- Pump Work Pressure：38 Bar
- Cylinder Diameter：100mm
- Cylinder Stroke：550mm
- Concrete Slump：7 -15cm
- Acceptable Max. Aggregate Size：20mm
- Conveying Hose Inner Diameter：100,80,50mm
- Net Weight：1650kg
- Transport Package：Standard Export Packing or as Your Request
- Specification：2200*1250*1600mm
- Trademark：Leadcrete
- Origin：China
- HS Code：8413400000
- Production Capacity：1000 Set,Year
Description
Model
Rated Output
Pump work pressure
38 Bar
Acceptable Max. Aggregate Size
20mm
Cylinder diameter
100mm
Cylinder Stroke
Pump Valve
S Valve
Max. Horizontal Conveying Distance
200m
Max. Vertical Conveying Distance
100m
Concrete Slump
Conveying Hose Inner Diameter

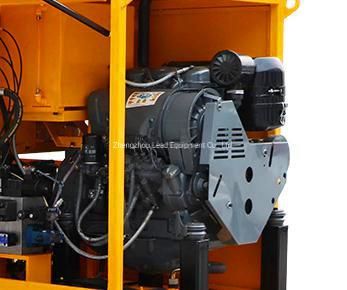

Diesel engine
Dimension(L × W × H)
Net Weight
Features:

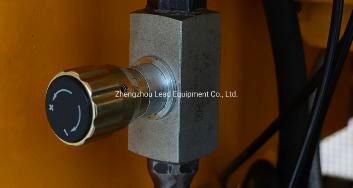

Variable output(LS)

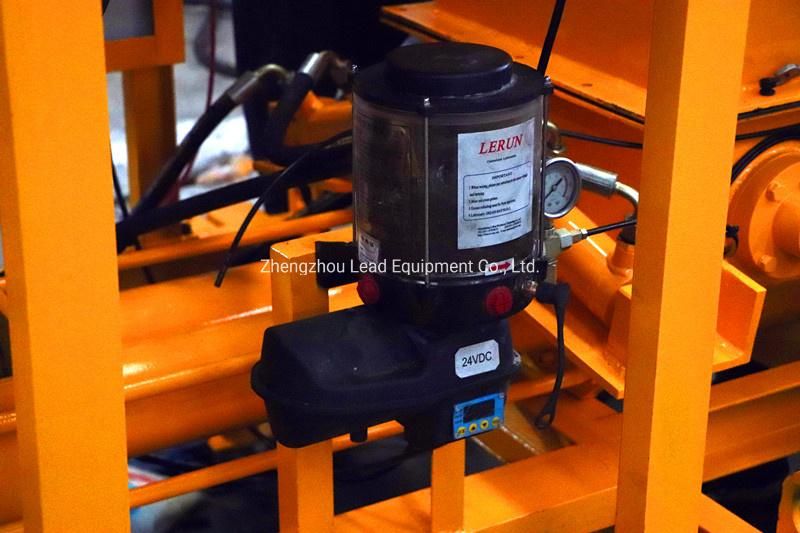

Automatic Lubrication
