Hot Sale Diesel Engine Trailer Concrete Pump with Ce Certificated

Zhengzhou Lead Equipment Co., Ltd.
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Productivity：3-8m3 ,H
  • Certification：ISO9001: 2000, CE, SGS
  • Condition：New

Base Info

  • Model NO.：LCP8,80-30D
  • Color：Yellow
  • Pump Work Pressure：38 Bar
  • Cylinder Diameter：100mm
  • Cylinder Stroke：550mm
  • Concrete Slump：7 -15cm
  • Acceptable Max. Aggregate Size：20mm
  • Conveying Hose Inner Diameter：100,80,50mm
  • Net Weight：1650kg
  • Transport Package：Standard Export Packing or as Your Request
  • Specification：2200*1250*1600mm
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：8413400000
  • Production Capacity：1000 Set,Year

Description

Model

LCP8/80-30D

Rated Output

3-8m3 /h (LS)

Pump work pressure

38 Bar

Acceptable Max. Aggregate Size

20mm

Cylinder diameter

100mm

Cylinder Stroke

550mm

Pump Valve

S Valve

Max. Horizontal Conveying Distance

200m

Max. Vertical Conveying Distance

100m

Concrete Slump

7 -15cm

Conveying Hose Inner Diameter

100/80/50mm

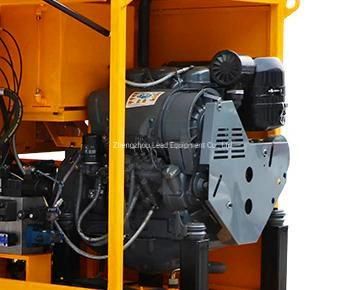

Diesel engine

30kw@1800rpm 4-cylinder, air cooling

Dimension(L × W × H)

3000*1600*1900mm

Net Weight

1650kg

Features:
Variable output(LS)

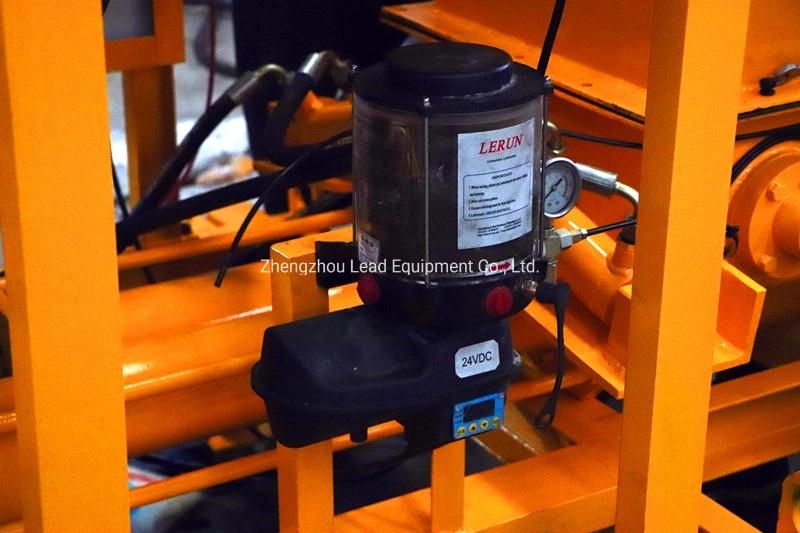

Automatic LubricationHot Sale Diesel Engine Trailer Concrete Pump with Ce CertificatedHot Sale Diesel Engine Trailer Concrete Pump with Ce CertificatedHot Sale Diesel Engine Trailer Concrete Pump with Ce CertificatedHot Sale Diesel Engine Trailer Concrete Pump with Ce CertificatedHot Sale Diesel Engine Trailer Concrete Pump with Ce Certificated
