• Model NO.：RPLT-6000
• Operating Voltage：110-240V
• Usage：Emergency Lighting
• Certification：Ce, ISO
• Bulb Type：Metal Halide Lamp
• Battery Type：Liquid
• Lamp Power：7.25
• IP Rating：IP54
• Hydraulic Mast Extension：Top 9m
• Engine：Kubota D1105-Bg Diesel
• Brakes：Manual
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：ISO9001: 2000. CE
• Trademark：Robust Power
• Origin：China
• HS Code：9405409000
• Production Capacity：200set,Month

MOBILE LIGHT TOWER RPLT-6000 SERIESTechnical specificationsGENERATOR EngineKubota D1105-BG DieselEngine Type3 cylinders,in line,water cooledPrime Power6.7kW / 50Hz     8.4kW/60HzEngine Aspiration1500rpm     1800rpmAlternatorStamford PI044F/4-pole,Brushless,excitationVoltage120,220,230,240VInsulationHFuel Tank Capicity(L)100 LFuel Consumption2.0 L/hMaximum Working Hours50Control systemGU3303 Digital controllerEngine Shutdown ProtectionLow oil press,over speed,over current,high temperature detection,low fuel levelAyxiliary Sockets2Lighting Total Power Of Lamps4x1000WType Of LampMetal halide lampHousing MaterialsGalvanization Reflector HousingLumen4*110,000Lifetime Of Lamp5000 hoursWorking Temperature≤85°CConnection Protection IndexIP54Mast Type3-Sections Telescoping mast 9MTotal HeightTop 9MRotation358 degrees non-continuousOperate For ElevationWinch(Menchanical)Trailer Tow HitchRing/ball hitchStabilier Supports4*ManualTire Size13 inchBrakesManualDIMENSION & WEIGHTDry/Net Weight830/780 kgExtend Dimension(LxWxH)4500*1350*1700mmShipping PackageIron Pallet 1800*1250*1450mm Plywood case 3500*300*260mm Carton 510*510*430mmContainer Load(20GP/40HQ)6/12 setsColorWhite/Yellow/Optional

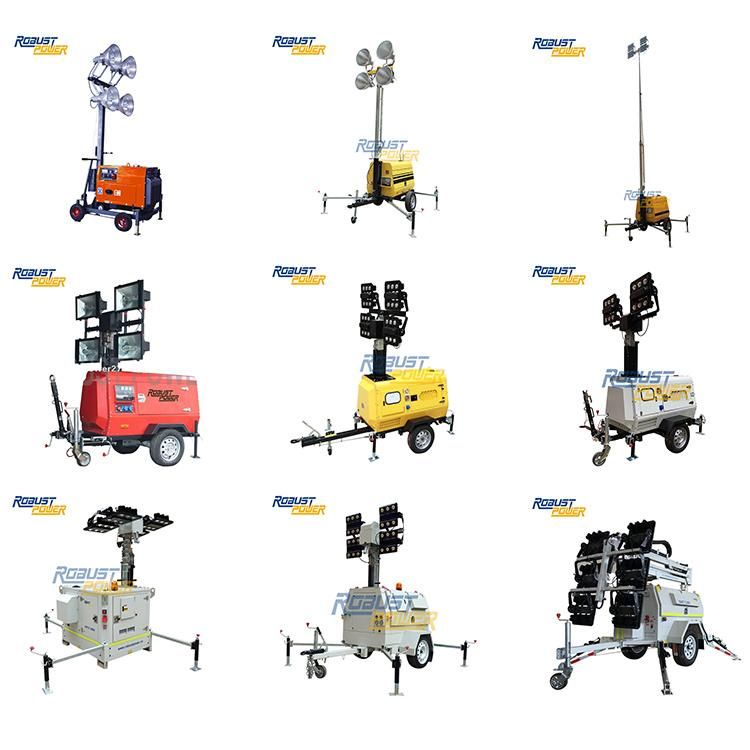

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
