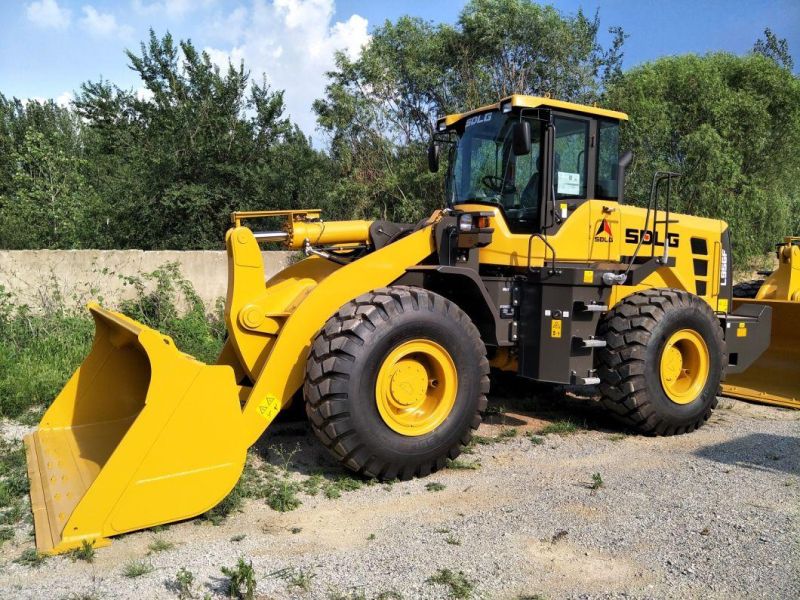

Sdlg L958f 5ton Wheel Loader with 3.2m3 Bucket for Sand and Gravel
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Large Loader
Base Info
- Model NO.：L958F
- Rated Operating Load：5400kg
- Rated Capacity：3.2m3
- Operating Weight：17 130 Kg
- Engine Rated Power：162 Kw
- Maximum Torque：980 Nm
- Tire Dimension：23.5 - 25
- Max Dump Height：3 100 mm
- Lenght：8 280 mm
- Height：3 410 mm
- Transport Package：Nude Packing
- Origin：Jiangsu, China
- HS Code：84295100
- Production Capacity：1000,PCS
Description
Overall dimensionL*W*H 8280*3024*3410mm Wheel base 3300mm Min. ground clearance 420mm Max. dumping height 3100mm Dumping distance 1120mm Dumping angle 45 wheel tread 2190mm steering angle 40 horizontal crossing radius 6870mm Min. turning radius 5890mm Overall parameters Backet capacity 3.2m3(optional 2.7-4.5) Rated load 5400kg operating weight 17130kg Max. tractive force 160kN Max. breakout force 175kN Tipping load 110kN Engine Model WD10G220E21 Type Inline, watercooled, dry cylinder liner, direct injection Rated power 162kW Rated speed 2200r/min Engine displacement 9726ml Max. torque 860N.m Emission standard GB 20891-2007(China Phase II) Min. fuel-consume ratio 215g/kw.h Transmission system Torgue converter single-stage three-element
single-turbine hydraulic torque converter Transmission type Axis-fixed electro-hydraulic transmission Gears Forward 4 reverse 4 Hydraulic system of working device Type Hydraulic pilot control total time 10.0s Brake system Service brake type Air over hydraulic disc type Parking brake type Electric pneumatic caliper disc type Steering system Type Load sensing full hydraulic articulated steering System pressure 16 Mpa Fill capacity Fuel 300L Hydraulic oil 240L Engine 20L Transmission 28.4L Drive axle Forward 30L+ reverse 30L Braking system 4L
single-turbine hydraulic torque converter
