• Model NO.：YG6L 8L 200HS
• Certification：CE
• Condition：New
• Name：Cold Spray Road Line Marking Machine
• Model：Yg-6L,8L Graco200HS Road Marking Machine
• Maximum Spray Width：20cm 45cm
• Applicable Paint：Water-Based Paint, Oil Paint
• Keyword：Airless Painting Machine
• Function：Airless Road Line Marker
• Classified：Single Gun and Double Guns
• Related Product：Thermoplastic Road Marking Machine
• Engine：Gasoline
• Power：4.3HP,7HP
• Load Flow：6L,Min 8L,Min
• Maximum Output Pressure：25MPa,30MPa
• Nozzle Standard Configuration：0.027
• High Pressure Pipe Strength：40MPa
• Maximum Nozzle Size：0.047
• Transport Package：Shipping, Wooden, Cabinet
• Specification：customized
• Trademark：Yugong
• Origin：China (Mainland)
• HS Code：8479109000
• Production Capacity：500sets,Month

Basic Info.

Model NO. YG6L 8L 200HS Certification CE Condition New Name Cold Spray Road Line Marking Machine Model Yg-6L/8L Graco200HS Road Marking Machine Maximum Spray Width 20cm 45cm Applicable Paint Water-Based Paint, Oil Paint Keyword Airless Painting Machine Function Airless Road Line Marker Classified Single Gun and Double Guns Related Product Thermoplastic Road Marking Machine Engine Gasoline Power 4.3HP/7HP Load Flow 6L/Min 8L/Min Maximum Output Pressure 25MPa/30MPa Nozzle Standard Configuration 0.027 High Pressure Pipe Strength 40MPa Maximum Nozzle Size 0.047 Transport Package Shipping, Wooden, Cabinet Specification customized Trademark Yugong Origin China (Mainland) HS Code 8479109000 Production Capacity 500sets/Month

Product Description

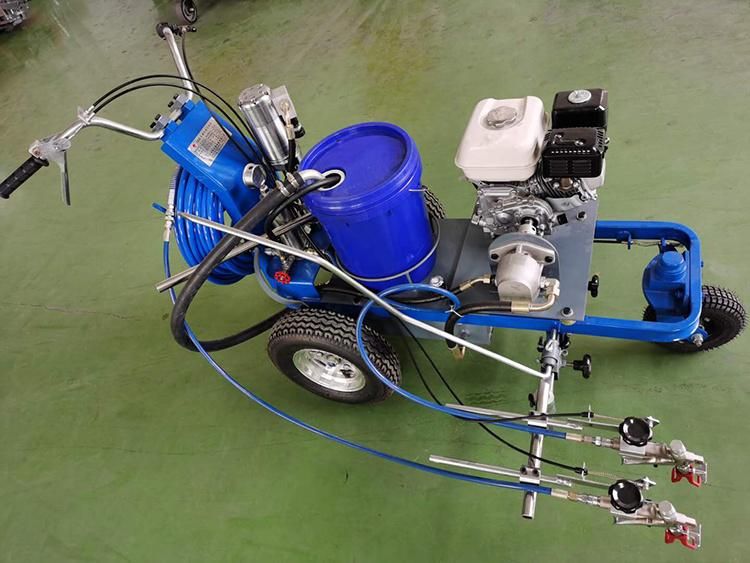

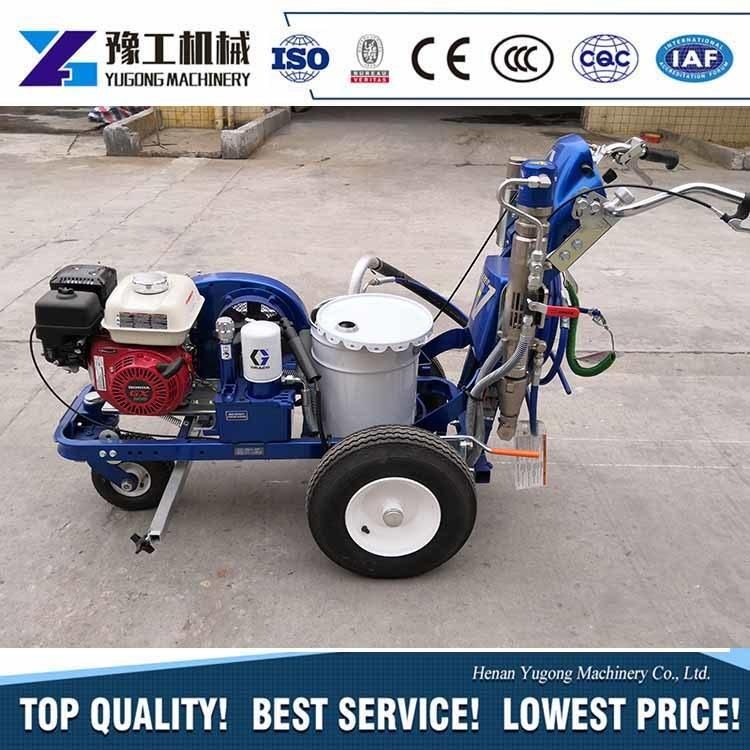

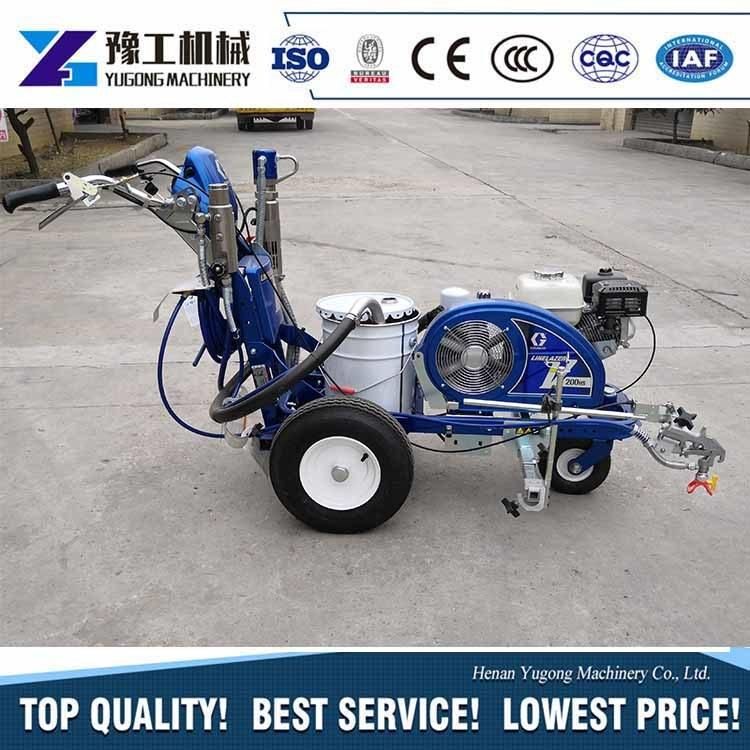

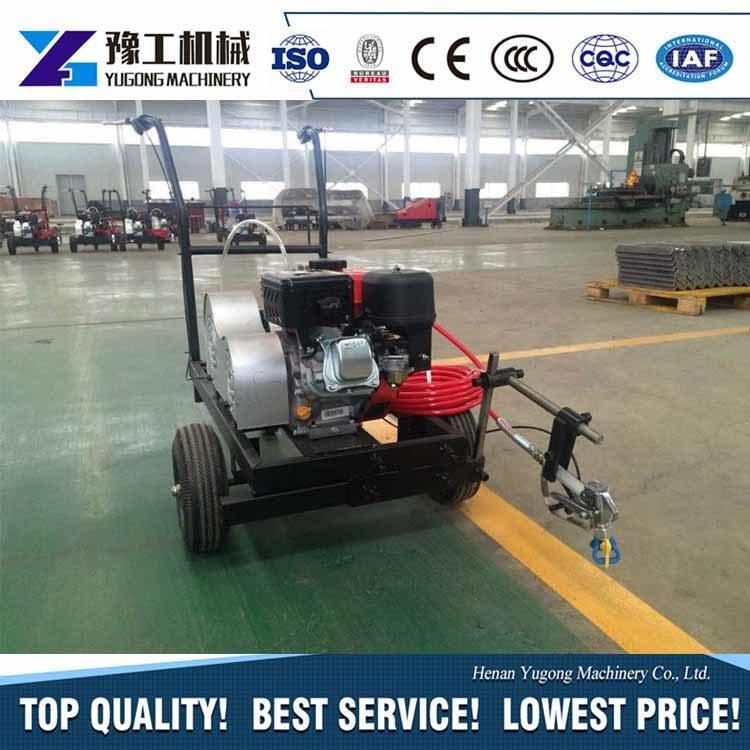

Road sign marking line equipment airless spraying road marking machine

YG Machinery is specializes the road machineries, especially the road marking machine, including the hot melt (thermoplastic) road line marking machine and cold paint road marking machine.

Application
This product is widely used for marking urban roads, expressways, bridges, railway,factory, coal mine, parking lot, garages, plazas and airport runway, sports ground . Pavement construction machinery with different restrictions, guidelines and warnings on the level ground is delineated.
It is a machine in the flat ground to draw different constraints and warnings and other rules to limit the signs of the road construction machinery.
This product is suitable for colorant, varnishes, enamels, medium viscosity emulsion paint oil.

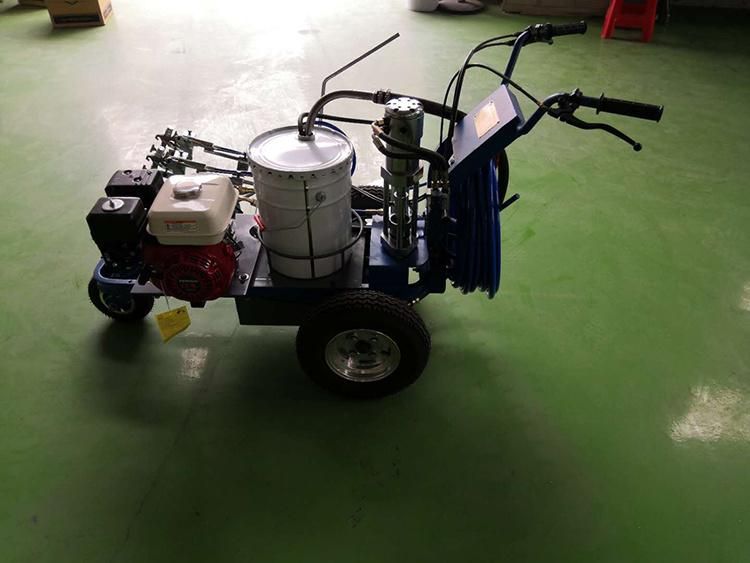

Product Structure
1. plunger pump: the use of all-oil intrusion type of oil, hydraulic power, reduce wear and tear, the service life up to 40,000 hours or more.
2. gasket: the United States imported raw materials carefully designed from casting, ultra-wear, whether winter or summer, can be used freely, Naisuan Jian, fatigue. Replacement is simple and convenient.
3. suction pipe network: vertical body, suction tube easy to clean care, one can move independently, easy construction and operation. Stainless steel processing anti-corrosion, the wall does not fall off is not blocked. Suction filter to solve the liquid into the small, easy to plug the problem, increase the liquid into the area, narrow space, built-in increased filter.
4. the valve body: into the liquid valve and the outlet valve with ball-type ceramic beads super wear-resistant, than the traditional ball out of the life of several times, no face, not broken sitting.
5. the frame: the use of vertical design compact and practical, removable, the frame can easily winding 30 meters high pressure hose, the overall equipment easy to care.

Parameter

	Single gun	Double gun
Model	YG-6L	YG-8L
Engine power	4.3HP (Domestic gasoline engine, can change the import engine     )	7HP
Load flow	6L/min	8L/min
Maximum output pressure	25mpa	30mpa
Nozzle standard configuration	517(15cm below )	0.027
High pressure pipe strength	35mpa	40mpa
High pressure pipe length standard	Ф6*10m	Ф6*2 Ф10*10m
Weight	72kg	128kg
Maximum spray width	20 cm	45cm

How To Choose Road Marking Machine?
1. Do you need the cold spraying road marking machine or the thermoplastic road marking machine?
2. If you need the cold paint type, do you need the single gun or the double guns road marking machine?

Packaging & Shipping

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

Related Products

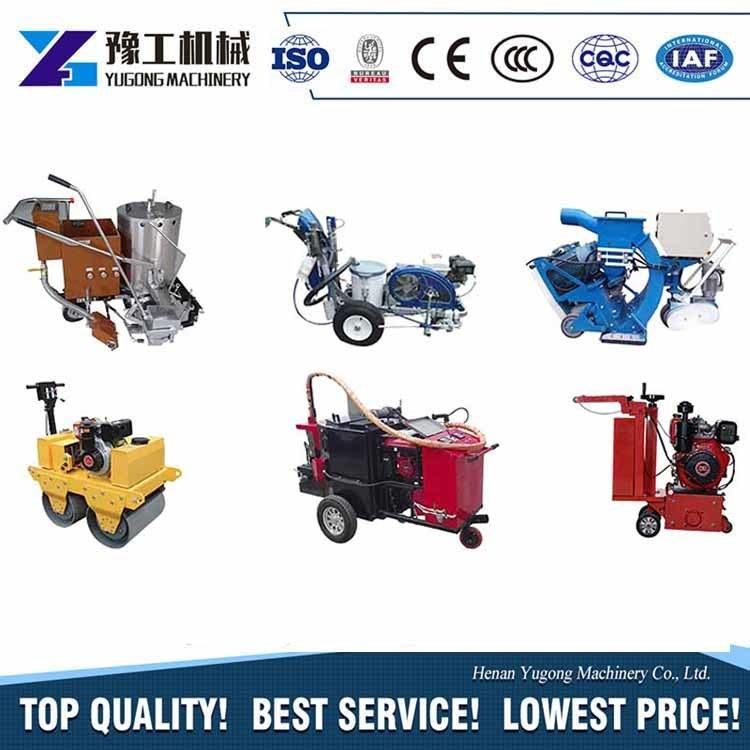

YG Machinery has specialized in the Road Machine for 21 years. Besides the road marking machine,Concrete Floor Shotblasting Machine, Road Roller, Road Crack Sealing Filling Machine, Concrete Milling Machine, Concrete Floor Grinder is also on hot sale.
