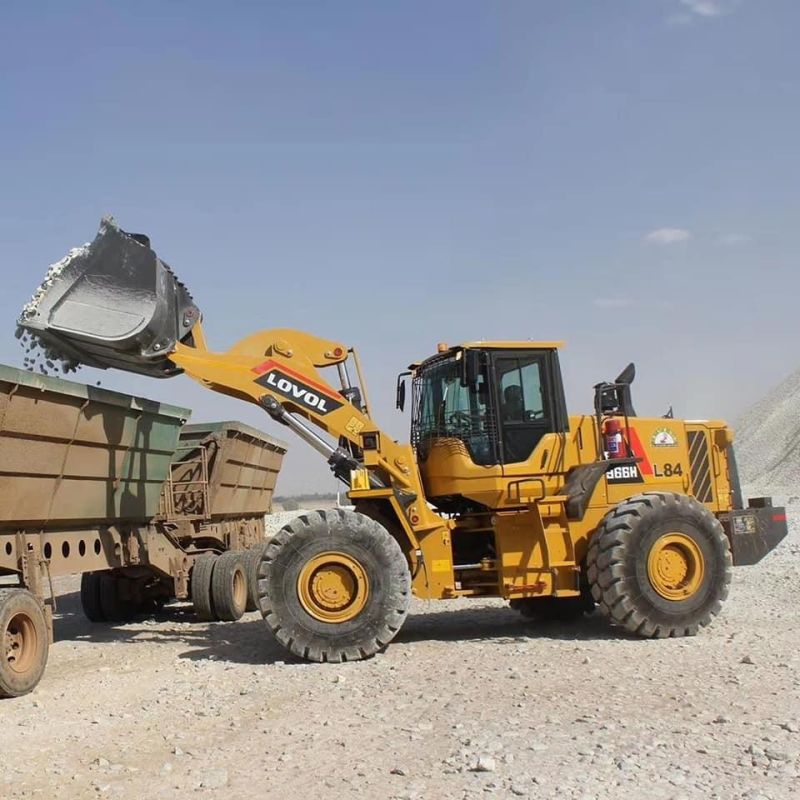

Foton Lovol Front End Loader FL966h Wheel Loader 6ton Wheel Loader in Indonesia
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：FL966h
- Type：Medium-sized Loader
- Rated Load Mass (Kg)：6000
- Lifting Height(mm)：5895
- Max. Dumping Height(mm)：3150
- Dumping Reach(mm)：1310
- Mini. Ground Clearance(mm)：445
- Wheel Base(mm)：3400
- Engine Model：Weichai Wd10g240e21
- Transport Package：Nude Packing
- Origin：Jiangsu, China
- HS Code：842951000
- Production Capacity：1000,PCS
Description
ParameterFL966H Operating Weight(kg) 21710 Bucket Capacity(m3) 4 Rated Load(kg) 6000 Max. Traction Force(kN) 175 Max. Breakout Force(kN) 185 Max. Gradeability(°) 29 Dumping Angel(°) 45 Lifting Height(mm) 5895 Max. Dumping Height(mm) 3150 Dumping Reach(mm) 1310 Mini. Ground Clearance(mm) 445 Wheel Tread(mm) 2250 Wheel Base(mm) 3400 Mini. Turning Radius of Outside Tire(mm) 7130 Dimension(L×W×H mm) 8530×3050×3400 Engine Model Weichai WD10G240E21 Cylinder No.-Cylinder Dia.×Stroke(mm) 6-126*130 Max. Torque (N·m) 980 Rated Power(kW) 178 Rated Speed (rpm) 2200 Transmission Type Electronically controlled shifting and fixed shaft No. of Gears Front4back3 Max. Speed km/h 38.0 Front 1 (km/h) 6.5 Front 2 (km/h) 12.0 Front 3 (km/h) 23.5 Front 4 (km/h) 38.0 Back1 (km/h) 6.5 Back 2 (km/h) 12.0 Back 3 (km/h) 23.5 Tire Size 23.5-25 Ply rating of Tire 20 Turning Angle 38º Boom Lifting Time(s) 5.7 Total Cycle Time(s) 11.0 Brake Air Pressure(Mpa) 0.784 Oil Tank Capacity(L) 350 Hydraulic Oil Tank Capacity(L) 210 Voltage (V) 24
