Manual Hydraulic Crucible Pot Trolley Loader for Fire Assay Laboratory
Qingdao Yosion Intelligent Technology Co., Ltd.- Certification：ISO
- Condition：New
- Rated Load：<1t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：YHSD-25,50
- Type：Crucible Loader
- Refractoriness (ºC)：1580< Refractoriness< 1770
- Lifting Height：1500mm
- The Max.Loading Capacity：400kg
- Transport Package：Export Packing
- Specification：customized
- Trademark：Yosion
- Origin：China
- Production Capacity：1000 PCS,Year
Description
Basic Info.
Model NO. YHSD-25/50 Type Crucible Loader Refractoriness (ºC) 1580< Refractoriness< 1770 Lifting Height 1500mm The Max.Loading Capacity 400kg Transport Package Export Packing Specification customized Trademark Yosion Origin China Production Capacity 1000 PCS/YearProduct Description

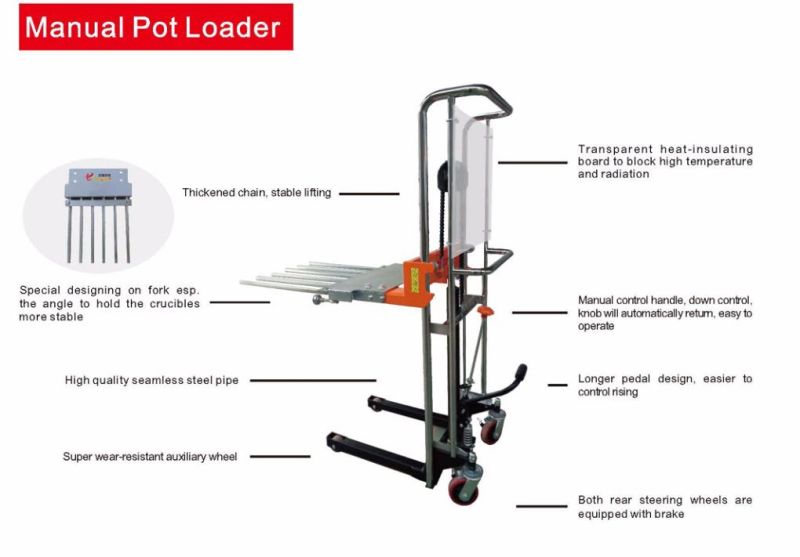

Features:
· 25 place/50 place one-time pots loading capacity, saving time and increase efficiency.
· Easy to operate with pedal and handle to realize lifting and pots placing action.
· High-intensity steering wheel with brakes, safe and stable, easy to move.
· Customized loading capacity to meets client's needs.
Technical Parameters:
Model | The Max.Loading Capacity | Lifting Height | Fork Size | Pair with |
YHSD-25 | 400kg | 1500mm | 900x650x60mm | 50g/65g or can customize to any crucible size |
YHSD-50 | 400kg | 1500mm | 900x1200x60mm | 50g/65g or can customize to any crucible size |
CUSTOMIZED PRODUCTS ARE AVAILABLE.

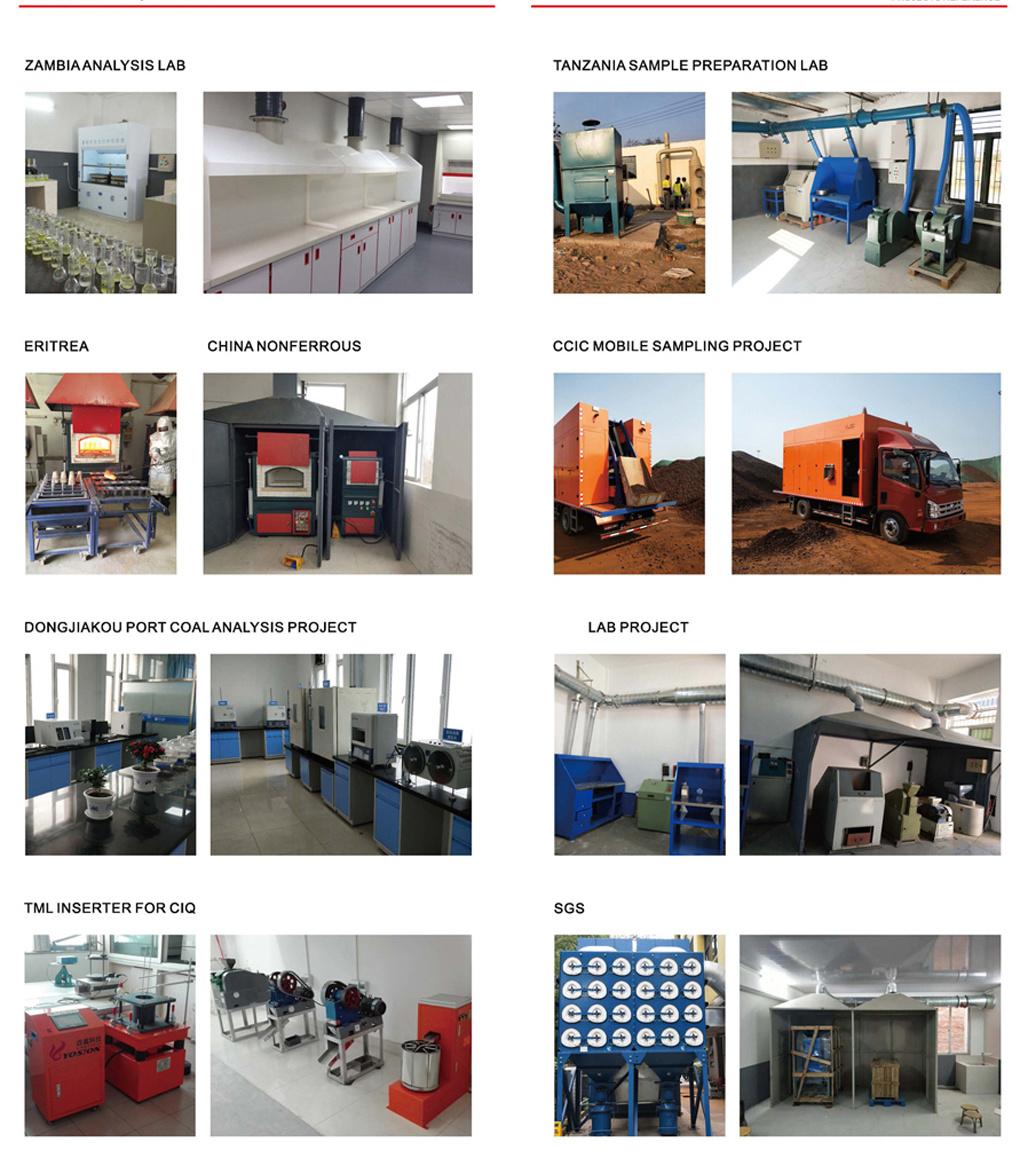

Projects Reference
