• Model NO.：GZ-5800
• Air Compressor：0.5-0.8mpa
• Connecting Hose Length：15m, Max. 120m
• Pressure：High Pressure
• Brand：Zhenhuan
• Transport Package：Wooden Case
• Specification：SGS
• Trademark：Zhenhuan
• Origin：Jiangsu, China
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. GZ-5800 Air Compressor 0.5-0.8mpa Connecting Hose Length 15m, Max. 120m Pressure High Pressure Brand Zhenhuan Transport Package Wooden Case Specification SGS Trademark Zhenhuan Origin Jiangsu, China Production Capacity 100 Sets Per Year

Product Description

This hydraulic foam spraying machine is suitable for various construction, can spray a variety of two-component materials, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam, tanks, pipe coating, cement layer protection, wastewater disposal, roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation, etc.



Feature of hydraulic foam spraying machine

• Double cylinder supercharging device, easily providing adequate working pressure

• Pneumatic motor
• High precision proportion pump
• Main machine heating system
• Euipped with emergency switch

Main technical data of hydraulic foam spray machine

No.	Item	Technical data
1	Model number	GZ-5800
2	Flux capacity	2-12kg/min
3	Hydraulic pressure	6-18MPa
4	Heating power	22kW
5	Equipped pipe length	15 meters heating pipe (can be extended to 120m)
6	Air compressor	0.5-0.8MPa (to be equipped by buyer)
7	Dimension	850 x 1000 x 1600mm
8	Weight	360kg
9	Ratio between A and B	1 : 1
10	Driven type	Hydraulic
11	Voltage	380V, 3P, 50Hz
12	Max. output pressure	36Mpa

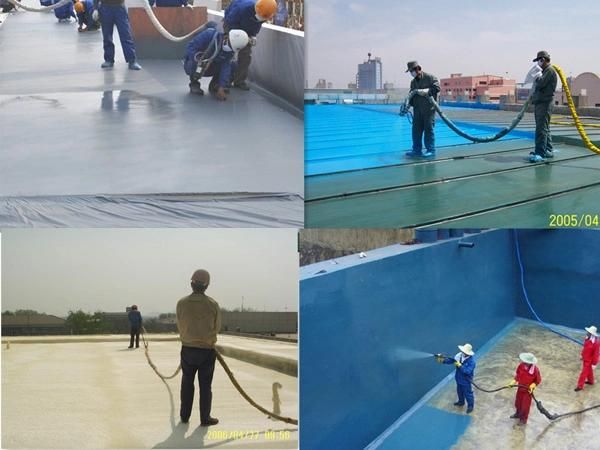

Application of hydraulic foam spraying machine

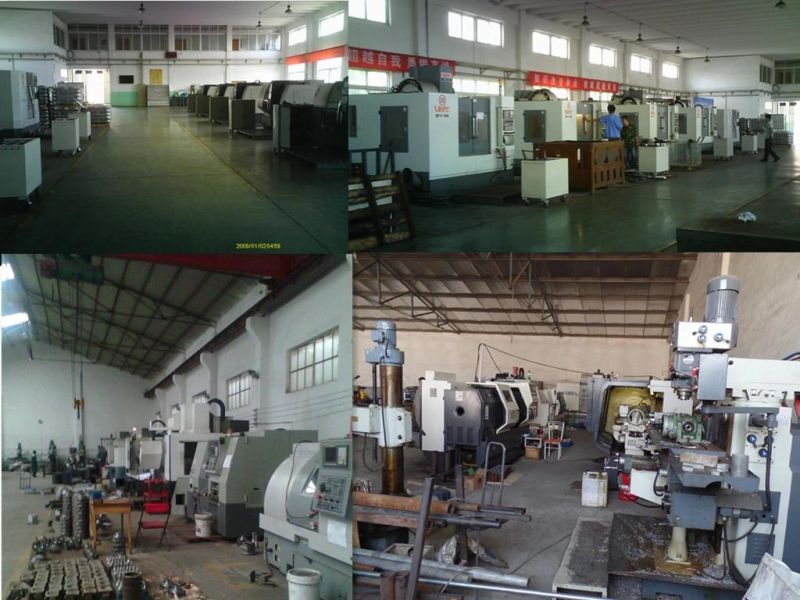

Workshop of hydraulic foam spraying machine

Our Nantong Zhenhuan Trade Co., Ltd. is specialized in machines for more than 15 years, and has certified by TUV, BV, SGS, with good reputation and credit. We can provide you not only good quality hydraulic foam spraying machine but also good after-sale service.

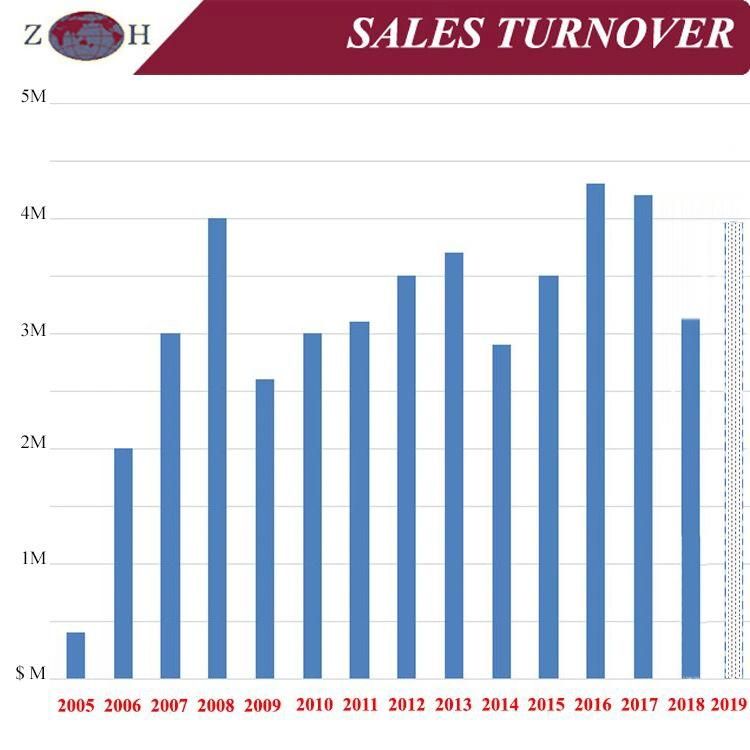

Sales Turnover

Certification
