• Model NO.：WSFQ
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：84283200
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. WSFQ Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 84283200 Production Capacity 50 Sets Per Month

Product Description

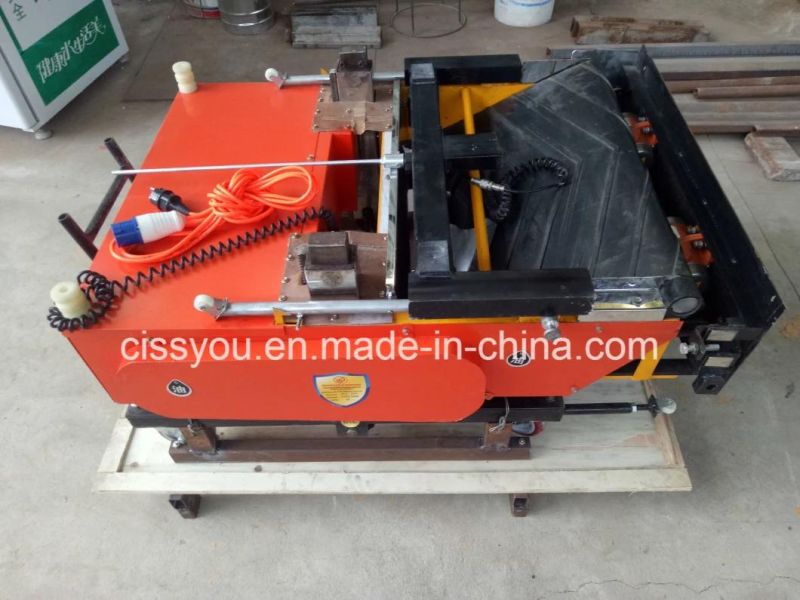

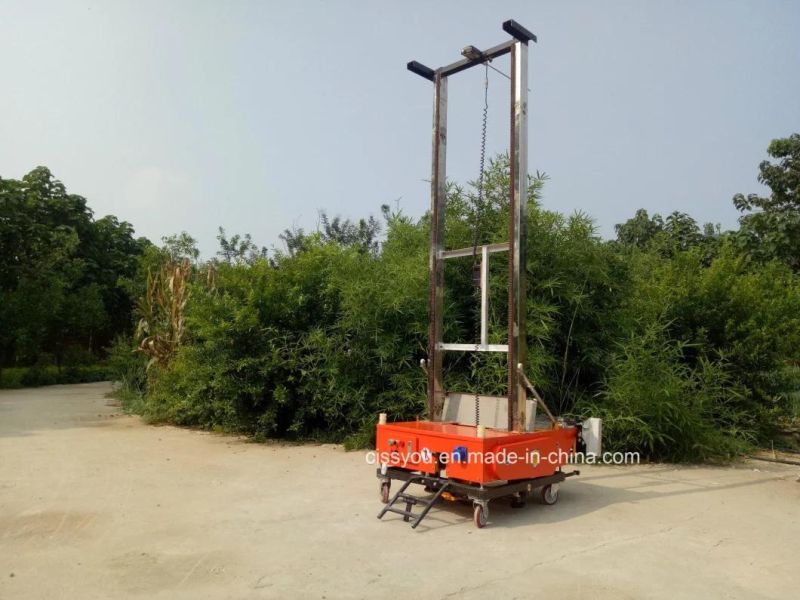

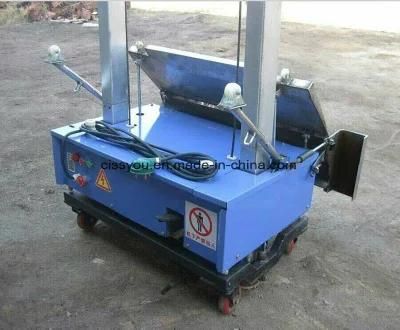

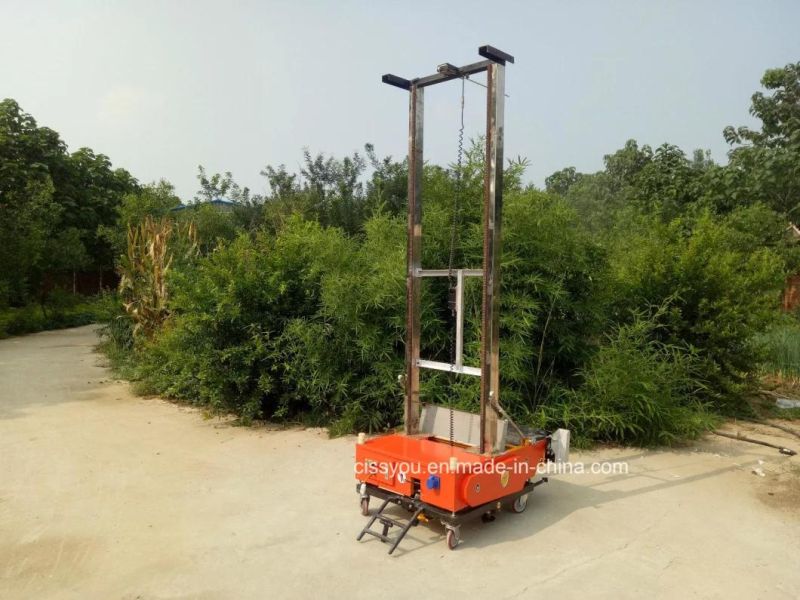

             Automatic concrete cement wall rendering plaster machine






Automatic plastering machine's main features:

1. It is good machine instead of handmade in construction plastering area.
2. The capacity is as 15 professional plasterers.
3. The quality is subject to international wall plastering standard.
4. Very easy and simple to operation
5. Saving more than 20% raw material (cement &sand)
6. It can plaster the wall automatically and go up and down automatically.
7. It can plastering by one-time. The thickness of the ash can be adjusted.
8. Easy to move, without removing any parts of the machine.
9. It has large capacity hopper, you can put the ash/lime/gypsum in it one-time.
10. Easy to operate. One or two person can operate.
11. The quality is up to the international standard. Leakage protection device with high sensitivity, suitable for construction site safety and reliability
The main technical performance indicators.

Single-phase motor	0.65kw	Startup mode	Control button ( distribution box)
Motor speed	1440n/min	Reducer	Reduction ratio30 :1
Plastering speed	5m/39s	Plaster width	0.3m- 0.8m
Plastering height	0.5- 5m	Plaster efficiency	2.56 /39s
Plastering time	39s	A plastered area	2.56/39s
Secondary calender time	39s	Secondary pressure light area	2.56/39s
Flatness error	≤3mm	Vertical error	≤ 3mm
Flatness, plaster thickness , Plaster joints, adjust the motor	24v 30w	Walking speed	10m/ Minute
Vertical adjustment motor	24v 30w	Alignment guide motor	550W
Walking mot	550w	Reducer	30 :1
Lifting motor	0.65kw	Reducer	30 :1
Console shape size	30cm*50cm*80cm	Console weight	20kg
The plaster drive motor	650w	Reducer	30 :1
The main rail height	176cm	Positioning rail height	176cm
