• Model NO.：FGF-60
• Power(W)：2.2kw
• Machine Type：Asphalt Filling Machine
• Fuel Type：Diesel Burner
• Generator Model：Honda Ec2500cl
• Material Tank Volume：Material Tank Volume:
• Material Hose Length：4.5m
• Weight：165kg
• Warranty：1 Year
• Heating Medium：Conduction Oil
• Walking Mode：Hand Push
• Transport Package：Wooden Case or According to Customers′ Requirement
• Specification：1500x800x1250mm
• Trademark：FURD
• Origin：Shandong, China (Mainland)
• Production Capacity：1000pieces,Year

Basic Info.

Model NO. FGF-60 Power(W) 2.2kw Machine Type Asphalt Filling Machine Fuel Type Diesel Burner Generator Model Honda Ec2500cl Material Tank Volume Material Tank Volume: Material Hose Length 4.5m Weight 165kg Warranty 1 Year Heating Medium Conduction Oil Walking Mode Hand Push Transport Package Wooden Case or According to Customers′ Requirement Specification 1500x800x1250mm Trademark FURD Origin Shandong, China (Mainland) Production Capacity 1000pieces/Year

Product Description

Application:

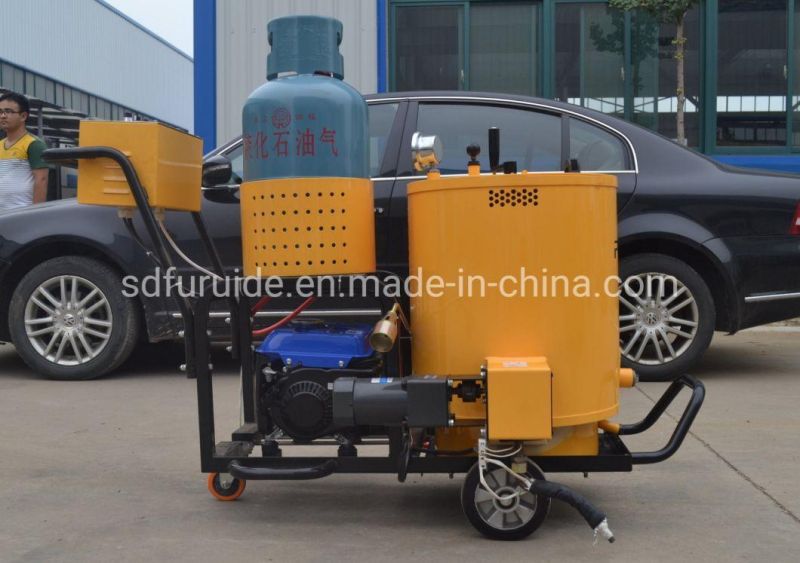

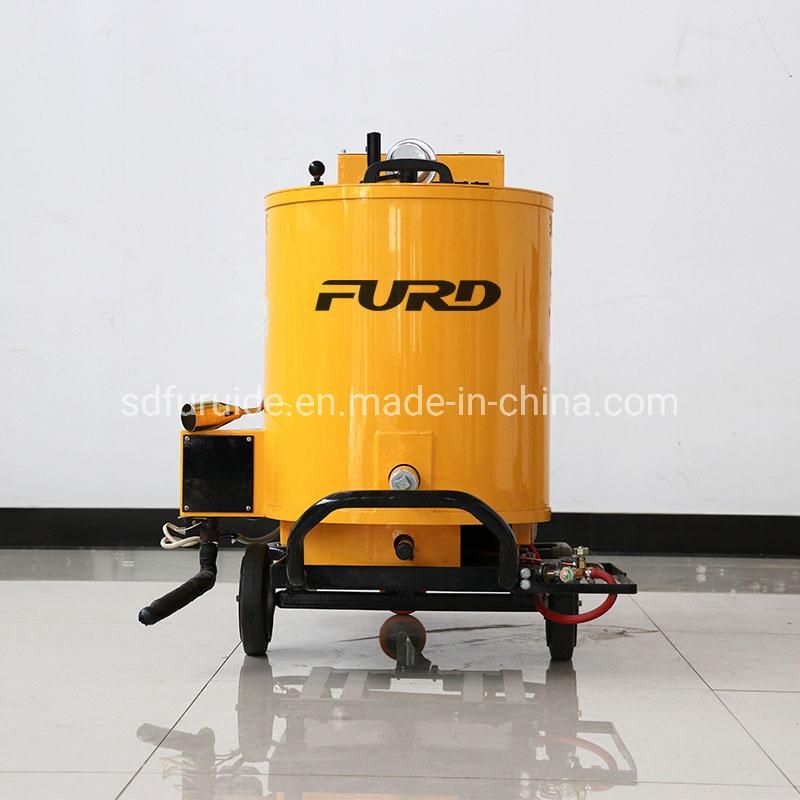

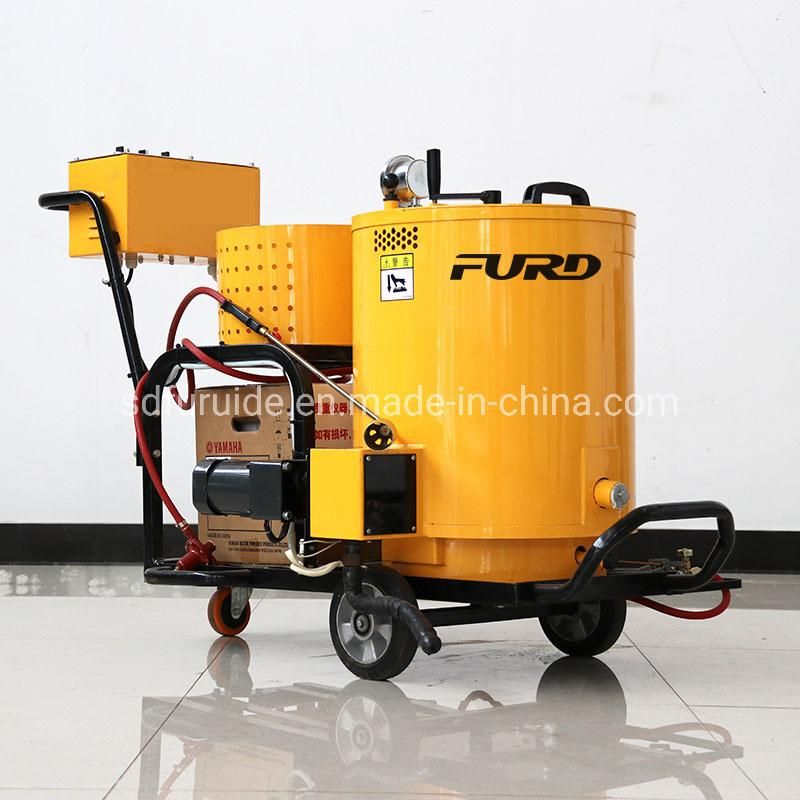

Hand Push asphalt crack repair machine Road crack sealing machine FGF-60

Crack Filling Machine

It is used for auto heating and melting various crack filling material,

and fills the crack filling material pressure into road expansion, contraction crack and crack.

It's also a pavement equipment for highways, airport runways, floor surface.



Feature:

Crack Sealing Machine

1.Famous band electric motor,stable performance

2.Liquefied gas heating,easy to operate

3.Large asphalt tank

4.Whole working process heating, avoid blocking

FGF-60 Road Crack Sealing Machine is the first line of the pavement maintenance program. Done properly it can add 5-7 years or more to a pavements lifecycle. Used for the concrete and asphalt road crack filling.Asphalt Crack Sealing Machine

Model	FGF-60	Size (Length*Width*Height)	1500*800*1250 mm
Volume	60L	Weight	165kg
Heat Conduction Oil Volume	45L	Shaft Length	Standard 4.5m (6m optional)
Generator Set	Honda EC2500CL Gasoline Generator	Control System	ECC
Heating Source	Diesel Combustor	Molten Material Time	45minutes
Applicable Material	Asphalt, crack sealing material	Sealing Speed	0-25m/min

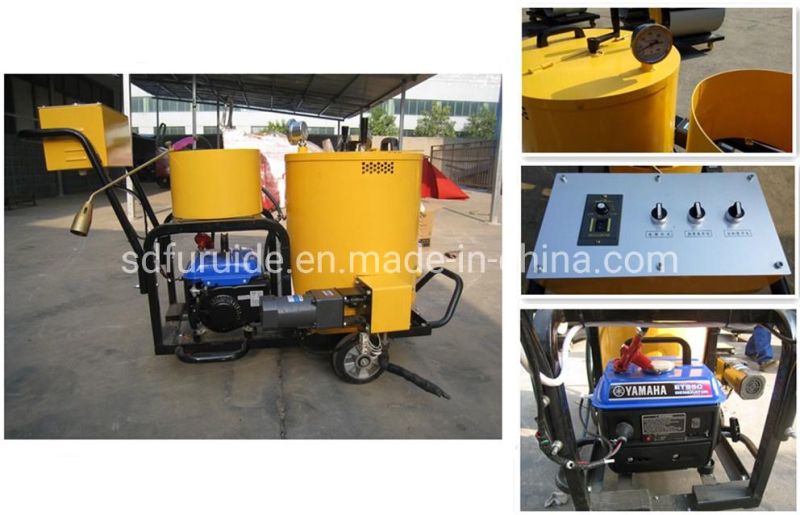

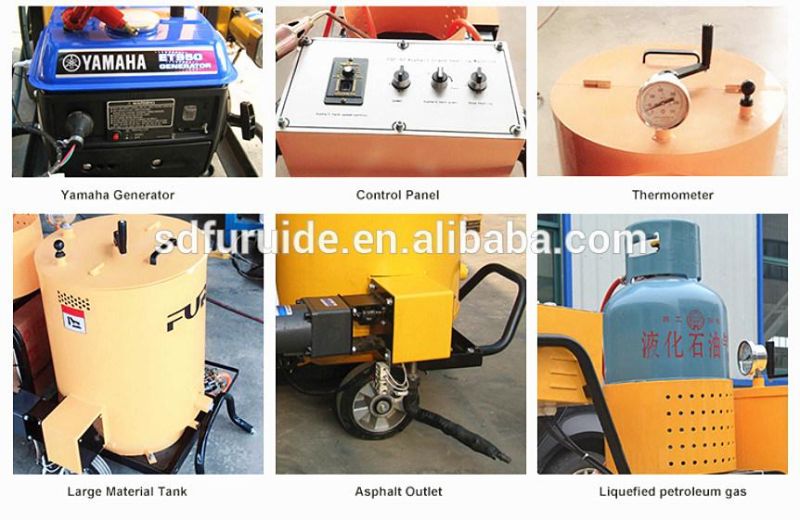

Detailed Images






Our Company

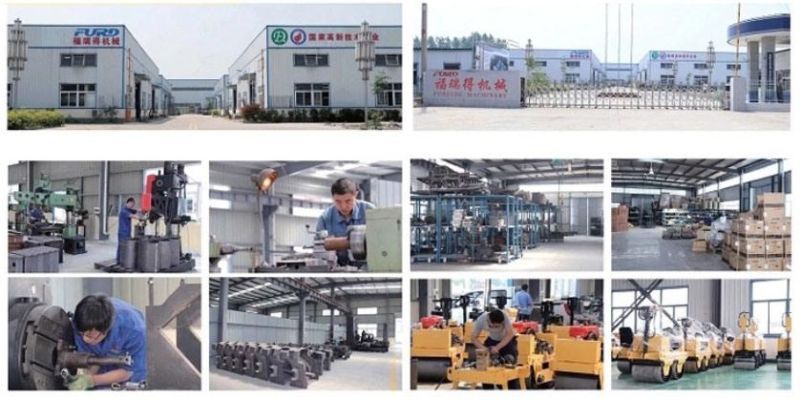

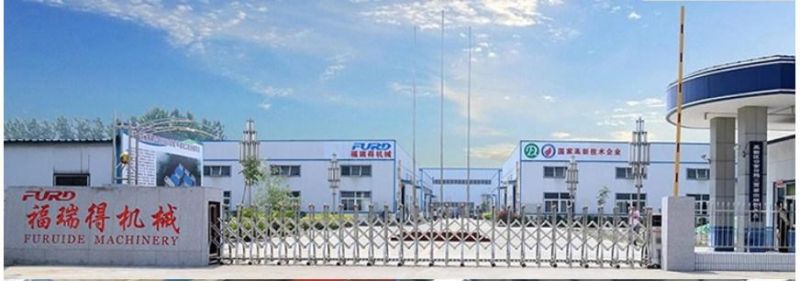

Jining Furuide Machinery Manufacturing Co., Ltd is high-tech enterprise specialized ín research& development and manufacture of Vibratory Road Roller since 2006. Our main products are: Road Roller, Concrete Laser Screed, Concrete Truss Screed, Mobile Light Tower, Road CrackSealing Machine with CE, EPA, ISO 9001 and ISO1400 certification.

We have professional R&D team in design and producing all of light construction machines,with strict quality control system and continued efforts to ensure high quality of our products.Our products have good quality and competitive prices, have been exported to more than 50countries of the world, such as Australia, America, Canada, Russia, Brazil, Qatar, UAE and soon. FURD aim to supply firstclass products to the domestic market and the global.

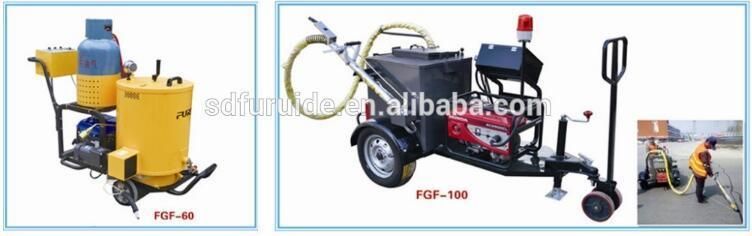

Related Products
