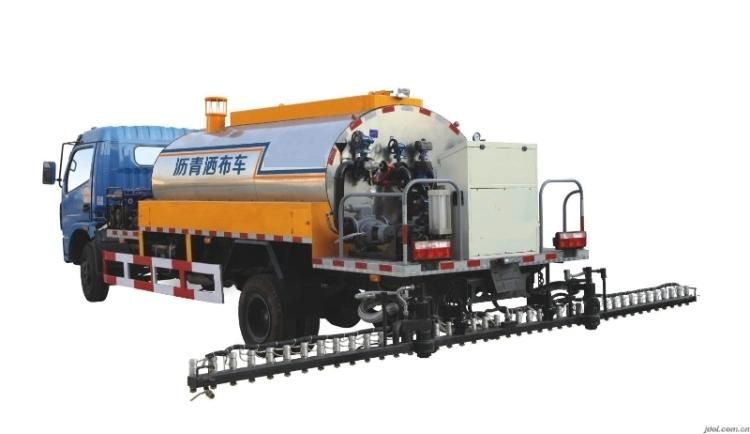

• Model NO.：Asphalt Distributor
• Mixing Method：Continuous Drum
• Automatic Grade：Automatic
• Product Capacity：40～400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• After-Sales Service Provided：Engineers Available
• Controller：Intellgent
• Nozzle：39(One Control Three)
• Thickness of Shell：4mm
• Transport Package：Sea Worthy Packing
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8479102100
• Production Capacity：5000PC,Year

Bitumen TankCapacity4000 / 5000 / 6000 / 8000 litresThickness of shell4 mm.ShapeRectangular / Oval shape with light resin bonded rock wool insulation 50 mm. thick.Manhole600 mm. dia.FilterRemovable screen filter.Filling of Tank(i) Through manhole. (ii) Through self-priming by own pump.TemperatureDial type thermometer of range 0° to 250° (minimum).Tank Contents MeasurementWith calibrated dipstickPower PackEngine4 - Stroke twin cylinder air / water cooled diesel engine of 25 hp at 2000 RPM.Bitumen PumpShuttle Block Type 380 to 450 litres per minute.CompressorDouble cylinder 3 HP. Pressure 9 Kg./sq. cm. maximum. Capacity 360 litres.HeatingType of BurnerSingle high pressure oil burner for adequate heating of viscous binder, oil consumption 20 lt/hr.Tank Capacity50 litres.Fire Tube230 mm. dia.Spray BarTypeFolding type fitted with pressure gauge, regulating valve etc.WidthVariable width from 2.4 to 4.2 metres by extension bar.Width AdjustmentBy closing of nozzles.Adjustment of heightMechanical.Pre-heating of spray barBy full circulation of preheated bitumen.Distance of nozzles225 mm.Spraying pressureTo be adjusted between 0-6 bars.Hand lances2 NosCleaningBy air pressure or diesel oil.Rate of application0.3 to 1.0 Kg. / sq.m. Calibration chart will be provided inside the driver's cabin and at the operator's platform
Operation
The operation of the spray bar is from operator's platform at the rear.
Truck
TATA 1613 SE Truck Chassis of WB-4225 mm. and 4x2 configuration or equivalent. The driver's cabin will be built as per R.T.O. requirement. The battery used for starting the diesel engine conforms to ISI.
ISI Specifications
All the bought-out components conform to relevant ISI specifications and are of reputed make.
Optional
Trolley mounted in place of Truck mounted.
