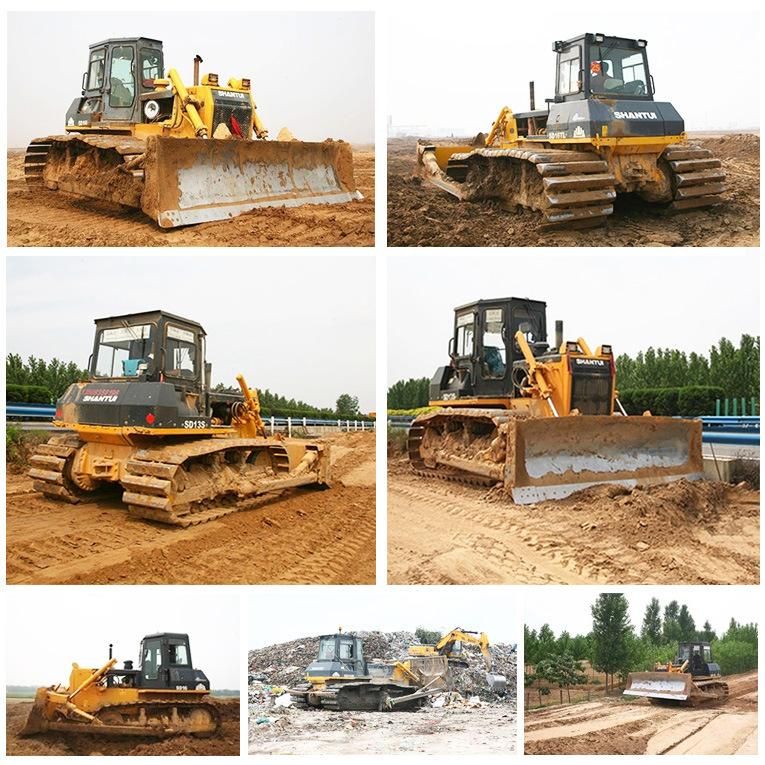

Chinese Shantui SD13 Crawler Small New Mini Bulldozer for Sale
Shanghai Super-Above Industry Holdings Co., Ltd.- Transmission：Power Transmission
- Walking Mode：Crawler
Base Info
- Model NO.：SABDD
- Load and Unload Method：Rotary
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Operating Weight：13 T
- Piston Displacement：8.27L
- Gradeability：30
- Ripper Type：Three-Shank Ripper
- Ripping Depth of Ripper：572 mm
- Lifting Height of Ripper：592 mm
- Width of Track Shoe：460mm
- Pitch：190mm
- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8429119000
- Production Capacity：5000PC,Year
Description
Power transmitting systemTorque converter 3-element, 1 stage, 1 phase Transmission Forced connected, planetary gear Main drive Spiral bevel gear, splash lubrication Steering clutch Wet, Multi-disc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake Steering brake Wet, floating, band type foot stepping brake with hydraulic helping Final drive 2-stage speed reduction of spur gear, splash lubrication FEATURES & APPLICATION
FEATURES & APPLICATION
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal
operations.The wet type steering clutch and brake can prolong the service life and are interlinked with each other to guarantee
the rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions
for roads, farms, water conservancy projects, municipal projects, and energy projects.
