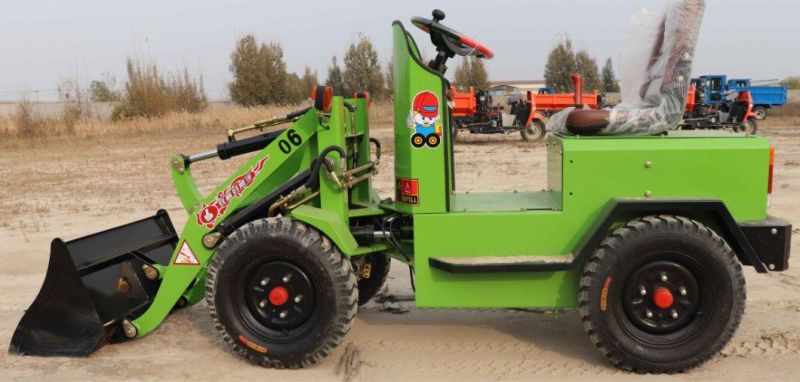

Small Farming Cheap Electric Mini Front End Compact Battery Wheel Loader for Sale
QINGDAO GUDAO ANDES MACHINERY CO., LTD.- After-sales Service：One Year
- Warranty：One Year
- Certification：ISO, CE
- Condition：New
- Rated Load：<1t
- Transmission：Hydraulic
Base Info
- Model NO.：GDDC-0.4T
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Battery Type：5 Units 12V*100ah
- Drive Motor：1800W*2
- Hydraulic Motor：1500W
- Max. Discharge Height：2200m
- Width：900mm
- Height：1400mm
- Length：2900mm
- Tire Model：500-12
- Color：Red,Green,Orange,Yellow
- Charging Time：6 Hours
- Working Time：6-8 Hours
- Walking Type：Wheel
- Scoop Volumen：0.2 Cbm
- Net Weight：800kg
- Technical Support：Video Call and Overseas Aftersale Point
- Transport Package：Standard Packing
- Specification：400KG
- Trademark：GUDAO ANDES
- Origin：China
- HS Code：8429510000
- Production Capacity：500 Set,Year
Description
TECHNICAL PARAMETERITEM NAME DESCRIPTION 1 Mini electric wheel loader GDDC-0.4T 2 Dimension 2900*900*1400MM 3 Scoop volume 0.2 m³ 4 Load capacity 400KG 5 Height 1400MM 6 Max. discharge height 2200MM 7 Battery type 5 Unit 12V*100Ah 8 Drive model 4×4 9 Loader type Articulado 10 Drive motor I Front: 1800W 11 Drive motor II Rear:1800W 12 Hydraulic electric motor 1500W 13 Tire 500-12 (Air/Solid) 14 Color Green/Red/Orange/Yellow Customization

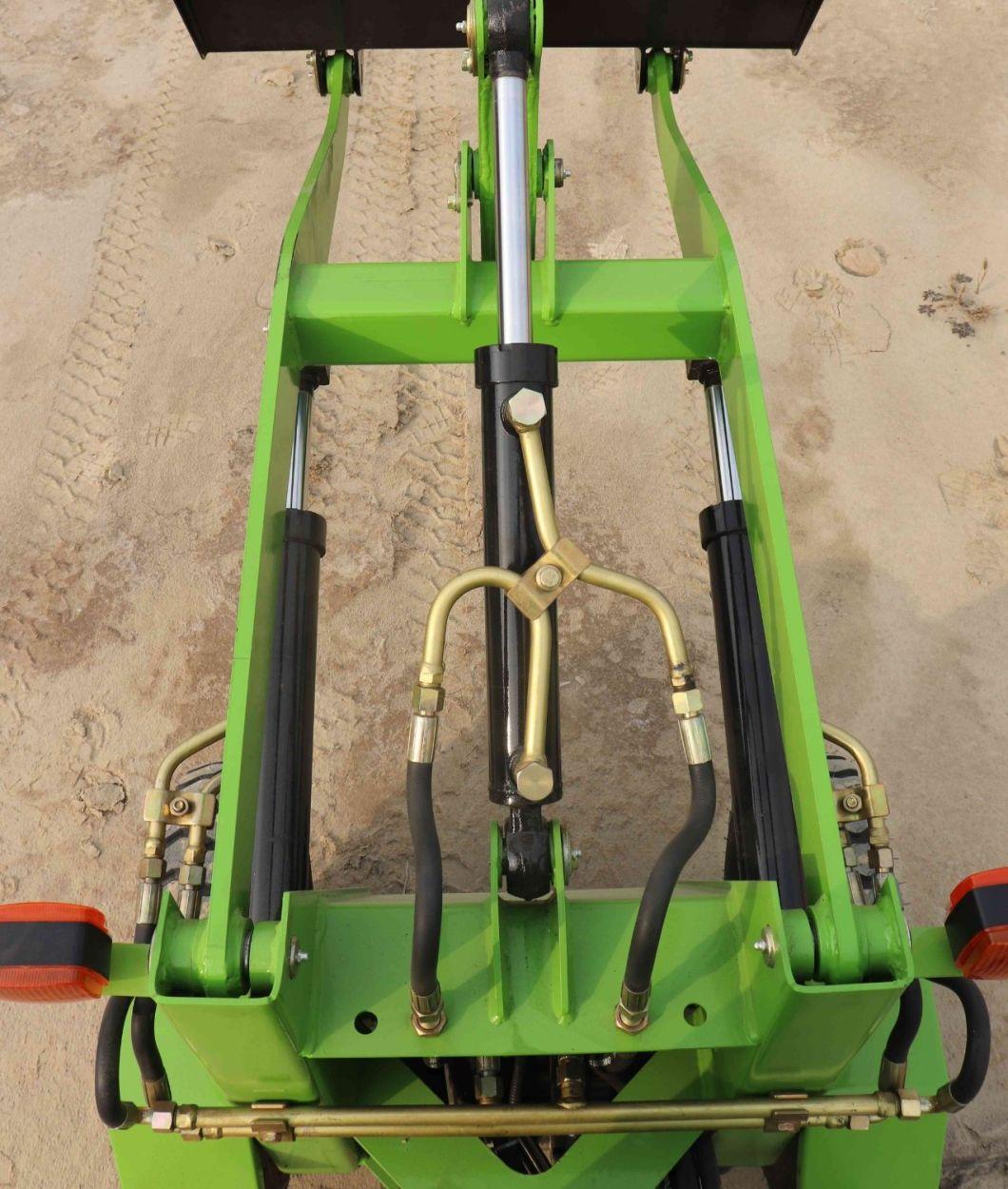

Standard wheel loader hydraulic oil distribution system to make sure a better loading performance and lifetime.
Front part is equipped with protector according to standard wheel loader standard.

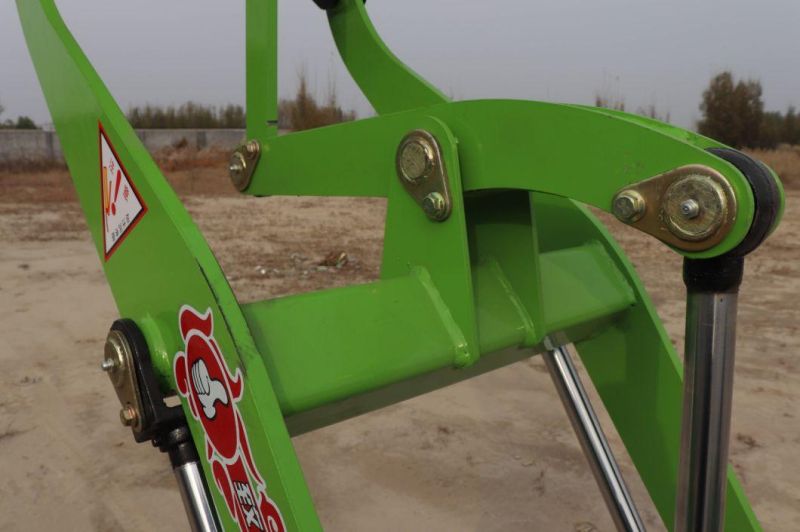

All connection PIN is equipped with copper bushing inside and butter injection point. Besides all PIN is with 2 connection bolts to make sure a longer lifetime and stronger arm.

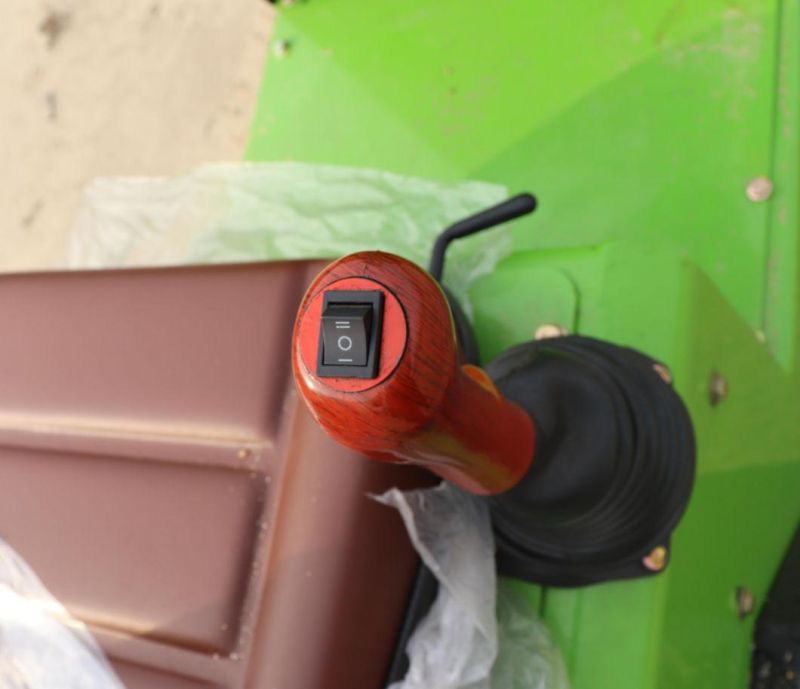

Multifunctional joystick operation bar which could control scoop and forward/backword. This assures that the drive could efficiently operate with 2 hands to save operatoin time.
ALL connection articulation are full disigned with narrow space to make sure the loader arm will not shake and break easily.

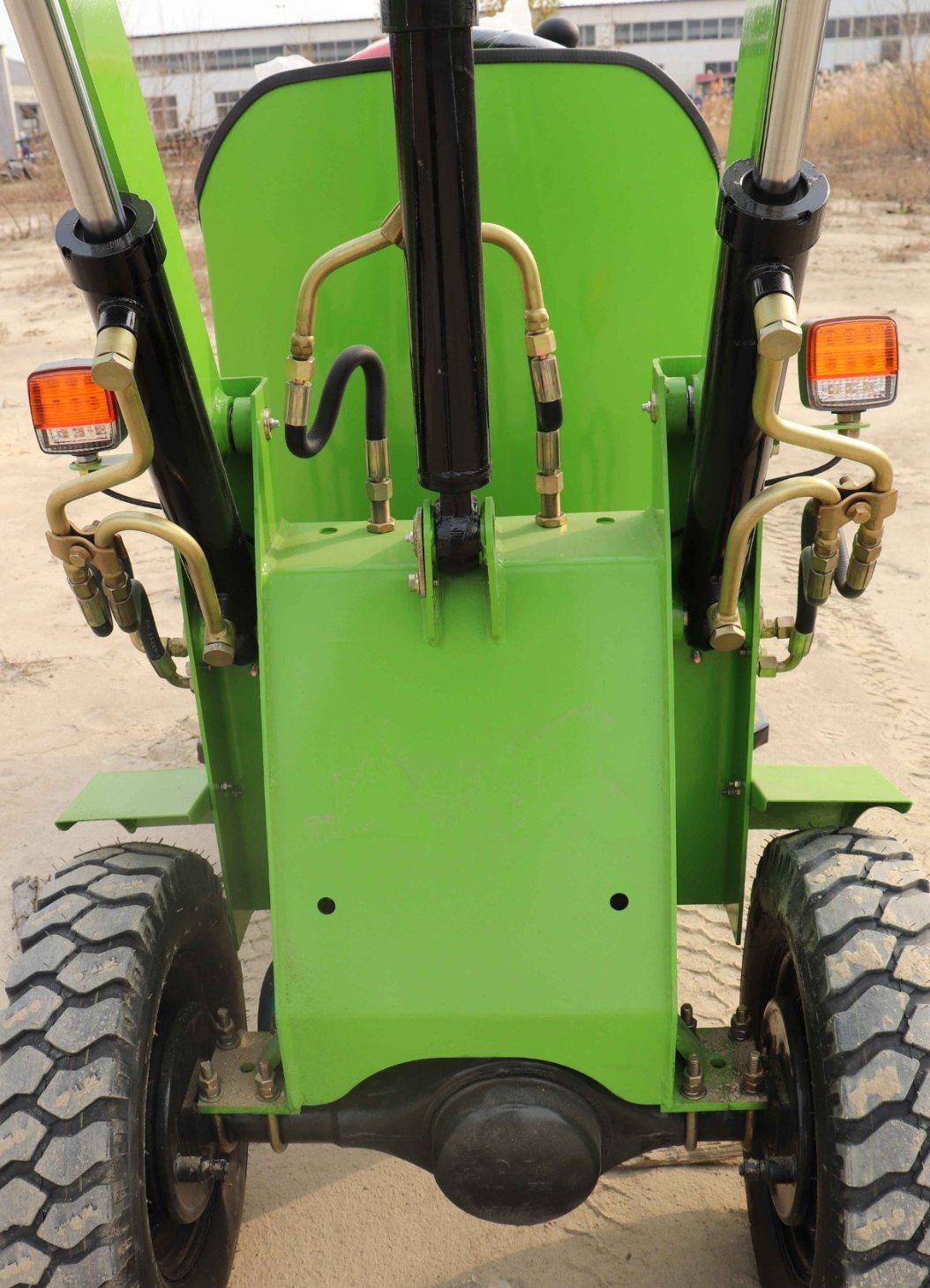

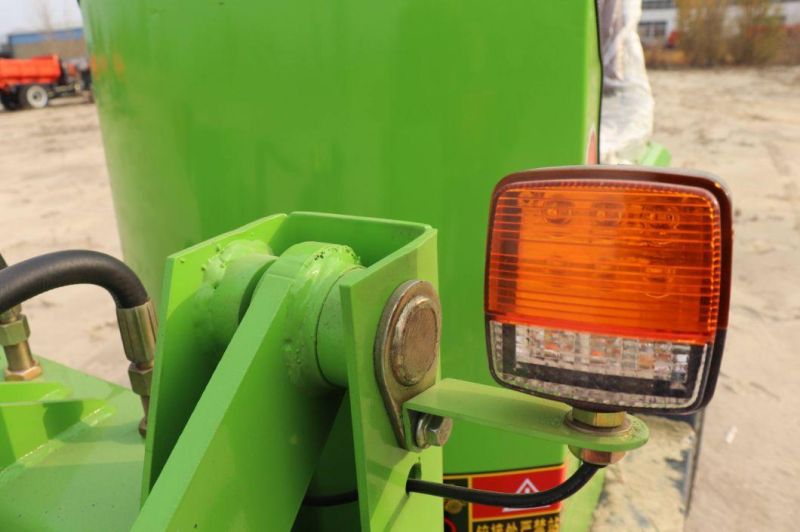

Lighting LED and signal light are en whole one design.

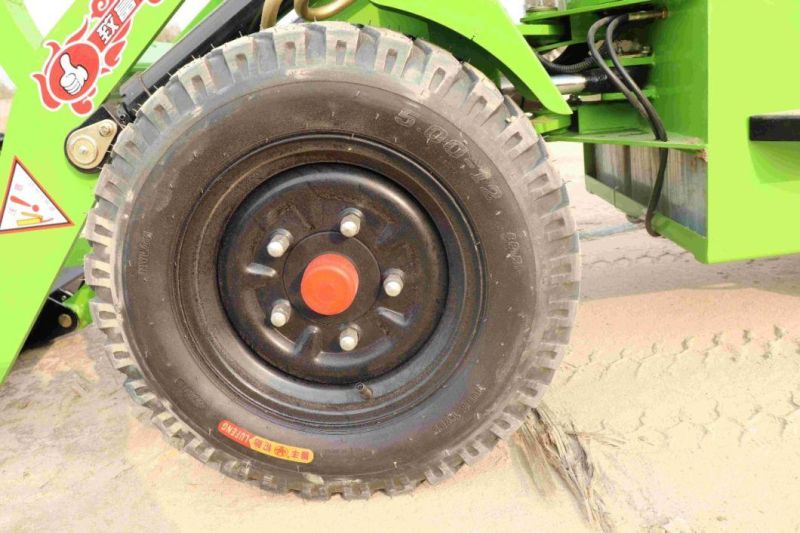

500-12 mining type tire or solid tire wil make sure the service time longer.

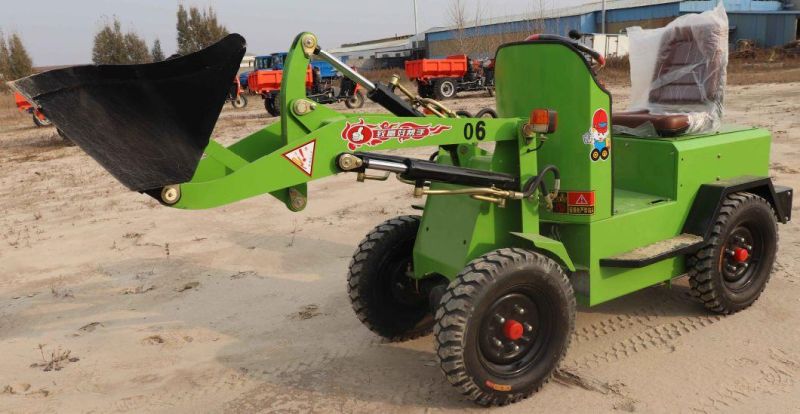

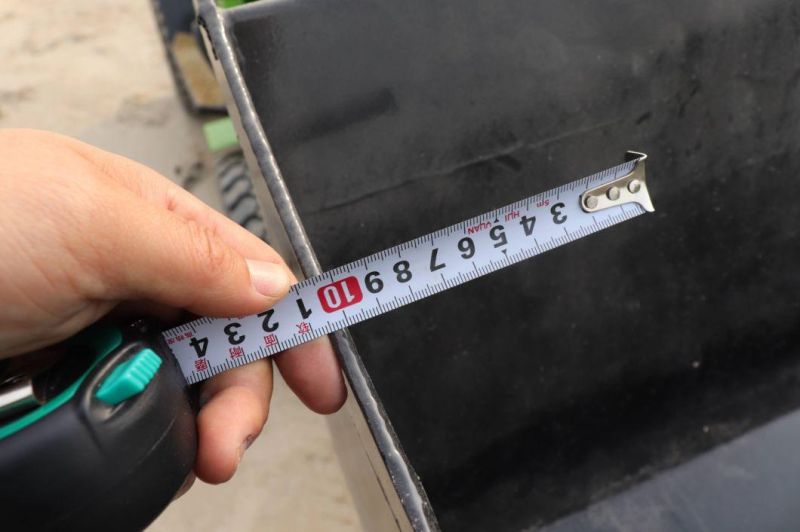

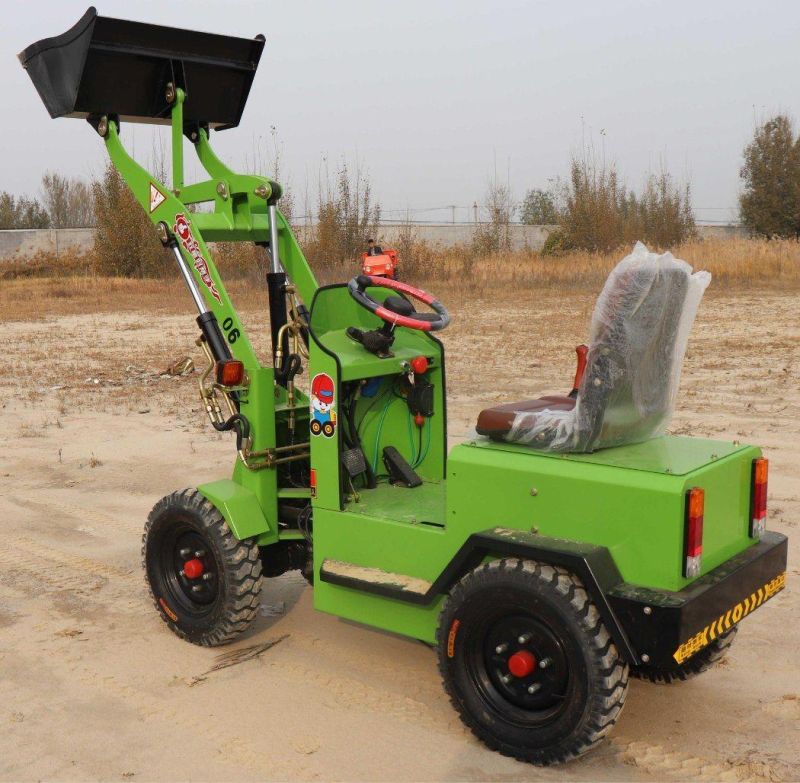

6MM thickness scoop.IV. MORE SHOW PICTURES OF MINI ELECTRIC LOADER
V.PACKING AND DELIVERY
VI. FAQ
1. How to load the site dumper:
a. For 20 GP container, we could load 2 units with bucket dismantled and all the equipments are will fastened;
b. For 40 GP container, we could load 4 units the same way as we load in 20 GP container;
c. For just 1 unit, we will do a standard wooden package with steel structure inside to meet LCL exporting standard;
2. What is the payment terms? Do you accept third party inspection?
a. The payment terms is 30% advance payment and 70% before delivery;
b. Yes we accept third party inspection on buyer's cost;
3. What is your advantange?
a. Our factory has more than 15 years experience in producing contruction machinery like tricycle dumper, site dumper, electric dumper and loaders;
b. We have our own R&D center to develop new designed products based on the product we have;
c. All the published products are well tested by ourselve and our domestic customers already.
