20 Tons, 30 Tons of Scraper Dismantling and Recycling Various Agricultural Machinery, Construction Waste, Cars, Trucks, etc.
Jisan Heavy Industry Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, GM Excavator
- Bucket：Shear
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：No
Base Info
- Model NO.：JSM150-9L; JSM225-9L; JSM300-9L
- Size：Medium-Sized
- Certification：CE
- Condition：New
- Engine：Doosan De08, Lsuzu 6bg1
- Engine Power：110,1950, 135,1950
- Cab Height：2985
- Track Length：4440
- Track Width：600
- Tail Swing Radius：2794
- Swing Speed：10.5
- Warranty：12 Months
- Transport Package：Nude Packing
- Specification：9506*2990*3065
- Trademark：JISAN
- Origin：Yantai, China
- Production Capacity：100
Description
DISMANTLING MACHINE PARAMETERS JSM150-9L JSM225-9L JSM300-9L
EngineEngine lsuzu 4JJ1 doosan DE08, lsuzu 6BG1 doosan DE08, lsuzu 6HK1 Rated Power Kw/rpm 74/1,900 110/1,950 147/1,900 Cooling Methed water-cooling water-cooling water-cooling
Main performance parametersRotation Speed rpm 10.1 10.5 9.4 Walking Speed km/h 5.04/3.01 5.7/3.1 5.7/3.2 Bucket Digging Force kN 100.9 149 183.3 Stick Digging Force kN 59.8 105 128.4
Hydraulic systemMain Pump Type Variable Axial Piston Pump Variable Axial Piston Pump Variable Axial Piston Pump Maximum Flow L/min 2*114 2*212 2*248 Tank L 147 195 280 Fuel Tank L 270 400 500
SizeTransport Width mm 2,590 2,990 3,200 Transport Length mm 7,662 9,506 10,615 Transport Height mm 2,980 3,065 3,697 Cab Height mm 2,773 2,985 3,031 Tail Swing Radius mm 2,200 2,794 3,188 Counterweight Ground Clearance mm 894 1,096 1,150 Track Length mm 3,495 4,440 4,940 Track Width mm 600 600 600 Track Height mm 795 950 1,033 Minimum Ground Clearance mm 410 475 506 Working Range Max Operating Range mm 8,560 11,070 13,200 Max Operating Height mm 7,890 9,850 10,830 Max Vertical Working Range mm 7,210 8,990 9,880 Max Vertical Working Height mm 4,760 5,920 6,510 Min Swing Radius mm 2,880 3,540 3,890 Working Height Of Clamp Arm mm 2,880 3,050 3,600 Max Operating Of Clamp Arm mm 3,600 3,600 4,400

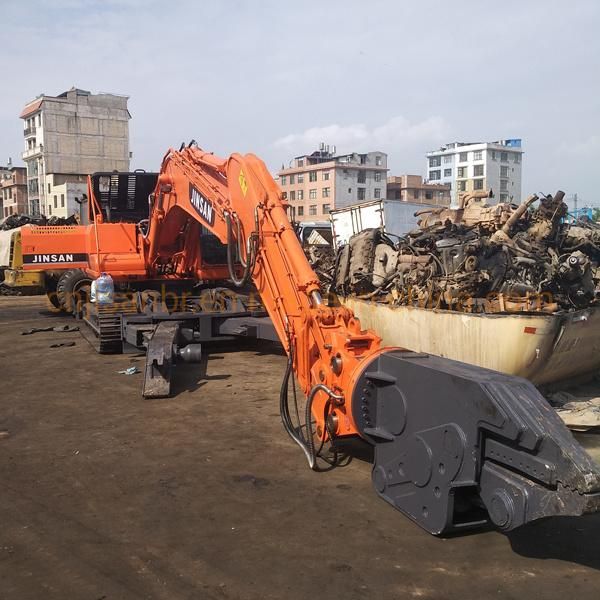

We provide you with complete car dismantling machine service, save worry and effort, and avoid the worry of modification. Adopting national three standard Isuzu engine, low fuel consumption and high efficiency; special hydraulic system imported from South Korea can realize the precise micro-movement function of hydraulic shears, and the work is stable and reliable; additional integrated dual valve, integrated design, large flow, no stuck valve, no leakage Oil, no cracking; special frame body reinforced base design, can carry out any tearing operation without hurting the car; install protection net in the cab, use electric control handle to operate, good vision, flexible operation, strong adaptability to working environment; Thick steel plate structure, greatly enhanced anti-torsion force; the pipeline is installed after bending and forming of seamless steel pipe, using high-pressure wear-resistant 4-layer steel wire rubber hose for excessive connection, and an external spring sheath is added. Mechanical disassembly does not require electrical welding and does not use open flames, which can effectively save labor costs, improve safety and work efficiency. It has been proven on the ground that fast disassembly of small vehicles, buses, buses, buses and other vehicles can be disassembled in 7 minutes. It can disassemble 70 units a day.

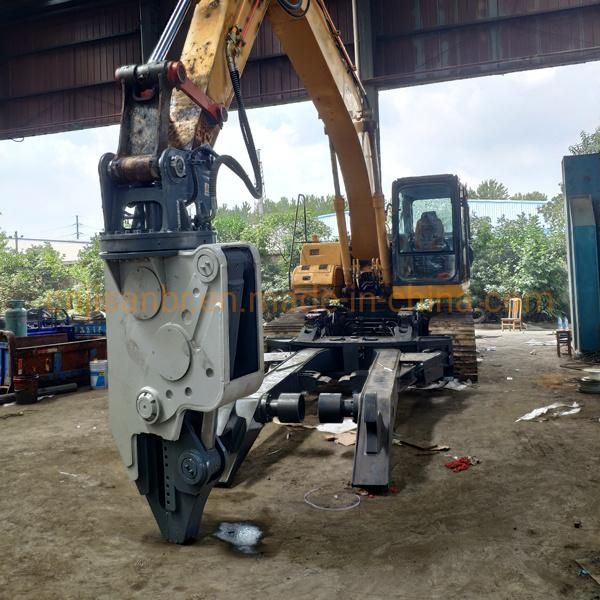

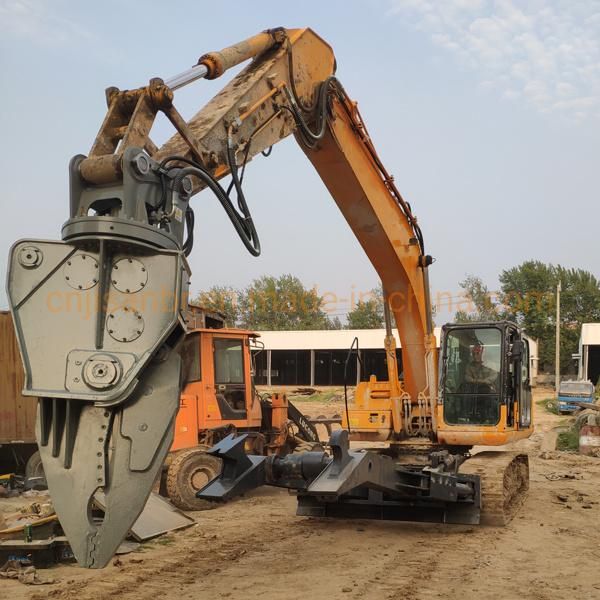

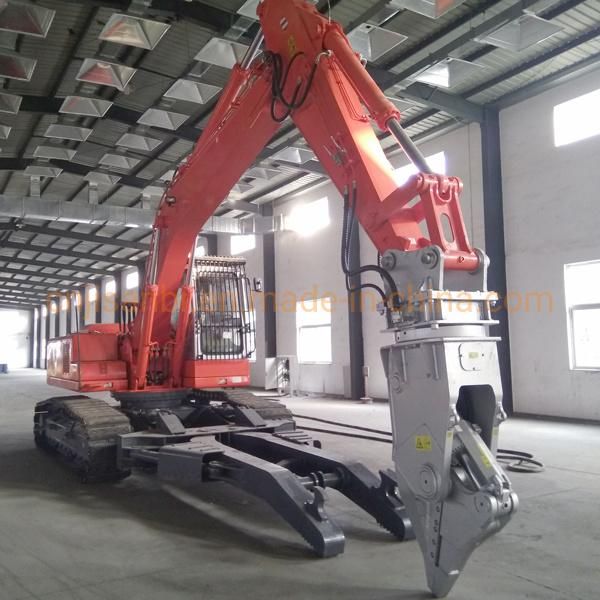

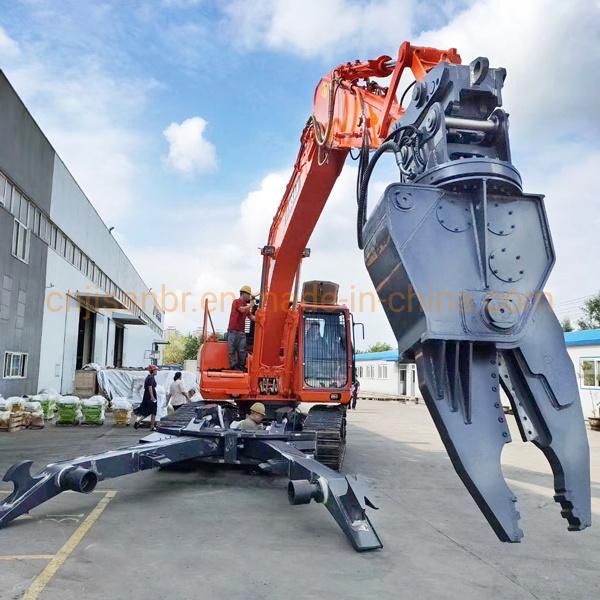

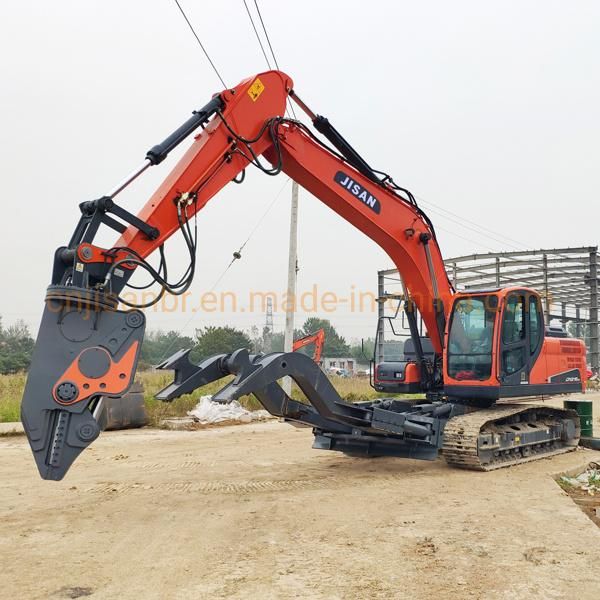

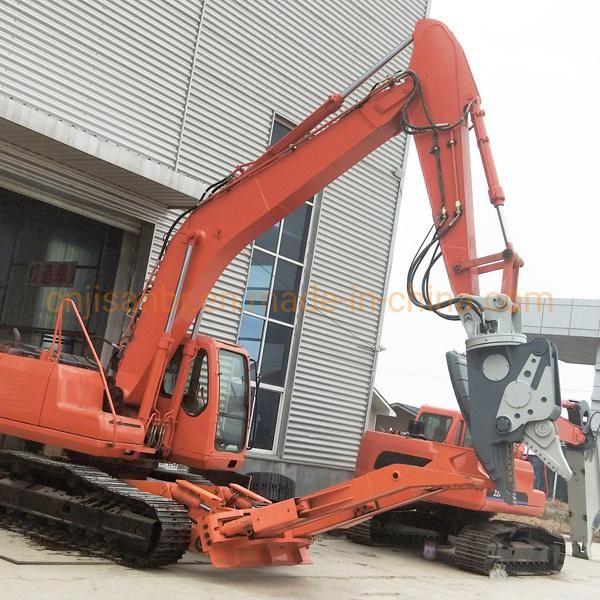

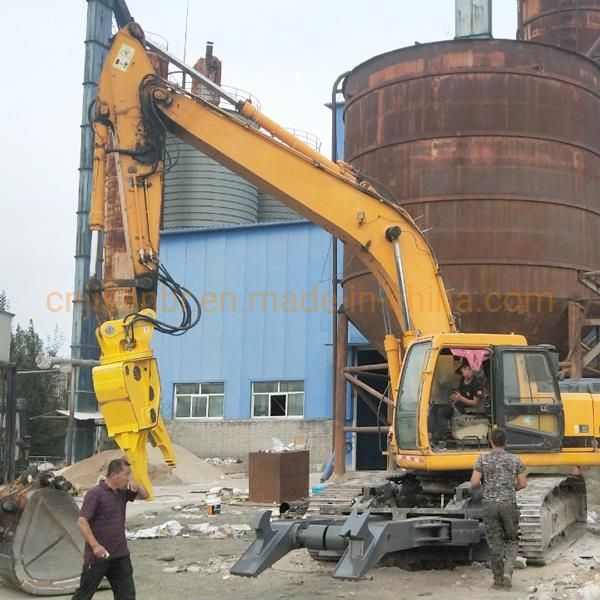

We can also provide you with second-hand excavator modification services to make full use of existing resources and improve disassembly efficiency. A press frame is installed on the chassis, and the overall embedded welding is used to enhance the stable and balanced structure. The hydraulic lock of the oil cylinder is installed. When moving up and down and left and right, the oil cylinder is locked in two directions, the cylinder cannot be lifted up, and the tension is not loosened. A cutter is installed at the rear part, and the supporting part installed at the front part can realize the cutting function of the automobile part or the frame, and it is detachable and convenient for maintenance. Install hydraulic cutters on the stick to disassemble the car. The machine operates with high precision. It can cut, shred, and tear the car frame in all directions. It can also connect parts such as the chassis and steel plates of the car. Cut the excavator; convert the excavator into a manipulator, with strong power, which can provide hydraulic power for two sets of working devices. The hydraulic scissors are imported from the British brand, which can be adjusted and used, and can be used to scrap the car's beams, steel structures and parts that are not easy to tear. Shearing has the advantages of fast speed, good stability, large shearing force, and high work efficiency, and can completely dismantle scrapped cars.
