• Model NO.：FKWJ-3
• Type：Medium-sized Loader
• Rated Capacity：6 Tons
• Engine：Germany Deutz
• Torque Converter：American Dana
• Shift Transmission：American Dana
• Service：Free Parts for One Year
• After-Sales Serive：Supply Free Maintenance
• Warranty：12 Month
• Transport Package：40gp Container
• Specification：bucket volume: 3 cbm (4 yd)
• Trademark：FOCOR
• Origin：China
• HS Code：84293090
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. FKWJ-3 Type Medium-sized Loader Rated Capacity 6 Tons Engine Germany Deutz Torque Converter American Dana Shift Transmission American Dana Service Free Parts for One Year After-Sales Serive Supply Free Maintenance Warranty 12 Month Transport Package 40gp Container Specification bucket volume: 3 cbm (4 yd) Trademark FOCOR Origin China HS Code 84293090 Production Capacity 200 Sets/Month

Product Description

FKWJ-3 Diesel Scooptram -  3 Cbm diesel Scooptram with Closed Cabin and Air Conditioner

with remote control, closed cabin & air conditioner etc.


1. Main Configurations:

Diesel Engine:	Brand       Germany DEUTZ Rated Power:   136KW
Shift Transmission:	Brand          American DANA Model:         R32000 Shift:          power shift (4 shifts) forward+backward
Torque Converter:	Brand:         American DANA Model:         C270
Drive Axle:	Brand          American DANA Model:         16D
Hydraulic pumps and valves	Brand: American Parker
Braking System:	Type:         Working brake, Stop brake Description:    Fully enclosed, spring brake, hydraulic release, wet Multi-disc brak
Hydraulic system	(1)Working system: American Parker work pump, American Parker working valve (2)Steering system: American Parker steering pump, American Parker steering valve (3)Braking system: American Parker brake pump, American Mike filling liquid, American Mike brake valve (4)Oil filling system: American Dana refueling pump, Williams acceleration valve, acceleration cylinder.
Lubrication system	Centralized lubrication system
Driver cabin	(1)Side view, with reinforced steel panel; (2)Closed Cabin with air conditioner, Reinforced with 6mm steel panel.
Bucket	Type:  Ejector bucket Material: Manganese steel



2. Technical Parameters:

General Parameters	Rated capacity:             6000 kg                Length:                          8650mm Width                             2120mm Height(cabin):                2170 mm Bucket volume:              3 m³ Lifting height:                 3850 mm Discharging height:        1780 mm Discharging angle:          40° Wheelbase:                              2895mm Min. Ground clearance:            280mm Steering angle:                      left/right 40° Min. Turning radius:               inner 3220mm Min. Turning radius:               outer 5760 mm Rear axle swing:                    ±10°
Loader weight and bridge load	Scooptram weight                    18000 kg Load weight                              24000 kg
Traveling performance	1 shift forward/backward            4.2 km/h 2 shift forward/backward            8.5km/h 3 shift forward/backward            14.5km/h 4 shift forward/backward            20km/h Gradeability                              25% Max. Traction:                           140KN Max. Shovel:                            120KN

Remarks: We can choose different parts according to different condition of the underground mining or requirement from our customers, we will make the best proposal with reasonable price.
Pls contact us if you need the detailed specification and quotation.

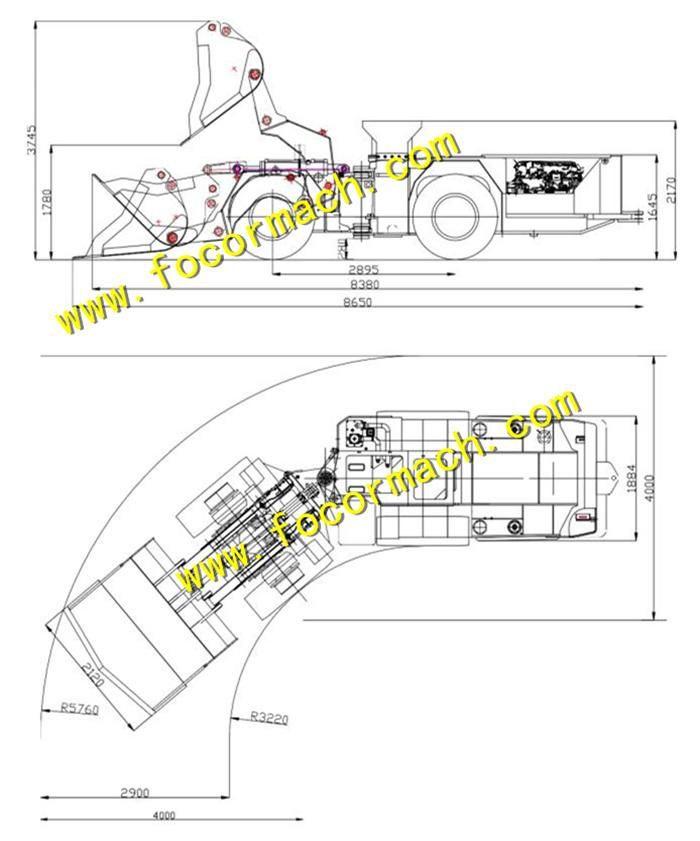

3. General Dimensions:

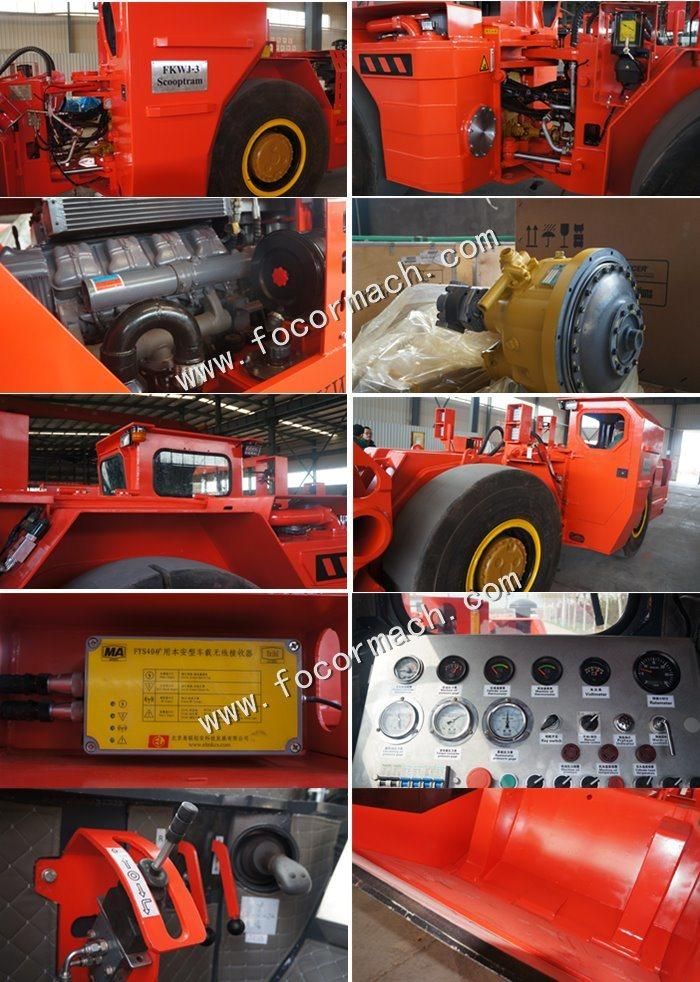

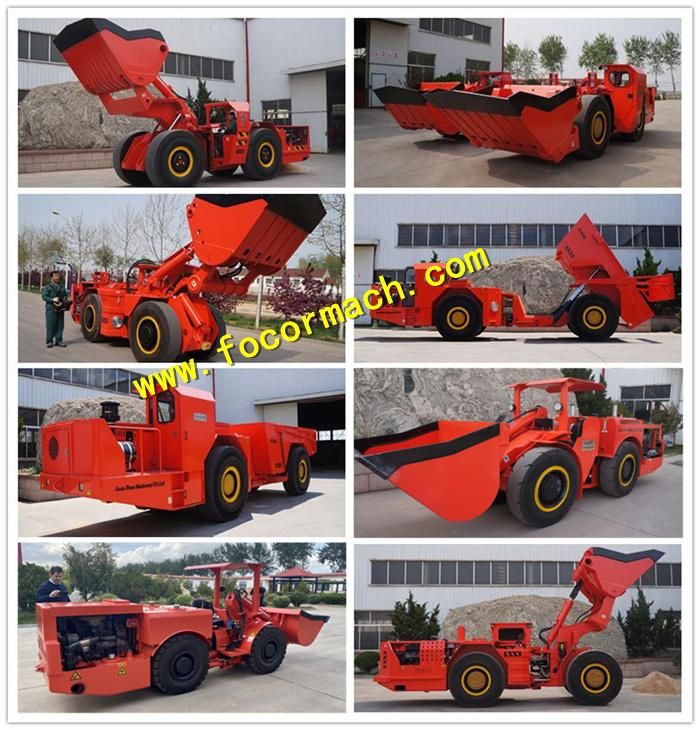

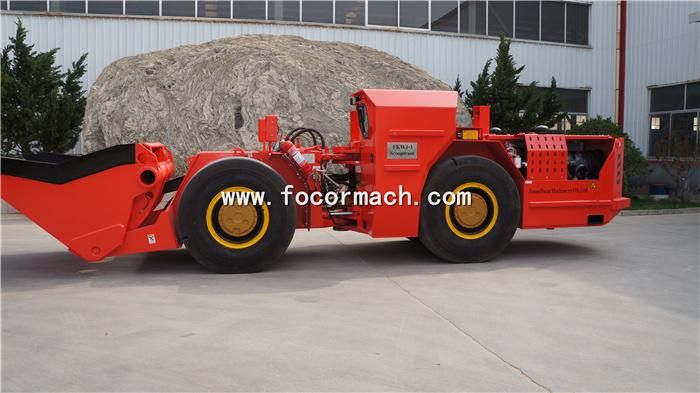

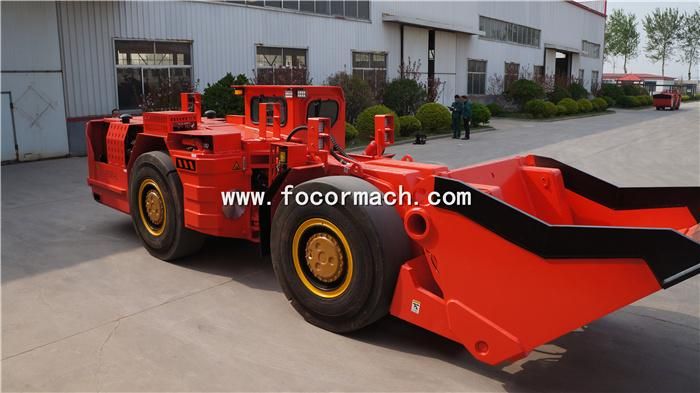

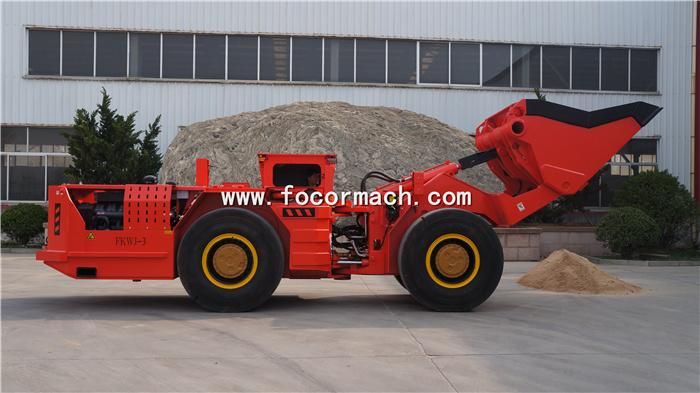

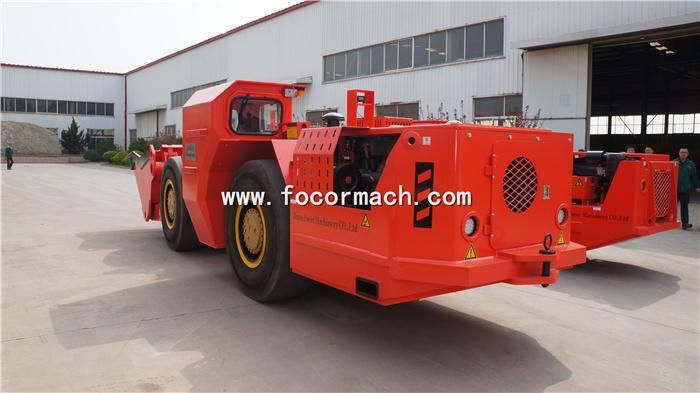

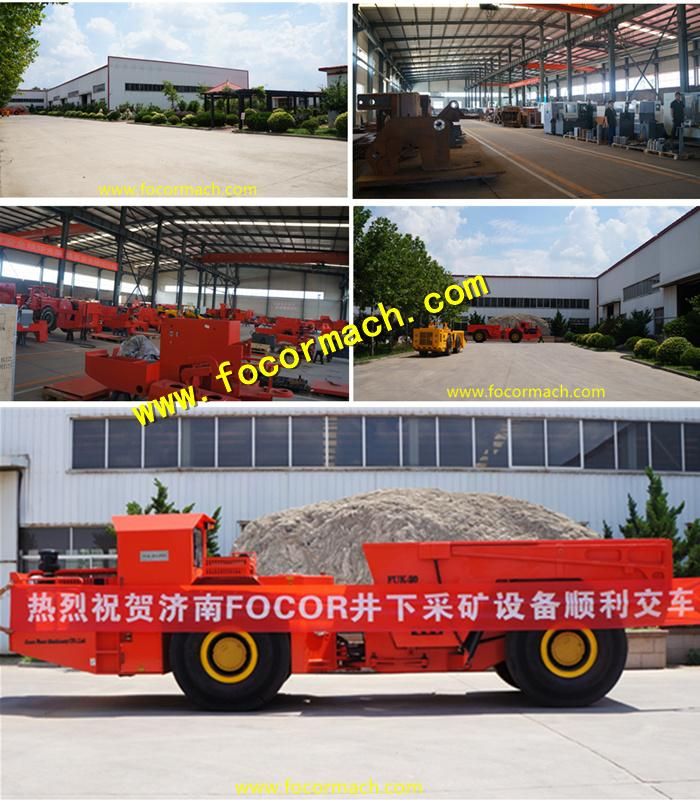

4. Pictures for show:
