CE Middle Medium Rated Load 2.0 Ton 920 Front Bucket Shovel Wheel Loader with Ripper&Grapple Rake&Fork Grapple&High Dump Bucket&Mixer&Yto Engine
Qingzhou Chuanhong Agricultural Equipment Co., Ltd.- After-sales Service：Supply The Light or Small Parts in Warranty
- Warranty：One Year or 1500 Working Hours
- Certification：TUV, UL, ISO, RoHS, CE, Cash
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
Base Info
- Model NO.：LQ920
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Cabin：with AC&Joystick&Heater
- Axle：Zl20
- Frame：Heavy Duty
- Tire：16,70-20
- Engine：Weichai,Cummins,Yunnei
- Rated Power：76kw
- Color：as Requirements
- Attachments：as Requirements
- Dimension：5910*1910*2810
- Bucket Capacity：1.3cbm
- Operating Weight：5200kg
- Gearbox：Jinlite
- Gearbox Model：Zl20
- Hydraulic System：Full Hydraulic with Joystick
- Engine Pattern：Inline, Water Cooled, Dir Injection, 4 Strokes
- Transport Package：No Package
- Specification：2 TONS
- Trademark：Luqing
- Origin：Qingzhou City,Shandong Province,China
- HS Code：84295100
- Production Capacity：1000
Description
SPECIFICATIONS LQ920Rated capacity 1.3m 3 Rated weight 2000Kg Operating weight 5200Kg Max .dump height 3200mm Max .dump reach 885mm Min .ground clearance 310mm Wheel base 2150mm Tread 1440mm Height with bucket at full raise 3440mm Performance of bucket being set level Yes Static tilting load at full steering position 32KN Max.breakout force 48.87KN Max.drawbar pull 34.5KN Max.grade ability 30° Total of three:lifting,dumping,lowering 9.8s Overrall demensions(length*width*height) 5910*1910*2810 Engine model Yunnei 4102 with turbo charger Cylinder-bore*stroke 4-100*115 Max.torsion 206Nm Rated power 76kw Min.fuel consumption 251.6g/kw.h Rated speed 2200r/min Model of torque devicePattern YJ280 Pattern 3-element,single stage Number of gear shift 4 forward,2 revers Max.travel speed 24km/h Main reducer type Arc taper gear,moderation of first stage Pattern of wheelside moderation Planet gear moderation of single Tyre size 16/70-20 Front tyre pressure 220kpa Rear tyre pressure 180kpa Streering system B225-250 Min.turning radius(outside of bucket) 4239mm Valve distributing working ZL20E-04T.QW Working pumps CBG2063 Brake system Air assisted oil disc type four wheel brake Fuel capacity 80L

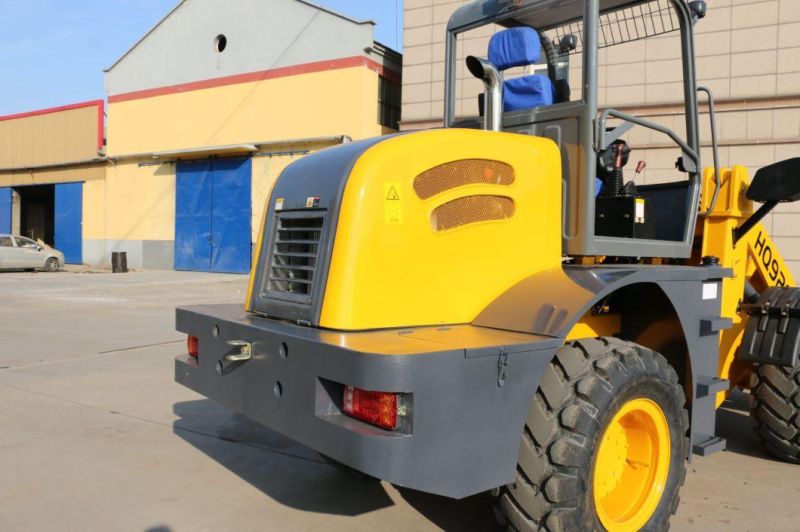

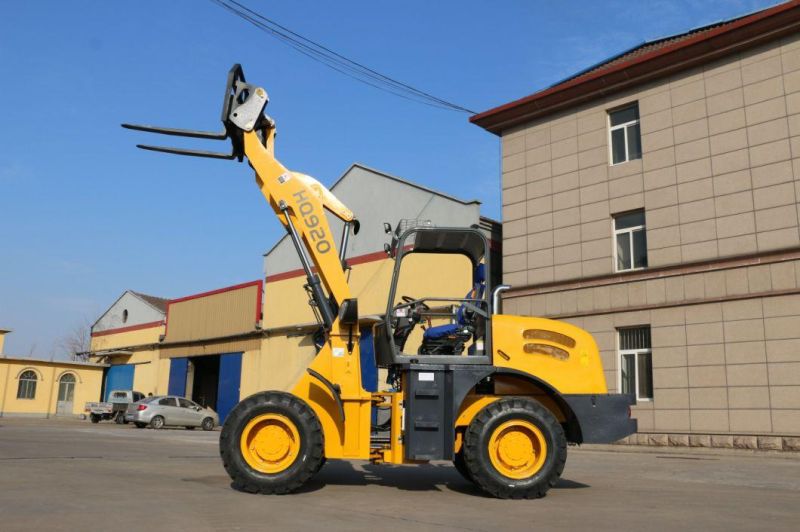

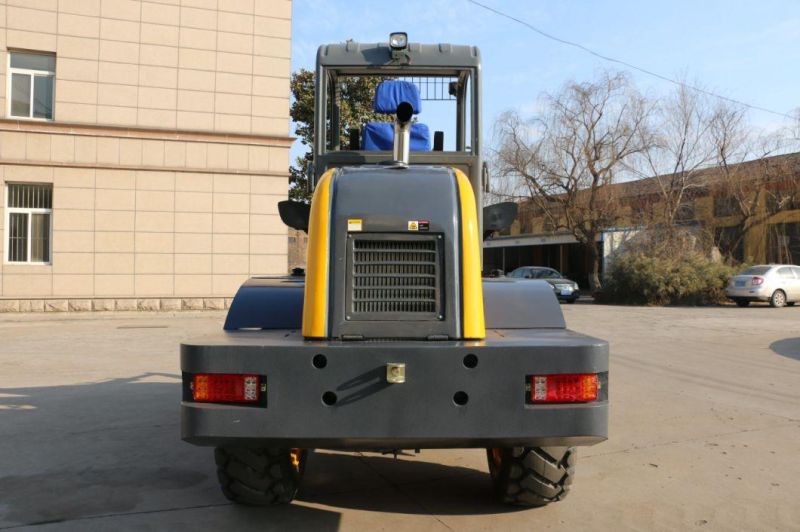

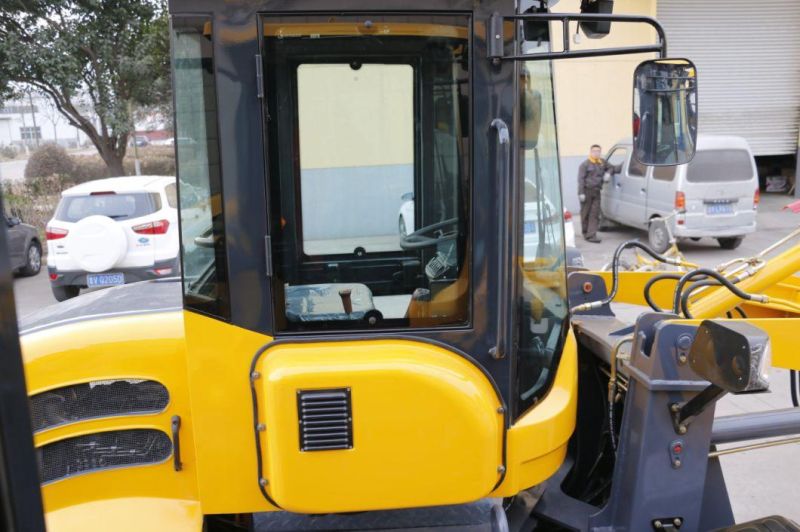

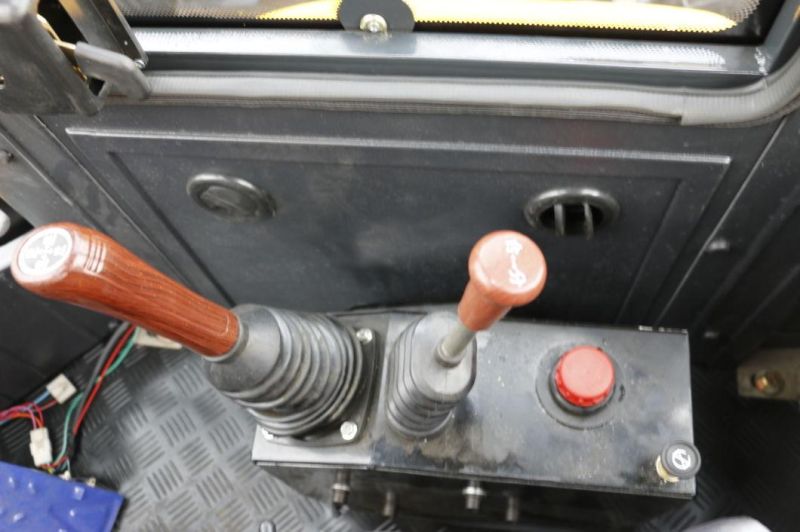

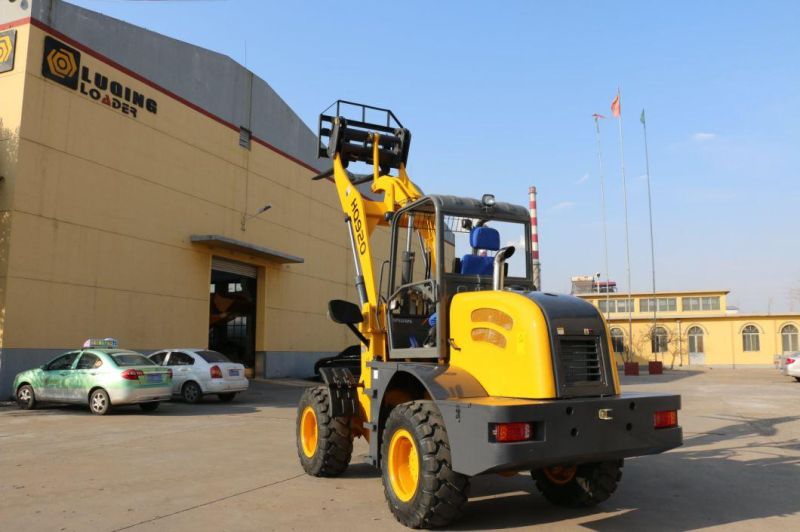

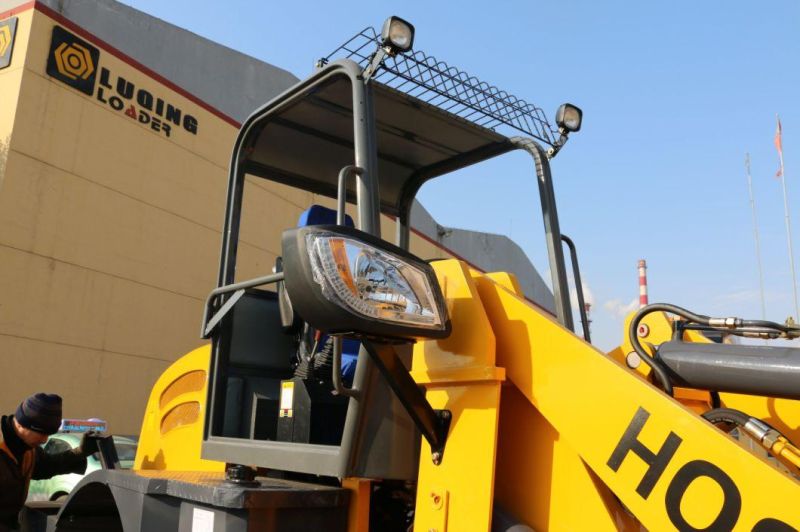

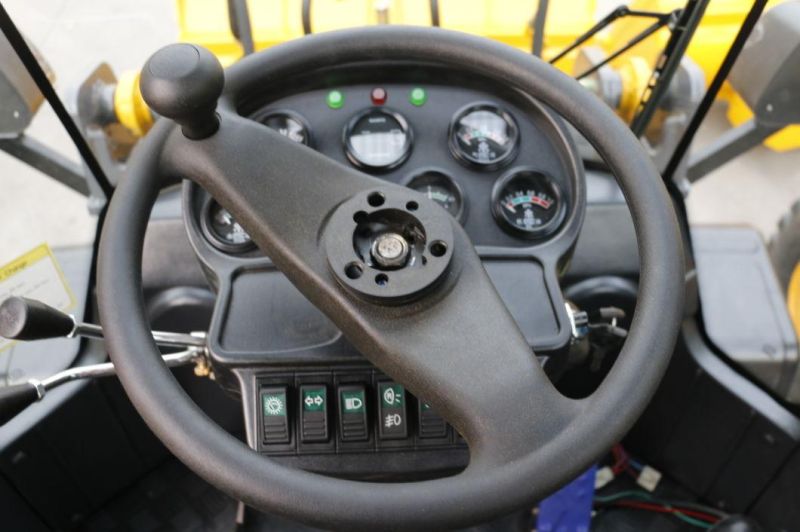

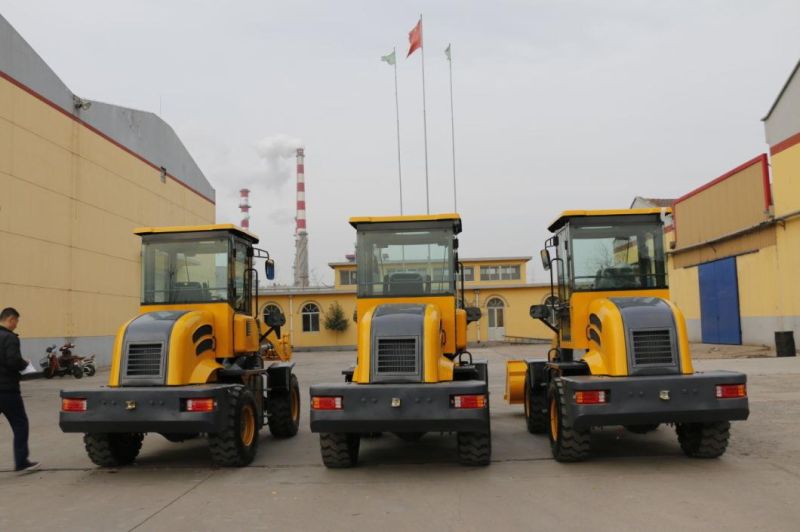

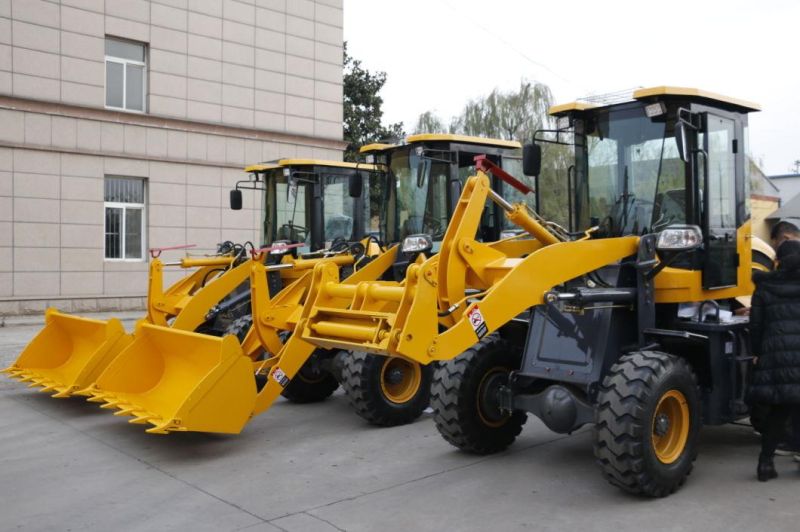

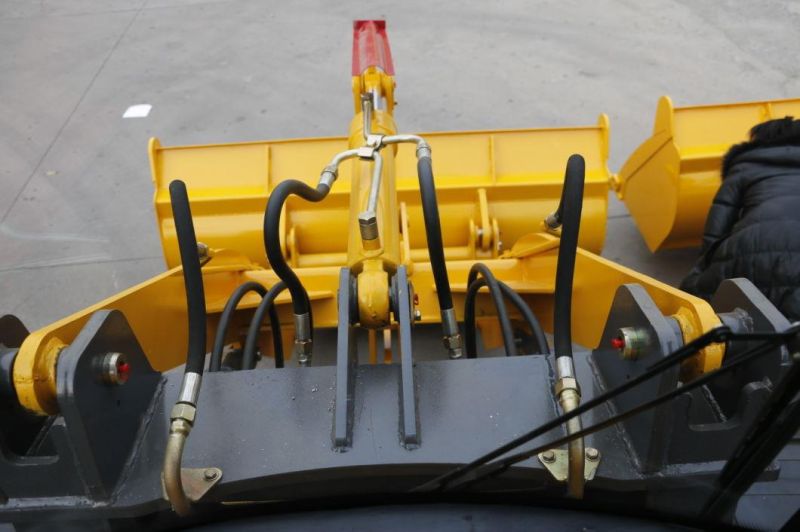

Detailed photos
Option outlook
Detailed photos
Option outlook
