• Model NO.：SY80,80
• Productivity：5 M3,H
• Feeding Height：2 M
• Vibrating Amplitude：0.8mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Name：Cement Injection Grouting Machine
• Material：Carbon Steel
• Machine Test：Provide
• Cylinder Dia.：80 mm
• Power：7.5 Kw
• Transport Package：Export Standard
• Trademark：TYTION
• Origin：China
• Production Capacity：150 Sets,Month

ModelSY80/80SY80/110Cylinder diameter80mm110mmMotor power7.5-15kw11-15kwGear pump type (pressure)CB-FC40 (16Mpa)CB-FC50 (16Mpa)Gear pump discharge volume40ml/r50ml/rGrouting capacity4-5m³/h5-7m³/hOutlet pressure0-10Mpa0-4MpaNoise power level110dB(A)110dB(A)Outlet diameter32mm32mmInlet diameter38mm38mmCylinder number22Conveying diatance

vertical: 80-100m

horizontal: 200-300m

vertical: 60-80m

horizontal: 200-300m

Particle diameter size≤5mm≤5mmSuction Height2m2mDimension size1700x900x1000mm1700x900x1000mmTank volume45L45LWeight480-520kg530-550kg




Working Performance of Cement Injection Grouting Machine:
This series of hydraulic grouting pumps are professional grouting equipment, which can realize both single-liquid grouting and double-liquid grouting. Because of the full hydraulic pressure, small size and light weight, it can be used in a wide range of construction. Good adjustability: the pump's pressure displacement can be arbitrarily adjusted within the design range. When the pressure exceeds the allowable pressure, the relief valve will automatically open and the cylinder and working cylinder will stop working, thus playing a safe role. The motor and air cooler of this series of grouting pump can be used in flammable and explosive construction sites such as coal mines after being replaced with explosion-proof components. A shock-resistant pressure gauge is installed in the hydraulic system, which can accurately reflect the working state of the pump. This series of hydraulic grouting pumps can also be used as water pumps, sewage pumps and mud pumps.

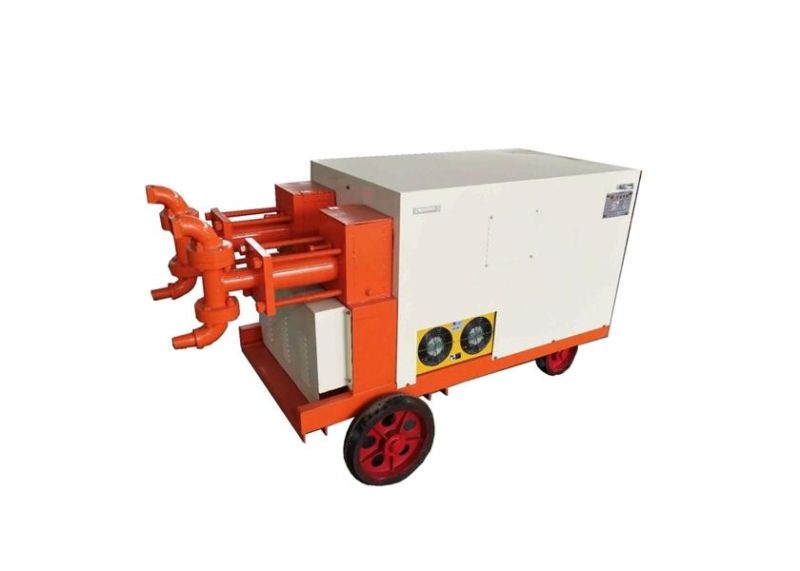

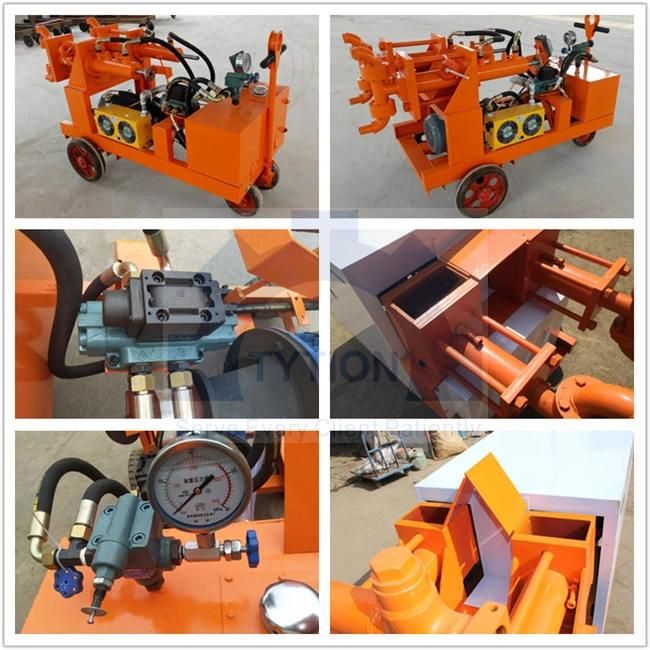

Pictures of Cement Injection Grouting Machine:
