Wolf Wl500 5 Ton Payload with CE 4WD Compact Wheel Loader for Construction/Building

Qingdao Zongjin Engineering Machinery Co., Ltd.
  • Certification：CE, EPA
  • Condition：New

Base Info

  • Model NO.：WL500
  • Rated Load：5000kg
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Large Loader
  • Attachments：Quick Hitch, Log Grapple, Grass Fork etc
  • Engine：Weichai 162kw
  • Optional Engine：Cummins 162kw
  • Max Dump Height：3150mm
  • Rated Bucket Capacity：3m3
  • Overall Weight：17100kg
  • Size：8085X2855X3450
  • Brand：Wolf
  • Color：Customized
  • Transport Package：Container
  • Specification：CE,ISO,EPA
  • Trademark：WOLF brand
  • Origin：Qingzhou, China
  • HS Code：84295100
  • Production Capacity：10000 Sets,Year
  • Package size per unit product：808.00cm * 285.00cm * 345.00cm
  • Gross weight per unit product：17100.000kg

Description

PerformanceRated load5000kg



EngineModelWeichai WD10G220E22
Shangchai SC11CB220G2B1
Cummin6CTA8.3-C215No. of cylinder-bore/stroke6-126×130mmRated power162kw--2200r/minTransmission systemTorque converterYJ375Gearbox modePlanetaryGear shift2 forward shift  1reverse shiftMaximum speed38km/hWheel base (mm)3200mmWheel tread2250mmTyreType specification23.5-25

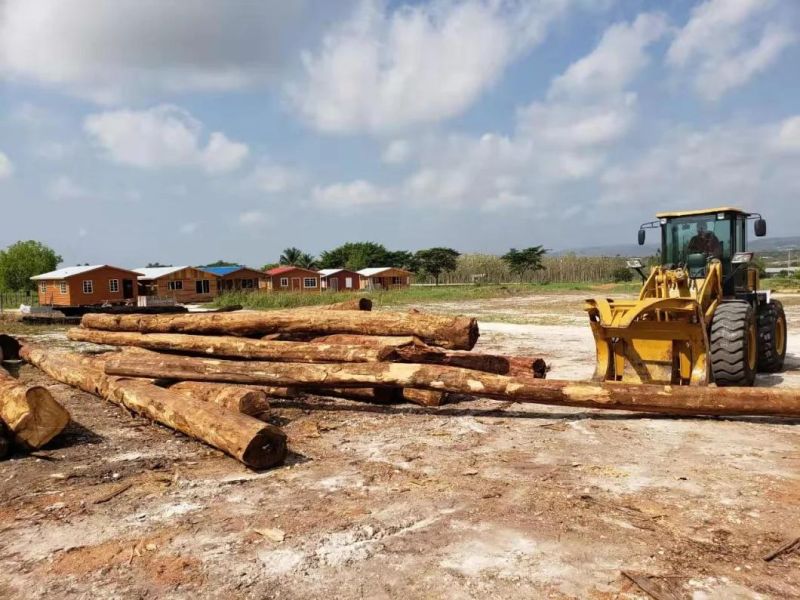

Working in farm:
Wolf Wl500 5 Ton Payload with CE 4WD Compact Wheel Loader for Construction/Building
Loading into the container:



Wolf Wl500 5 Ton Payload with CE 4WD Compact Wheel Loader for Construction/Building
