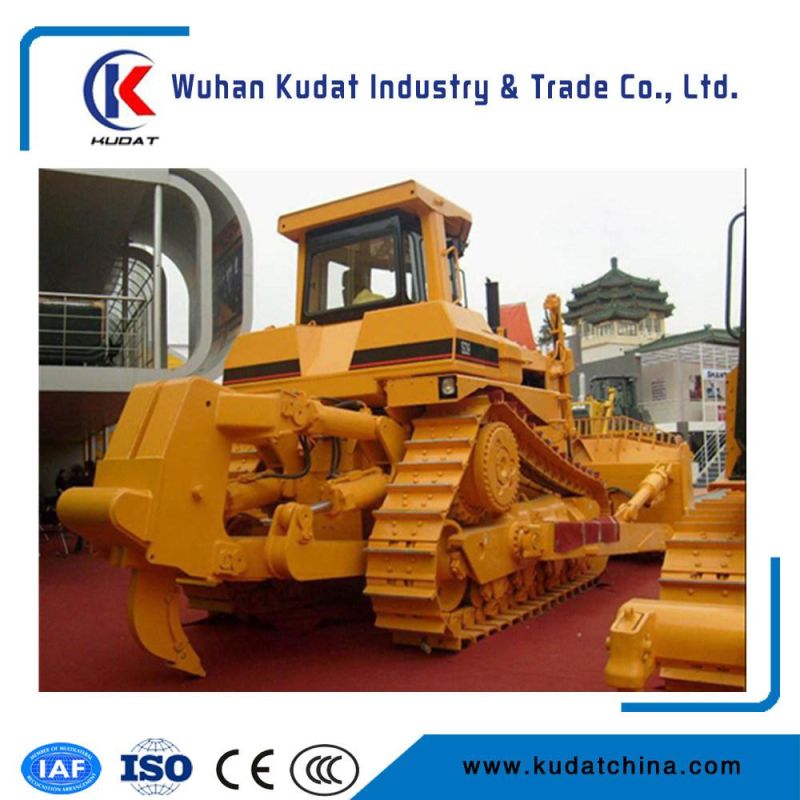

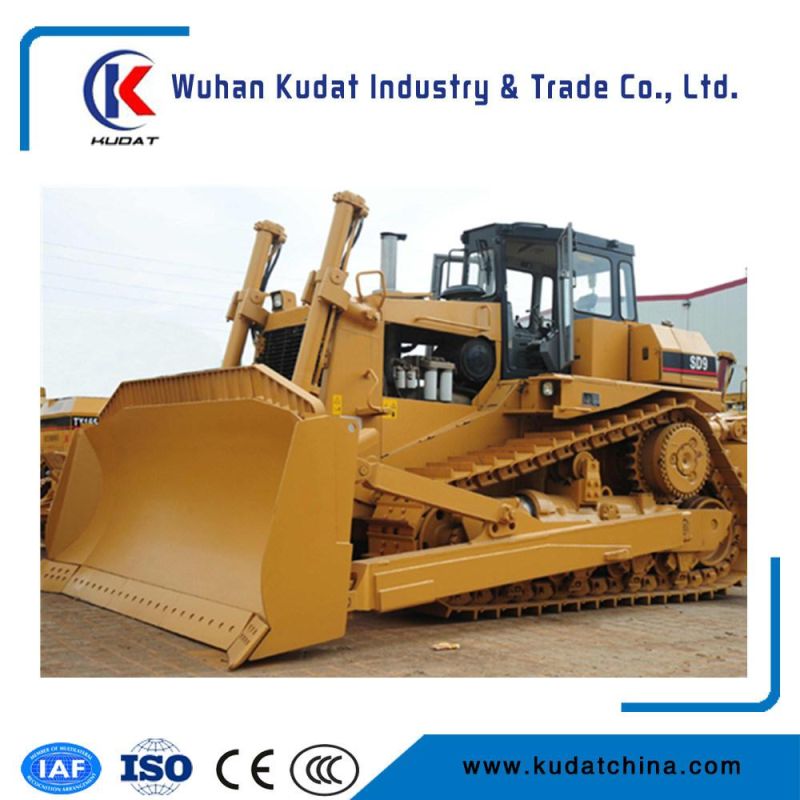

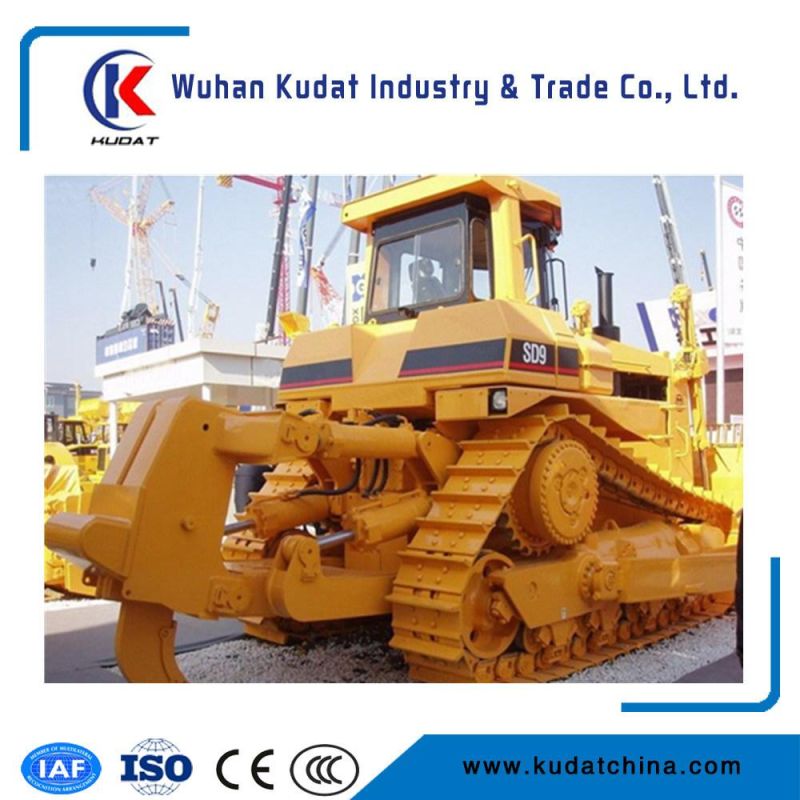

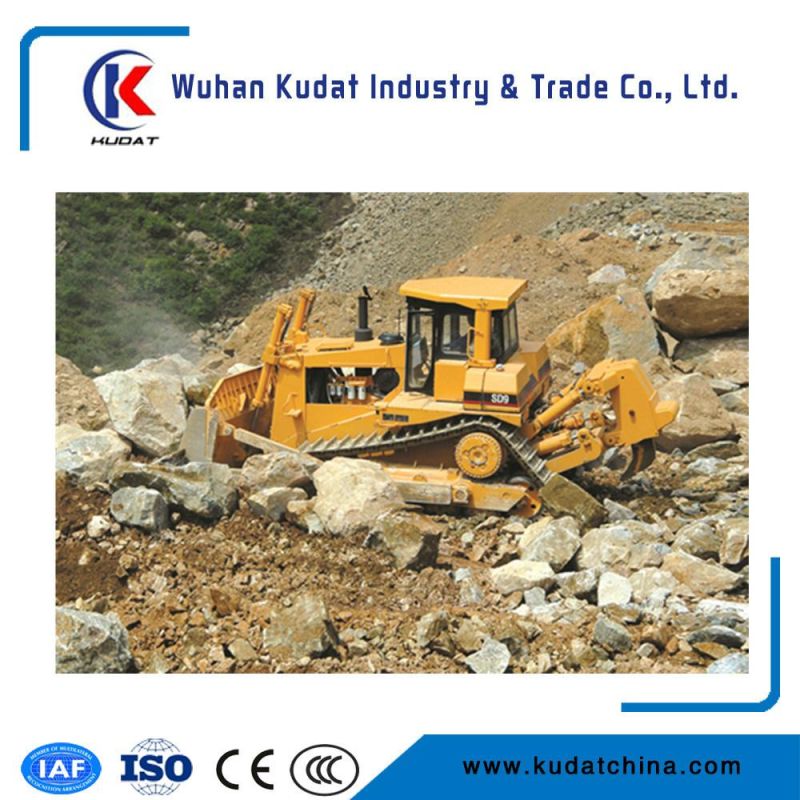

• Model NO.：SD9
• Condition：New
• Color：Yellow
• Ground Pressure：112kpa
• Min. Ground Clearance：517mm
• Dozing Capacity：13.5m3
• Max. Digging Depth：614mm
• Operation Weight：48880kg(with Ripper)
• Transport Package：Bulk
• Specification：SGS
• Trademark：KUDAT
• Origin：China
• Production Capacity：500PCS,Year

BladeStraight and tiltingGround pressure:(kpa)112Min. ground clearance:()517Dozing capacity:(m3)13.5Max. digging depth:()614Operation weight:(kg)48880(with ripper)Track gauge:()2250Gradient:30°/25°Blade width:()4314Overall dimensions:(L×W×H)(mm)8478×4314×3970
2,Undercarriage SystemType:The track is triangle shape, the sprocket is elevated elastic suspended.Number of track rollers(each side)8Pitch (mm)240Width of shoe (mm)610
3,Gear 1st2nd3rdForward (Km/h)0-3.90-6.90-12.2Backward (Km/h)0-4.80-8.50-15.1
4,Engine Option 1Option 2Engine NameCummins KTA19-C525S10Original America QSX15Rated revolution:(rpm)18001800Flywheel power (KW)316/430316/430Torque storage coefficient:18%18%
5,Implement Hydraulic SystemMax. system pressure (MPa):18.3System output(L/min)358Pump type:Double vane pump
6,Driving SystemTorque converter:Torque converter is power separating hydraulic-mechanic type.Transmission:Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.Steering clutch:The steering clutch is hydraulic pressed, usually separated clutch.Braking clutch:The braking clutch is pressed by spring, separated hydraulic, meshed type.Final drive:The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
