• Model NO.：YN940G
• Type：Large Loader
• Bucket Capacity：2.35m3
• Max. Breakout Force：120kn
• Max. Tractive Force：100 Kn
• Rated Power：112kw-2200r,Min
• Tyre：20.5-25
• Operating Weight：11800kg
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：74~147kw
• Color：Yellow
• Transport Package：Naked
• Specification：2.35m3
• Trademark：YINENG
• Origin：Taian City, Shandong Province, China
• HS Code：84295100
• Production Capacity：7 Units,Week






Performance1Rated load4000kg2Overall weight11800kg3Rated capacity2.35m34Max. Tractive force100 KN5Max. Breakout force≥ 120KN6Max. Grade ability30°7Max. Dumping height3000mm8Max. Dumping reach1100mm9Overall dimension L x W x H7200x2680x3375mm10Min. Turning radius5160mm

Engine11ModelDongfeng Cummins 6BTA5.8-C15012TypeTurbocharged  water & air colling13No. of cylinder-bore/stoke6-102x120mm14Rated power112kw-2200r/min15Max. torque670N.m16Min. Fuel-consume ratio≤ 205g/kw.h
 Transmission17ModelYD13 electronic control gearbox18Gear shift4 forward, 3 reverse.
Electronic control gear shift
 19Max. speed36km/h

Drive axle20Main reducing spiralBevel gear grade 1 reduction21Decelerating modePlanetary reduction, grade 1.22Wheel base2845mm23Wheel tread1865mm24Min. ground clearance380mm
Hydraulic system25System working pressure18MPa26Boom lifting time5.5 + 0.2s27Total time10 + 0.5s28Fuel tank capacity120L29Leveling automaticallyYes
Break system30Service brakeAir over hydraulic disc brake on 4 wheels31Parking brakeAir break control
Tyre32Type20.5-2533Front tyre pressure0.35Mpa34Rear tyre pressure0.2MpaCompany Profile

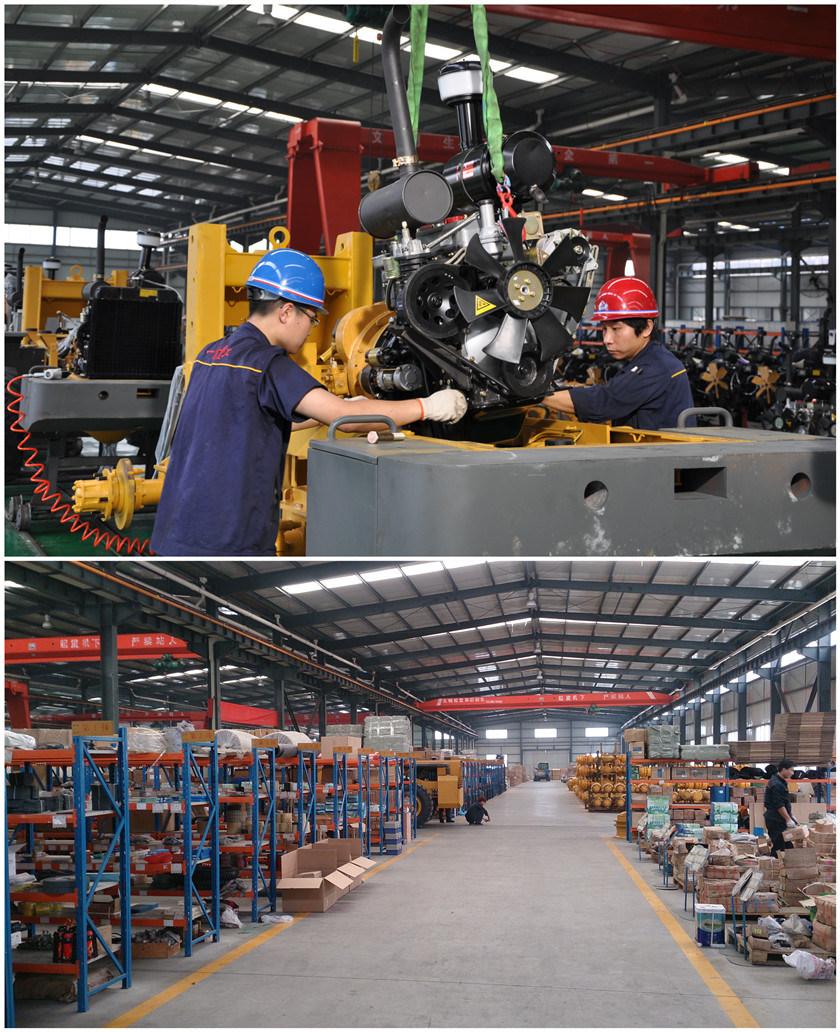

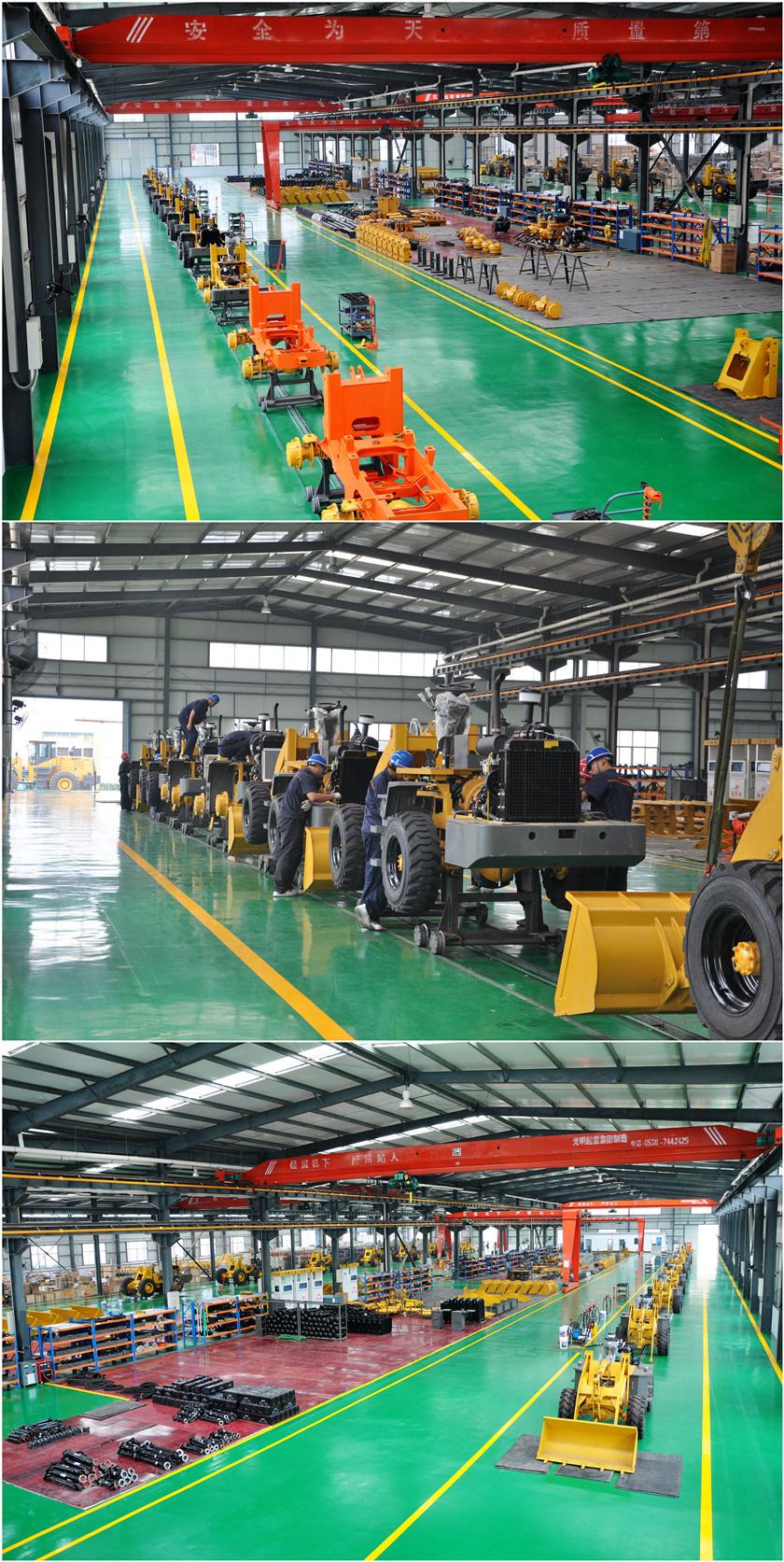

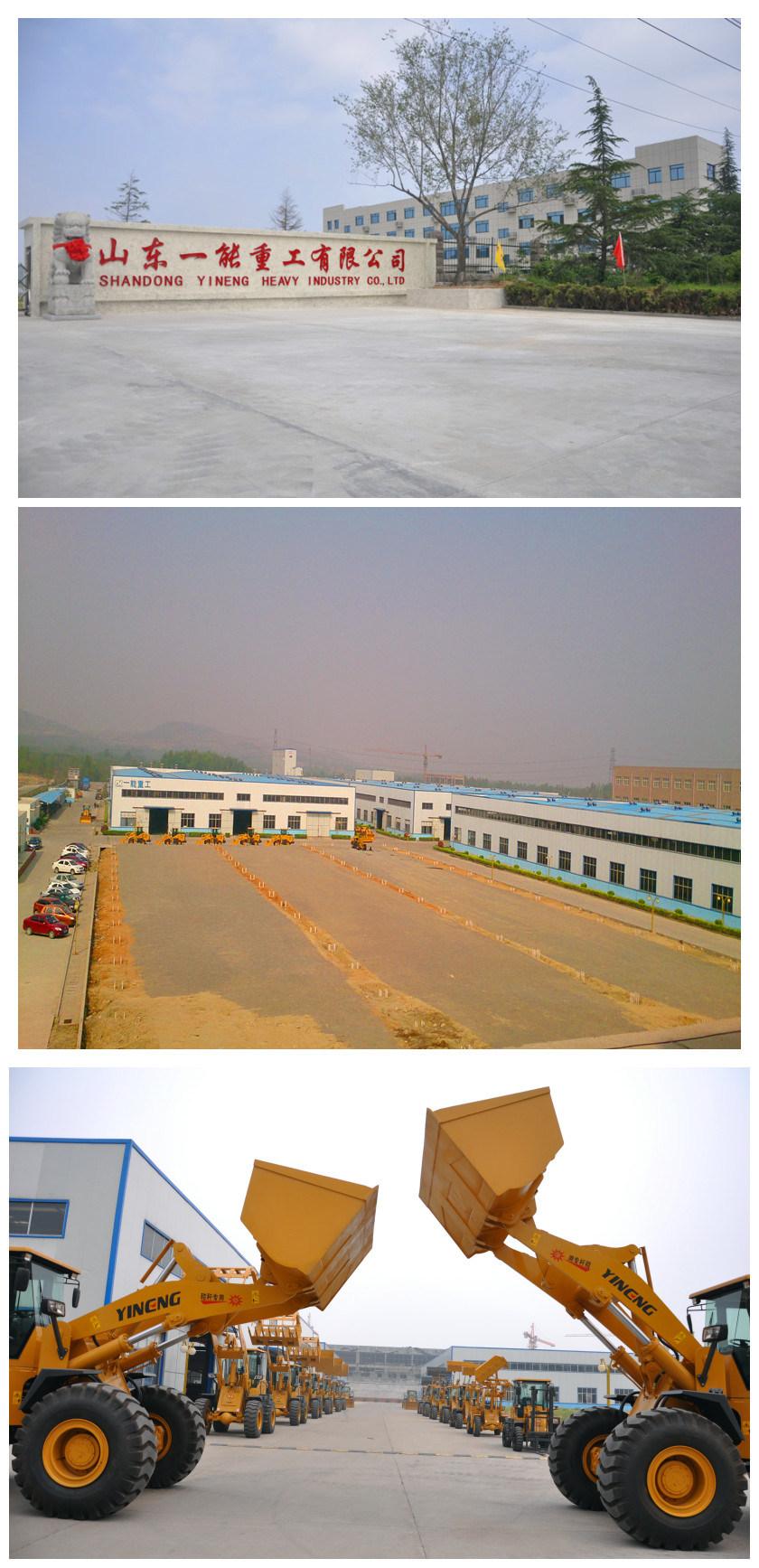

Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
