China 140HP Hydraulic Tilt Shovel Bulldozer Track-Type Crawler Bull Dozer
Henan Haiheng Import and Export Co., Ltd.- Type:Universal Type
- Transmission:Hydraulic Transmission
- Walking Mode:Crawler
- Load and Unload Method:Front Discharge
- Engine Power:147~515kw
- Certification:CE, ISO9001: 2000
Base Info
- Model NO.:HHT140-1
- Condition:New
- Color:Yellow
- Transport Package:Nude
- Specification:140HP
- Trademark:CHHGC
- Origin:China
- HS Code:84291190
- Production Capacity:100 Per Month
Description
Tiltnot including ripper Operation weight (Kg) 16500 Ground pressure(K Pa) 65 Track gauge(mm) 1880 Gradient 30°/25° Min. ground clearance (mm) 400 Dozing capacity (m³) 4.5 Blade width (mm) 3297 Max. digging depth (mm) 320 Overall dimensions (mm) 5336x3297x2842 Engine Type WD10G156E26 Rated revolution (rpm) 1850 Flywheel power (KW/HP) 104/140 Max. torque (N•m/rpm) 830/1100 Rated fuel consumption(g/KW•h) ≤21 Undercarriage system Type Swing type of sprayed beam. Suspended structure of equalizer bar Suspended structure of equalizer bar 6 Number of carrier rollers (each side) 2 Pitch (mm) 203 Width of shoe (mm) 500 Gear 1st 2nd 3rd 4th 5th Forward (Km/h) 0-2.52 0-3.55 0-5.68 0-7.53 0-10.61 Backward (Km/h) 0-3.53 0-4.96 0-7.94 0-10.53 Implement hydraulic system Max. system pressure (MPa) 12 Pump type Two groups Gears pump System output(L/min) 180 Driving system Main cluth Normally opened, wet type, hydraulic booster control. Transmission Normally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds. Steering clutch Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated. Braking clutch Brake is oil two direction floating band brake operated by mechanical foot pedal.

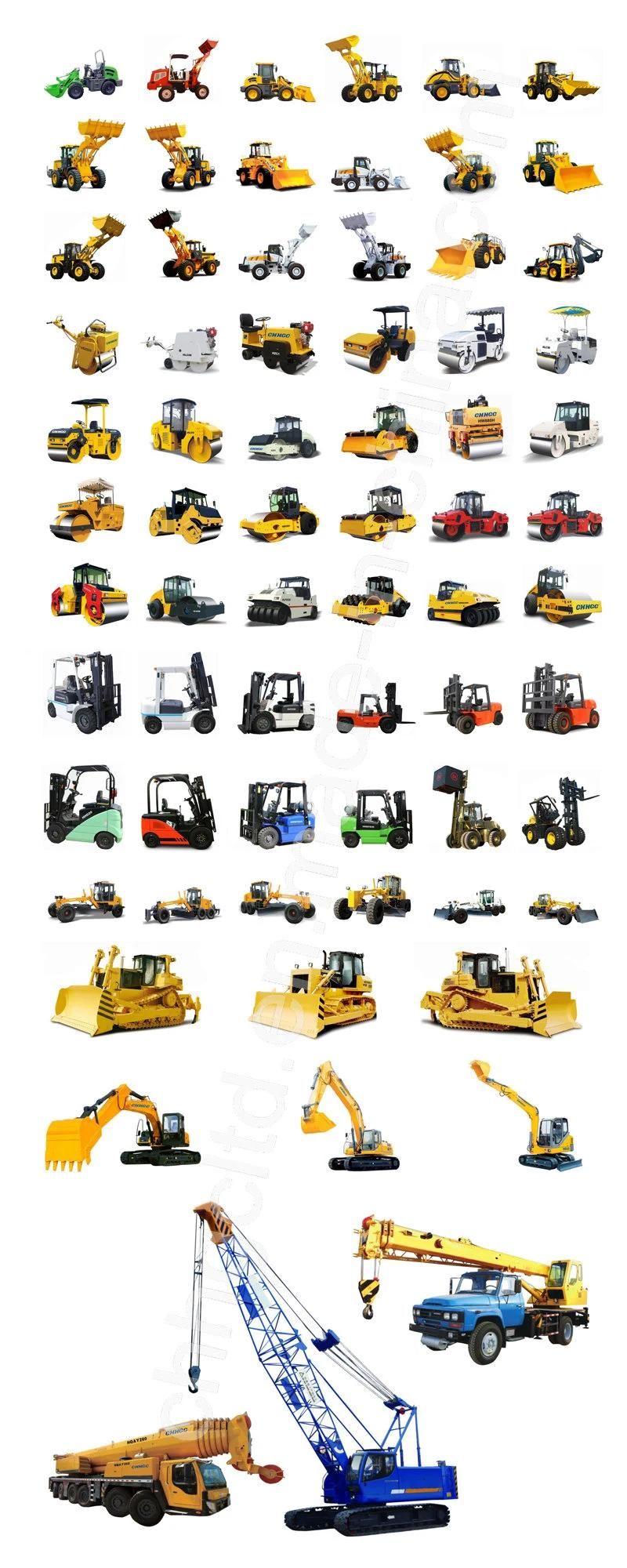

Our Products

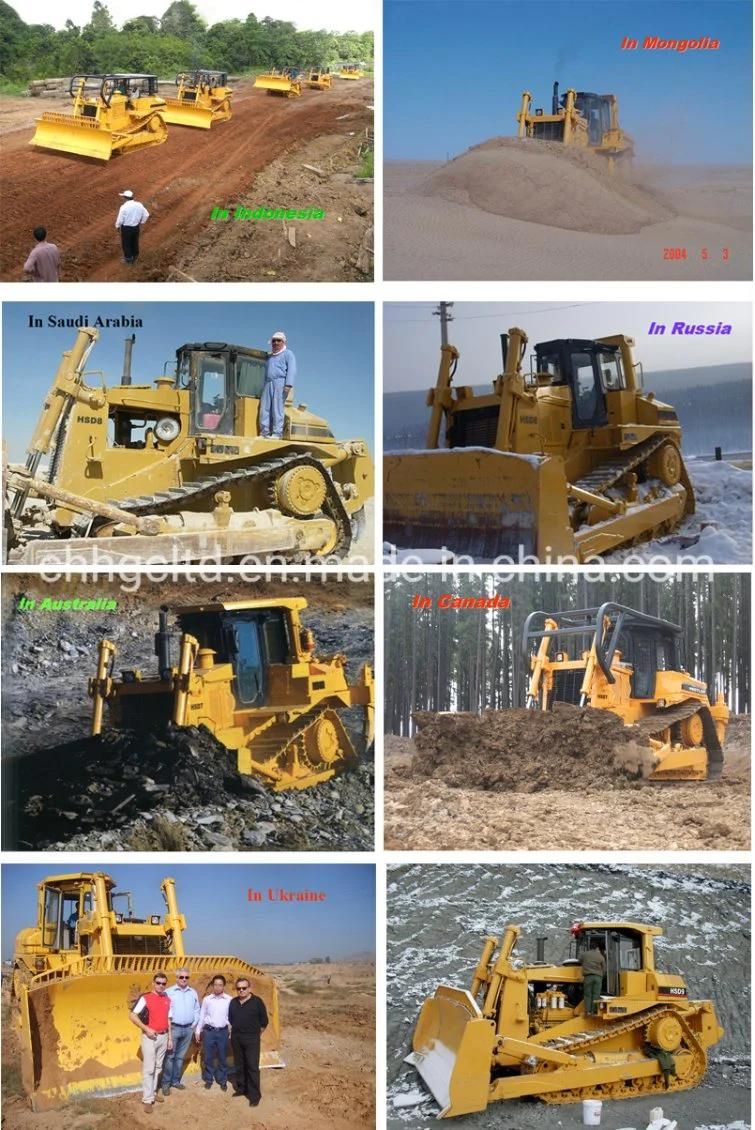

Actual Site

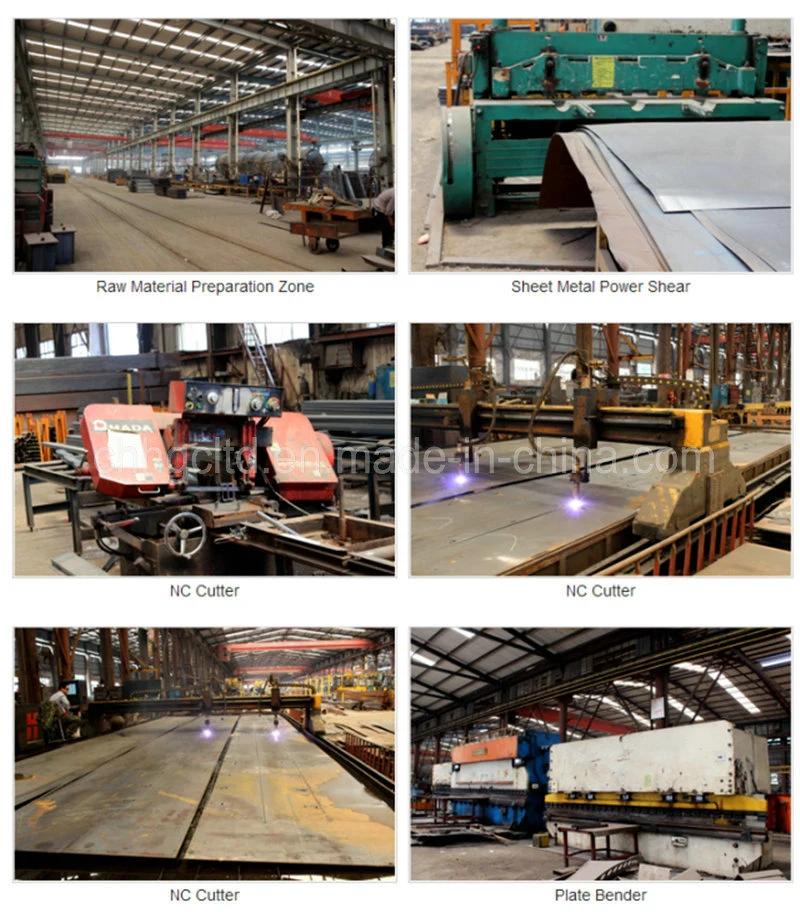

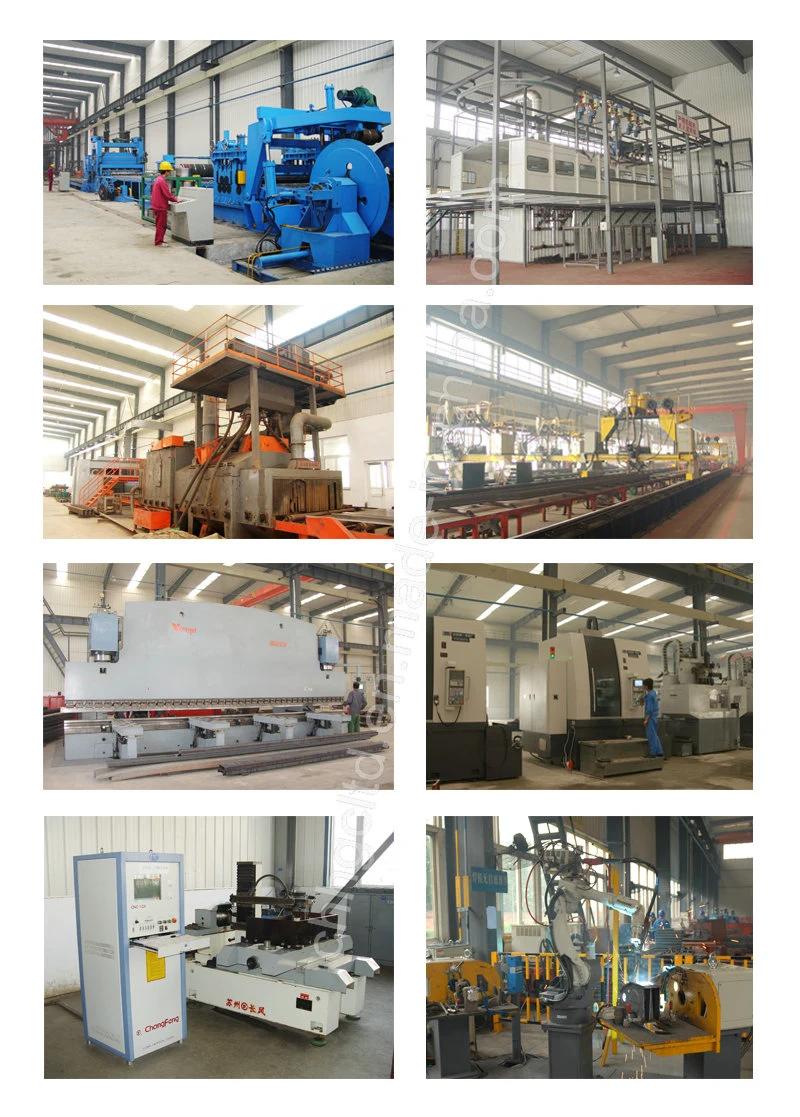

Workshop
FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
