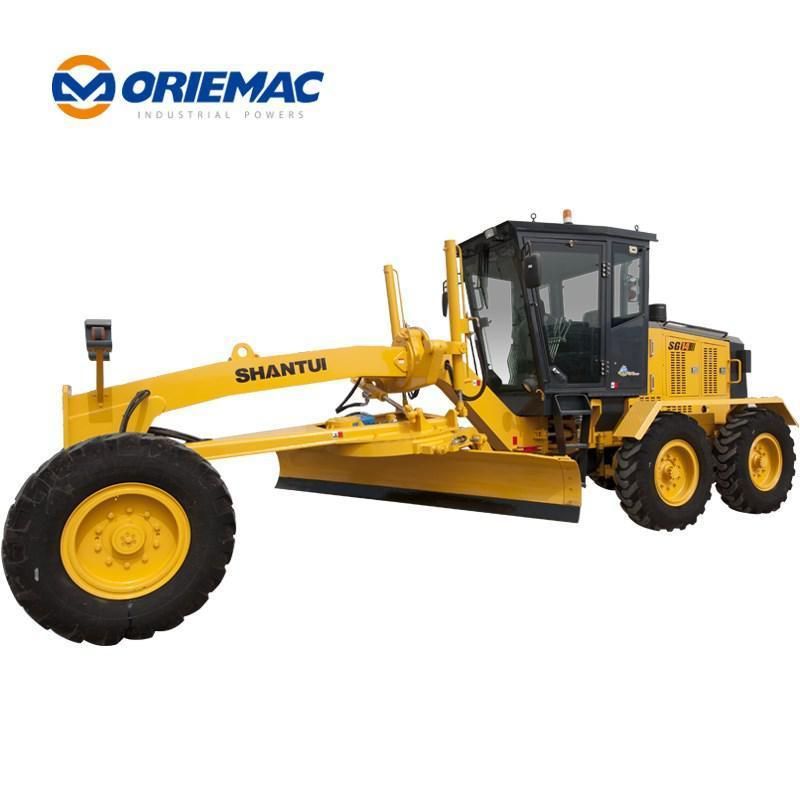

Shantui Road Grader 160HP Small Motor Grader Sg14 Sg16-3

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Certification：TUV, ISO
  • Condition：New
  • Application：Railway, Mine, Highway
  • Transmission：Hydraulic

Base Info

  • Model NO.：SG14 SG16-3
  • Walking Mode：Wheeled
  • Type：Small Grader
  • Engine Model：Dongfeng Cum-Mins 6BTA5.9
  • Rated Power：230HP
  • Engine Power：74~147kw
  • Scraper Type：Pull Scraper
  • Transport Package：Nude Package
  • Specification：ISO, CE
  • Trademark：shantui
  • Origin：China(Mainland), Jiangsu
  • Production Capacity：1000 Units, Year

Description


Basic specificationEngine modelCUMMINS 6CTA8.3-C230Rated power/speed172kW/2200rpm Dimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kgPerformance specificationTravelling speed ,forward5811192338 km/hTravelling speed ,reverse51123 km/hTractive force(f=0.75)90KNMax. gradeability30%Tire inflation pressure260 kPaWorking hydraulic pressure18 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°_70°Circle reversing rotation360°Moldboard width X height4270×610mm Shantui Road Grader 160HP Small Motor Grader Sg14 Sg16-3
