• Model NO.：sd22w
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Operating Weight：23600
• Rated Horsepower：175kw
• Ground Pressure：66kpa
• Track Gauge：2000mm
• Shoe Width：560mm
• Transport Package：Nude
• Specification：5495x3725x3402
• Trademark：SHANTUI
• Origin：China
• Production Capacity：350units,Month

PRODUCTSD22W(ROCK)PERFORMANCE PARAMETERSOperatiing   Weight (kg)23600Rated horsepower (kw/hp)175/1800Minimum turning radius (mm)3300Ground pressure (kpa)66ENGINEModelChongqing   cummins NT855-C280S10EmissionChina   ITypeIn-line,direct   injection,water cooled,4-cycles,turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×140×152Piston displacement (L)14Horsepower/rpm (kw/rpm)175/1800Maximum torque (N.m/r/min)1030/1250DIMENSIONSLength(mm)5495Width(mm)3725Height(mm)3402TRAVELING PERFORMANCEForward/Reverse(km/h)F1:0-3.6   F2:0-6.5 F3:0-11.2 R1:0-4.3  R2:0-7.7   R3:0-13.2Gradeability(deg)30Clearance(mm)405TRANSMISSIONTorque   convertor 3-element, single stage, 1-phaseGear boxPlanetary   gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral   bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet   multiple disc,coned disc spring loaded, hydraulically actuated, hand   operated,interconnected with steering brakeBrake Wet, contracting band,foot operated with   hydraulic boosterFinal driver spur gear,double reduction ,splash   lubricationUNDERCARRIAGESuspensionSwing   type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)2000Shoe width (mm)560Track length on ground (mm)2730Number of shoes (each side)38Pitch (mm)216Carrier rollers (each side)2Track rollers (each side)6WORKING HYDRAULIC SYSTEMPressure   (MPa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)φ120 Bore of blade tilt cylinder (mm)φ200 TANK CAPACITYFuel   tank capacity (L)450Working hydraulic tank capacity (L)110WORKING EQUIPMENTBlade   width (mm)3725Blade height (mm)1315Blade capacity (m³)6.4Max.Drop below ground of blade1210Lift height of blade540Type of ripperSingle   shank/3 shanksMaximum digging depth of ripper (mm)Single   695 Three 666Maximum lifting height of ripper (mm)Single   515 Three 555

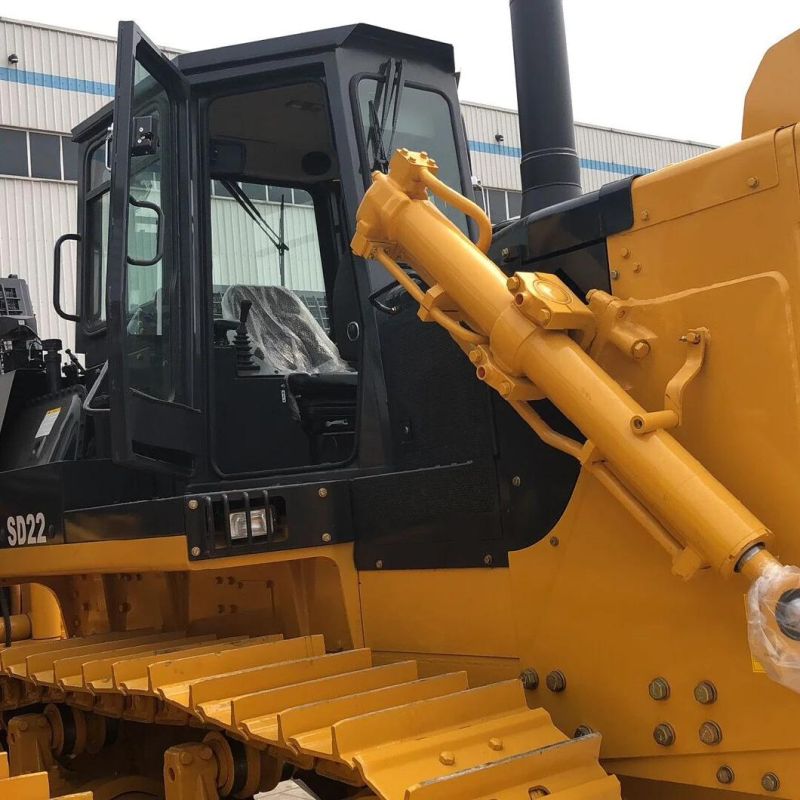

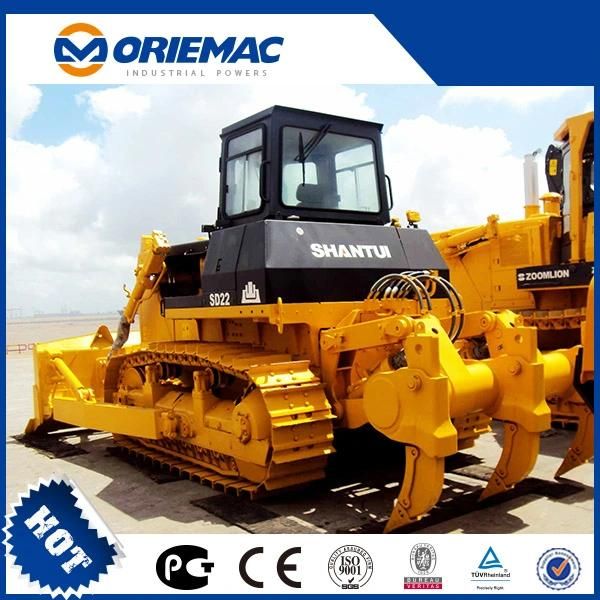

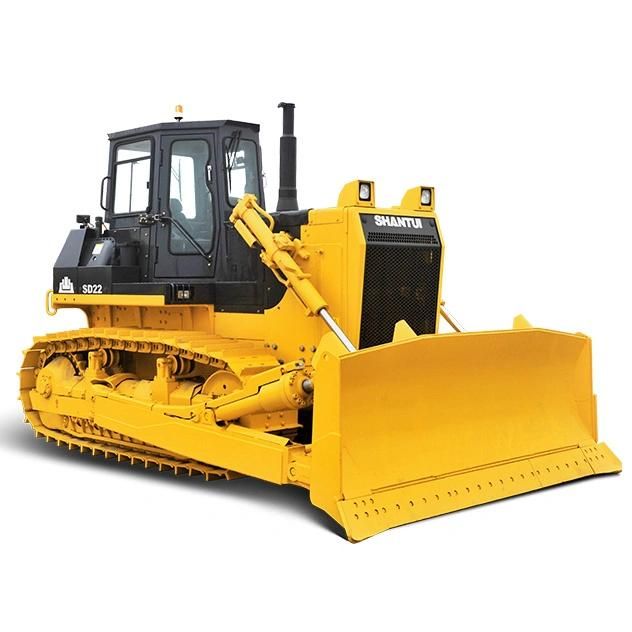

Product Show
