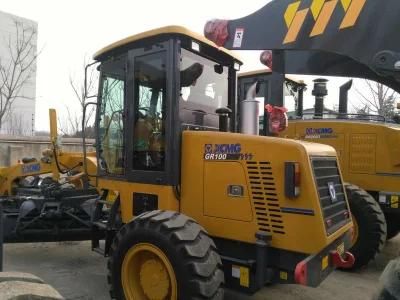

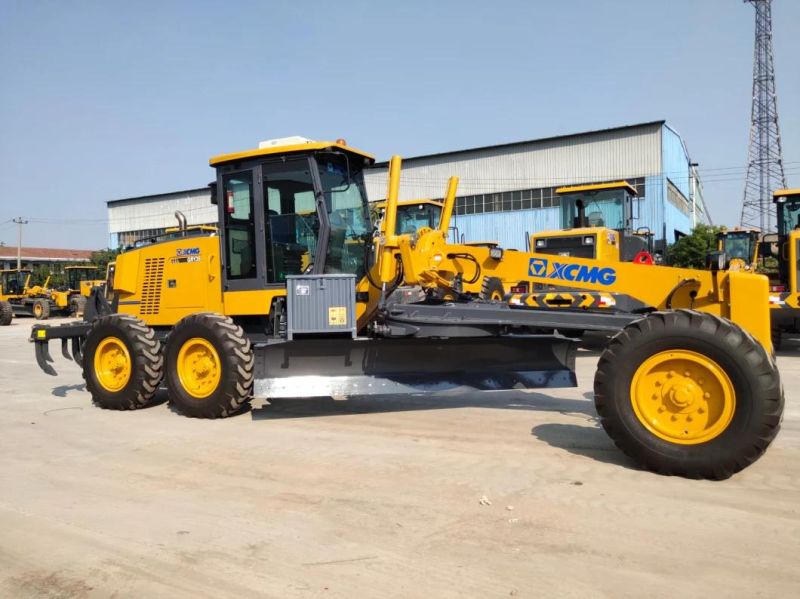

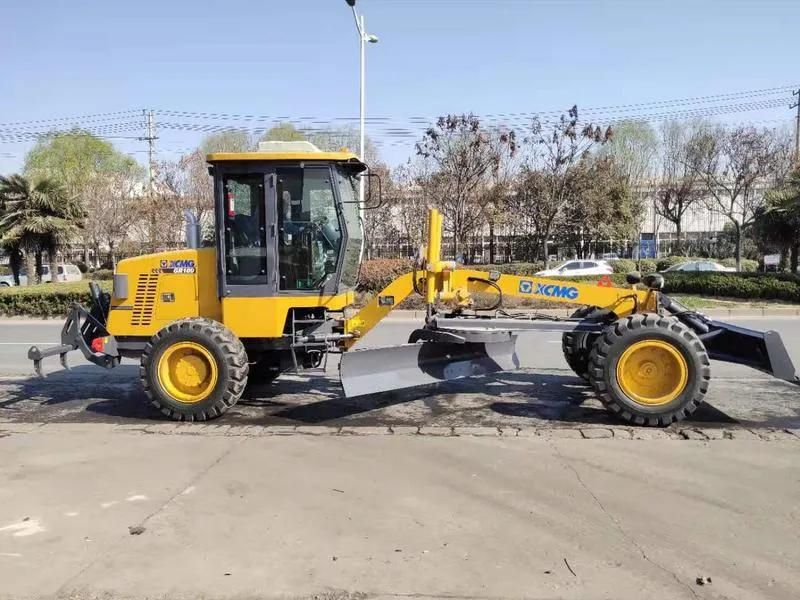

Tractor Grader 100HP Small Motor Grader Price Gr100 Gr135 Gr165

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Certification：TUV, UL, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic

Base Info

  • Model NO.：GR100
  • Walking Mode：Wheeled
  • Type：Small Grader
  • Model No：Gr100
  • Weight：7000kg
  • Dimension(L*W*H)：6880*2375*3150mm
  • Engine Model：4bt3.9
  • Rated Power：75kw
  • Gradeability：20%
  • Transport Package：Nude Package
  • Specification：ISO, CE
  • Trademark：ORIEMAC
  • Origin：China(Mainland), Jiangsu
  • Production Capacity：1000 Units, Year

Description

Performance specificationTravelling speed ,forward5,10,20,39km/hTravelling speed ,reverse8,25km/hTractive force(f=0.75)41.6KNMax. gradeability20%Tire inflation pressure350KPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box Frame articulation angle±27°Min. turning radius using articulation5.9mBiadeMaximum lift above ground300mmMaximum depth of cutting350mmMaximum blade position angle45°Blade cutting angle28°_70°Circle reversing rotation120°Moldboard width X height3048×500mm
